R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany made variable piston pump

R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany made variable piston pump
R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany made variable piston pump

Large Image :  R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany made variable piston pump

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: R902520808 AA10VS0140DRS/32R-VPB22U00E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany made variable piston pump

Description
Pressure Setting Range​: Approx. 20 – 280 Bar (Remote Via Port X) Control Type​: DRS - Pressure Control With Remote Adjustment​
Rotation Direction​: Clockwise (R)​ (viewed From Shaft End) Mounting Flange​: ISO 3019-2 (4-bolt, Metric)
Seal Material​: FKM (Viton)​ (Code: V)
Highlight:

Rexroth variable piston pump

,

Germany made piston pump

,

AA10VS0140DRS piston pump

R902520808 AA10VS0140DRS/32R-VPB22U00E Rexroth Germany Made Variable Piston Pump
Product Overview
The R902520808 AA10VSO140DRS/32R-VPB22U00E is a high-performance variable displacement axial piston pump from Rexroth, designed for demanding industrial applications with precise pressure control capabilities.
Technical Specifications
Parameter Category Parameter Specification / Description
General Information Manufacturer / Model Rexroth, Type A10VSO Series 32
Part Number R902520808
Pump Type Variable Displacement Axial Piston Pump (Swashplate Design)
Circuit Type Open Circuit
Hydraulic Performance Nominal Displacement 140 cm³/rev
Nominal Pressure (Continuous) 280 bar
Peak Pressure (Intermittent) 350 bar
Control Type DRS - Pressure Control with Remote Adjustment
Pressure Setting Range Approx. 20 - 280 bar (Remote via port X)
Mechanical Interface Shaft Type Parallel Key Shaft (DIN 6885)
Rotation Direction Clockwise (R) (viewed from shaft end)
Mounting Flange ISO 3019-2 (4-bolt, metric)
Port Configuration VPB22: SAE flanged ports, metric screws, 22 series port plate
Sealing & Media Seal Material FKM (Viton) (Code: V)
Hydraulic Fluid Mineral oils (HL, HLP), certain HF fluids
Weight Approx. 73 kg
Product Image

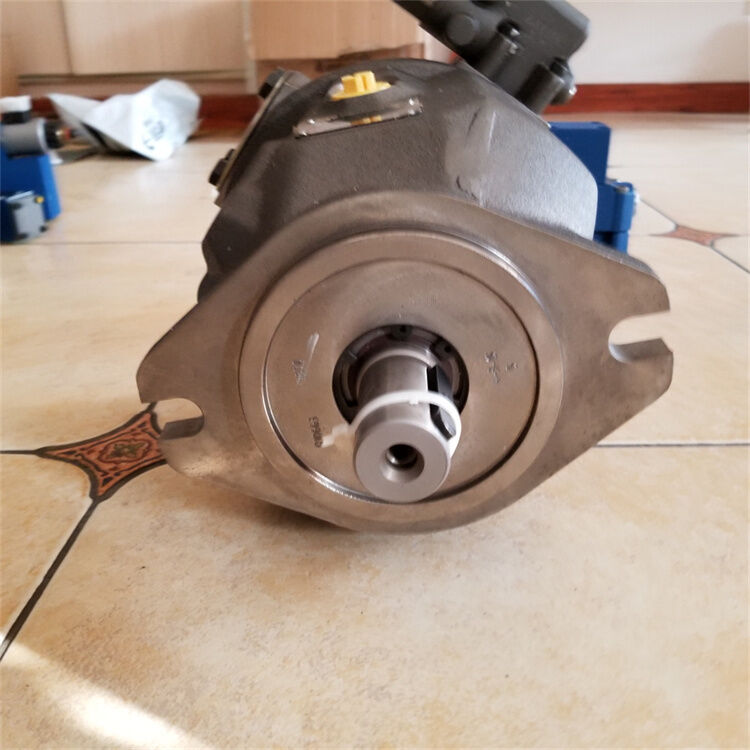

Rexroth AA10VSO140DRS variable piston pump - industrial hydraulic pump unit
Related Part Numbers
R902460926 A A10VSO100 DFLR/31R-VPA12N00
R910907813 A A10VSO100 DFR /31L-PPA12N00
R910917313 A A10VSO100 DFR /31R-PPA12K01
R910998331 A A10VSO100 DFR /31R-PPA12K07
R910942637 A A10VSO100 DFR /31R-PPA12K27
R902417327 A A10VSO100 DFR /31R-PPA12KB4
R902416469 A A10VSO100 DFR /31R-PPA12KB5
R910939643 A A10VSO100 DFR /31R-PPA12N00
R910991002 A A10VSO100 DFR /31R-PSA12N00
R910920969 A A10VSO100 DFR /31R-VPA12N00
R910986270 A A10VSO100 DFR1/31L-PPA12KB4 -SO 32
R910911394 A A10VSO100 DFR1/31R-PPA12K01
R910927083 A A10VSO100 DFR1/31R-PPA12K02
R910983124 A A10VSO100 DFR1/31R-PPA12KB3
R910984741 A A10VSO100 DFR1/31R-PPA12KB4
R910985609 A A10VSO100 DFR1/31R-PPA12KB5
R902403231 A A10VSO100 DFR1/31R-PPA12KB6
R910922744 A A10VSO100 DFR1/31R-PPA12N00
R902418759 A A10VSO100 DFR1/31R-PSA12KB4
R910971805 A A10VSO100 DFR1/31R-PSA12KB6
R910949826 A A10VSO100 DFR1/31R-PSA12N00
R910922681 A A10VSO100 DR /31L-VPA12N00
R910968839 A A10VSO100 DR /31R-PPA12K04
R910916809 A A10VSO100 DR /31R-VPA12N00
R910943447 A A10VSO100 DRG /31R-PPA12N00
R902420121 A A10VSO100 DRG /31R-VPA12K25
R910930899 A A10VSO100 DRG /31R-VPA12N00
R902448357 A A10VSO100 DRG /32R-VPB12N00
R902454561 A A10VSO100 DRS/32R-VPB22U99
Frequently Asked Questions
Q1: What is the key difference between DR and DRS control?
Both are pressure controls (constant pressure). The DR control is adjusted mechanically via a screw on the pump cover. The DRS control allows for remote hydraulic adjustment via an external pilot pressure signal connected to port X. This lets you change the pump's pressure setting remotely using a proportional valve or a manual relief valve.
Q2: How do I set up the remote pressure control (DRS)?
Connect an external pressure source (e.g., from a hand pump or a proportional reducing valve) to port X on the pump control cover. The pressure at port X will determine the pump's cutoff pressure. Ensure the control pressure line is clean and free of leaks to avoid erratic pump behavior.
Q3: What are the port connections (VPB22)?
VPB22 indicates SAE flanged ports with metric screws and a 22 series port plate. This pump has three main ports:
  • S (Suction): Connect to reservoir
  • P (Pressure): Connect to system
  • L (Case Drain): One of the two drain ports must be connected directly to the tank with zero backpressure; the other must be plugged
Q4: Can I add a gear pump to the back of this unit?
No. The code U00 indicates a standard shaft with no through-drive capability. The shaft does not protrude from the rear housing to drive an auxiliary pump. If you need a multi-pump configuration, you must select a version with a through-drive code (e.g., K01, K02).
Q5: Why are there two case drain ports?
The pump has two case drain ports for installation flexibility. You must connect only one of them directly to the tank (reservoir). The second port must be plugged. The drain line must have zero backpressure (max 0.5 bar) to prevent damage to the shaft seal.
Q6: What is the recommended operating speed?
The standard nominal speed for the A10VSO 140 size is 1500 - 1800 rpm. While the maximum speed may be listed as 2050-2100 rpm, running at higher speeds requires excellent suction conditions (pressurized inlet) and may reduce service life.
Q7: What does the "V" in the code mean for seals?
V stands for FKM (Viton) seals. This is suitable for a wider range of fluids, including certain biodegradable oils (HEES) and high-temperature applications. If you are using standard mineral oil, NBR (code 'P') is also acceptable, but 'V' offers better chemical resistance.
