0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional hydraulic valve

0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional hydraulic valve
0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional hydraulic valve

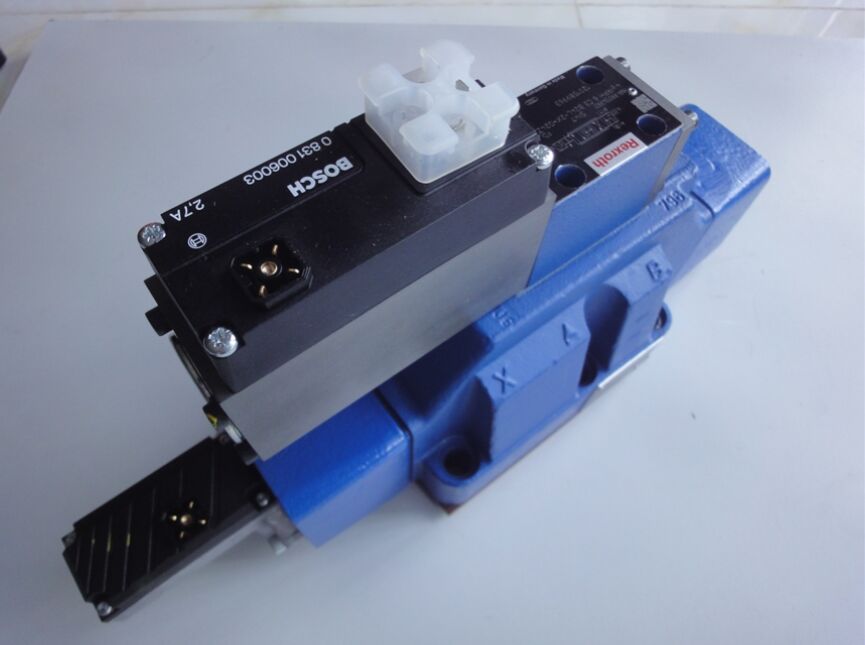

Large Image :  0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional hydraulic valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 0811404405 4WRL25V370M-3X/G24Z4/M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional hydraulic valve

Description
Weight​: 18.3 Kg Protection Rating​: IP65 (when Electrical Plug Connected)
Ambient Temperature​: -20°C To +60°C Viscosity Range​: 10 To 800 Mm²/s (recommended 20–100 Mm²/s)
Media Temperature​: -20°C To +80°C​

Parameter

Specification

Order Number​

0811404405​

Model​

4WRL25V370M-3X/G24Z4/M

Type​

Pilot-operated, high-response​ proportional directional valve (servo performance)

Function​

4/3-way​ (4 ports, 3 positions)

Nominal Size​

NG25​ (CETOP 8, Size 25)

Max. Operating Pressure​

P, A, B, X: 350 bar
T port (return): 210 bar​

Rated Flow​

370 L/min​ (at Δp = 10 bar across the valve)

Flow Characteristic​

Progressive (M)​ with fine metering notch for precise low-flow control

Pilot Stage​

NG6 servo solenoid valve with LVDT feedback

Electronics​

Integrated electronics​ (built-in trigger electronics)

Supply Voltage​

24V DC​ (G24)

Control Signal​

±10 V DC​ (standard for servo-proportional valves)

Feedback Signal​

Spool position feedback (LVDT)​

Manual Override​

Yes​ (M = concealed manual override)

Seal Material​

NBR (M)​

Electrical Connector​

Plug with cable socket (Z4)​ per DIN 43560-AM2

Mounting Interface​

ISO 4401-08-07-0-94 (CETOP 8, NG25 subplate)

Suitable Media​

Mineral oils (HL, HLP), HFC, HFD, biodegradable oils

Media Temperature​

-20°C to +80°C​

Viscosity Range​

10 to 800 mm²/s (recommended 20–100 mm²/s)

Ambient Temperature​

-20°C to +60°C

Protection Rating​

IP65 (when electrical plug connected)

Weight​

Approx. 18.3 kg​

0811404405 4WRL25V370M-3X/G24Z4/M German Rexroth proportional h</p> <table style= 0811404280 4WRLE16V1-200M-3X/G24K0/A1M 0811404281 4WRLE16V1-120M-3X/G24ETK0/A1M 0811404282 4WRLE16V1-200M-3X/G24ETK0/A1M 0811404285 4WRLE16V120M-3X/G24ETK0/A1M-857 0811404286 4WRLE16Q5-200M-3X/G24K0/A1M-853 0811404287 4WRLE16V200M-3X/G24K0/A1M-834 0811404288 4WRLE16V200M-3X/G24ETK0/A1M-857 0811404290 4WRVE16V120M-2X/G24K0/B5M 0811404291 4WRVE16V200M-2X/G24K0/B5M 0811404294 4WRVE16V1-120M-2X/G24K0/B5M 0811404295 4WRVE16V1-200M-2X/G24K0/B5M 0811404300 4WRLE16W180SJ-3X/G24EK0/A1M 0811404302 4WRLE16W180SJ-3X/G24K0/A1WX02M-752 0811404303 4WRLE16WZ180SJ-3X/G24EK0/A1M-561 0811404304 4WRLE16WZ180SJ-3X/G24ETK0/A1WX02M-749 0811404305 4WRLE16EZ180SJ-3X/G24K0/A1M 0811404306 4WRLE16E1Z180SJ-3X/G24K0/A1M 0811404307 4WRLE16WZ180SJ-3X/G24K0/A1M 0811404308 4WRLE16W1Z180SJ-3X/G24K0/A1M 0811404308 4WRLE16W1Z180SJ-3X/G24K0/A1M 0811404311 4WRLE16E180SJ-3X/G24K0/A1M-762 0811404312 4WRLE16E1-180SJ-3X/G24K0/A1M-762 0811404315 4WRLE16W1-180SJ-3X/G24EK0/A1WX02M-744 0811404316 4WRL16WZ180S-3X/G24EZ4/WX02M-756 0811404317 4WRLE16W2-180SJ-3X/G24K0/A1M 0811404318 4WRLE16EZ180SJ-3X/G24TK0/A1M 0811404319 4WRLE16EZ180SJ-3X/G24ETK0/A1M 0811404320 4WRLE16W5-180SJ-3X/G24K0/A1M 0811404321 4WRLE16W1-180SJ-3X/G24EK0/A1WX02M-756 0811404322 4WRLE16WZ180SJ-3X/G24EK0/A1M-758 0811404324 4WRLE16WZ180SJ-3X/G24K0/A1M-772 0811404325 4WRLE16WA110SJ-3X/G24K0/A1M 0811404326 4WRLE16W180SJ-3X/G24EK0/A1WX02M-745 0811404327 4WRLE16W1Z180SJ-3X/G24ETK0/A1M 0811404328 4WRLE16W4Z180SJ-3X/G24ETK0/A1M 0811404329 4WRLE16WA180SJ-3X/G24K0/A1M 0811404331 4WRLE16EZ180SJ-3X/G24EK0/A1M 0811404332 4WRLE16W4Z180SJ-3X/G24ETK0/A1WG02M 0811404337 4WRLE16WZ180SJ-3X/G24EK0/A1M 0811404342 4WRLE16Q3-200M-3X/G24K0/A1M 0811404344 4WRLE16Q3-200M-3X/G24K0/A1WG02M 0811404345 4WRVE16V1-200M-2X/G24K0/B5M-869 0811404346 4WRLE16V200M-3X/G24K0/A1M-857 0811404347 4WRVE16V1-120M-2X/G24K0/B5M-869 0811404350 4WRPEH6C4B04L-2X/G24K0/F1M 0811404351 4WRPEH6C4B12L-2X/G24K0/F1M 0811404352 4WRPEH6C4B24L-2X/G24K0/F1M 0811404353 4WRPEH6C4B40L-2X/G24K0/F1M 0811404354 4WRPEH6C1B40L-2X/G24K0/F1M

FAQ:

  1. Pilot-Operated Design (High Flow)

    Unlike the direct-operated 4WRPE valves, the 4WRL series uses a two-stage design. A small NG6 pilot valve controls the main stage, allowing for high flow rates (370 L/min) with low hysteresis. This design is ideal for systems requiring both high power and high precision.

  2. Control & Feedback

    The valve features integrated trigger electronics​ (indicated by the absence of /K0). It accepts a standard ±10 V DC​ command signal and provides LVDT spool position feedback​ for closed-loop control. The /Z4​ suffix confirms it comes with a ready-to-use plug and socket connection.

  3. Flow Characteristic (370M)

    The M characteristic​ provides a progressive flow curve. At small spool openings, it offers fine metering for precise slow-speed control, while at larger openings, it delivers high flow for rapid actuator movement.

  4. Fail-Safe Behavior

    This is a single-side actuated​ valve with spring return. In the event of power failure or signal loss, the spring returns the spool to a defined 4/4 fail-safe position​ (typically all ports blocked).

  5. Critical Installation Notes

    • Pilot Oil Supply:​ As a pilot-operated valve, it requires a clean, stable pilot oil supply (port X). The minimum pilot pressure is typically 20 bar.

    • Cleanliness:​ Maintain high oil cleanliness (recommended ISO 4406 18/16/13 or better) due to the sensitive servo-quality pilot stage.

    • Mounting:​ Use the correct ISO 4401-08 (NG25) subplate to ensure proper port alignment and sealing.
