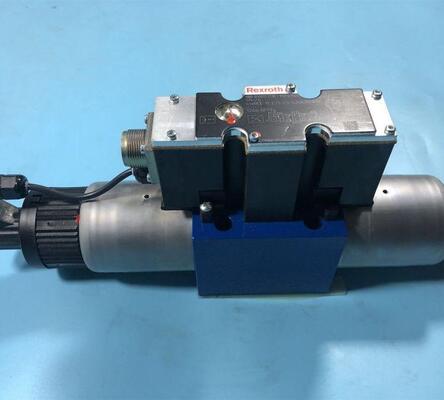

R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve

R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve
R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve

Large Image :  R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: R900948360 4WREE10W75-2X/G24K31/F1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve

Description
Electrical Connector​: 6-pin + PE Plug (DIN EN 175201-804, K31) Ports (P, A, B, T)​: 4x Threaded (NG10 Standard)
Media Temperature​: -20°C To +80°C​ (optimal 40–50°C) Viscosity Range​: 20 To 380 Mm²/s
Weight​: Approx. 6.26 Kg​

Parameter

Specification

Model / Order No.​

4WREE10W75-2X/G24K31/F1V (R900948360)

Type​

Direct-operated proportional directional valve with LVDT spool position feedback​

Function​

4/3-way (3 positions, 4 ports), spring-centered

Nominal Size​

NG10​ (CETOP 5)

Max. Operating Pressure​

P, A, B: 315 bar; T port: 210 bar​

Rated Flow​

75 L/min​ (at Δp = 10 bar)

Max. Flow​

Approx. 180 L/min​

Spool Type​

W (Overlap spool)​

Spool Characteristic​

Progressive (non-linear)

Electronics​

Integrated On-Board Electronics (OBE)​

Supply Voltage​

24V DC​ (21...35 VDC)

Control Signal​

4–20 mA​ (Analog current input, /F1​ suffix)

Feedback​

Yes (LVDT spool position sensor)​

Electrical Connector​

6-pin + PE plug (DIN EN 175201-804, K31)

Mounting Interface​

ISO 4401-05-04-0-05 (CETOP 5 subplate)

Ports (P, A, B, T)​

4x threaded (NG10 standard)

Manual Override​

No​

Seal Material​

FKM (Viton)​

Suitable Media​

Mineral oils (HL, HLP), HETG, HEES, HEPG, HFDU, HFDR

Media Temperature​

-20°C to +80°C​ (optimal 40–50°C)

Viscosity Range​

20 to 380 mm²/s

Weight​

Approx. 6.26 kg​

R900948360 4WREE10W75-2X/G24K31/F1V Proportional valve German Rexroth hydraulic valve 0

R900726605 4WRE10E1-25-2X/G24K4/V
R900954103 4WRE10E1-50-2X/G24K4/V
R900954104 4WRE10E1-75-2X/G24K4/V
R902435414 4WRE10E25-2X/24Z4/V-93
R900954100 4WRE10E25-2X/G24K4/V
R902650773 4WRE10E25-2X/G24K4V-93
R901048036 4WRE10E3-75-2X/G24K4/V
R900954101 4WRE10E50-2X/G24K4/V
R900954102 4WRE10E75-2X/G24K4/V
R901039213 4WRE10EA25-2X/G24K4/V
R900752971 4WRE10EA50-2X/G24K4/V
R900969351 4WRE10EA75-2X/G24K4/V
R900703186 4WRE10EB50-2X/G24K4/V
R901151585 4WRE10V1-25-2X/G24K4/V
R901415922 4WRE10V1-50-2X/G24K4/M
R901017446 4WRE10V1-50-2X/G24K4/V
R901414444 4WRE10V1-75-2X/G24K4/V
R900954115 4WRE10V25-2X/G24K4/V
R900954116 4WRE10V50-2X/G24K4/V
R901236220 4WRE10V50-2X=G24K4/V
R900954117 4WRE10V75-2X/G24K4/V
R900974152 4WRE10W1-25-2X/G24K4/V
R900954113 4WRE10W1-50-2X/G24K4/V
R900954114 4WRE10W1-75-2X/G24K4/V
R900954105 4WRE10W25-2X/G24K4/V
R900608420 4WRE10W3-75-2X/G24K4/V
R900954106 4WRE10W50-2X/G24K4/V
R900954107 4WRE10W75-2X/G24K4/V
R901436393 4WRE10WA25-2X/G24K4/V
R901086329 4WRE10WA50-2X/G24K4/V
R901030897 4WRE10WA75-2X/G24K4/V
R901339372 4WRE10WB75-2X/G24K4/V
R901031274 4WRE6E04-2X/G24K4/V
R900933478 4WRE6E08-2X/G24K4/V
R900968149 4WRE6E1-08-2X/G24K4/V
R900954093 4WRE6E1-16-2X/G24K4/V
R900954094 4WRE6E1-32-2X/G24K4/V
R900954092 4WRE6E16-2X/G24K4/V
R900926366 4WRE6E32-2X/G24K4/V
R900783105 4WRE6EA08-2X/G24K4/V
R900720198 4WRE6EA16-2X/G24K4/V
R900752799 4WRE6EA32-2X/G24K4/V
R901364823 4WRE6Q2-08-2X/G24K4/V
R900246943 4WRE6V04-2X/G24K4/V
R900954097 4WRE6V08-2X/G24K4/V
R902650793 4WRE6V08-2X/G24K4V-822
R900966805 4WRE6V1-16-2X/G24K4/V
R901403868 4WRE6V16-2X/G24K4/M
R900954098 4WRE6V16-2X/G24K4/V
R902651062 4WRE6V16-2X/G24K4/V-916
R902650794 4WRE6V16-2X/G24K4V-822
R900954099 4WRE6V32-2X/G24K4/V
R901246418 4WRE6W04-2X/G24K4/V
R900941264 4WRE6W08-2X/G24K4/V
R900953729 4WRE6W1-08-2X/G24K4/V
R900954095 4WRE6W1-16-2X/G24K4/V
R901236264 4WRE6W1-16-2X=G24K4/V
R900954096 4WRE6W1-32-2X/G24K4/V
R900775379 4WRE6W1-32-2X/G24K4/V=LB
R900944121 4WRE6W16-2X/G24K4/V
R900773304 4WRE6W16-2X/G24K4/V=LB
R900933480 4WRE6W32-2X/G24K4/V
R901433171 4WRE6W9-32-2X/G24K4/V
R901022178 4WRE6WA08-2X/G24K4/V
R900965434 4WRE6WA16-2X/G24K4/V
R901300969 4WRE6WA16-2X/G24K4/V-303

Key Differences & Selection Guide

  1. Q: What is the difference between the "W" and "E" spools?

    A:​ The W spool (overlap)​ has a small dead zone at the center, providing smooth starts/stops and preventing actuator creep. The E spool (zero overlap)​ offers a more direct, linear response and is better for precise flow control.

  2. Q: Why choose the /F1 version over /A1?

    A:​ The /F1​ suffix indicates a 4–20 mA current input, which is more resistant to electrical noise over long cable runs compared to the /A1​ version (±10V voltage input). This makes it suitable for industrial environments with significant EMI.

  3. Q: Does this valve require an external amplifier?

    A:​ No.​ The "E" in 4WREE and the /G24K31​ suffix confirm Integrated On-Board Electronics (OBE). It operates directly with a 24V DC power supply and the 4–20 mA command signal.

  4. Q: Is this valve suitable for closed-loop speed control?

    A:​ Yes.​ As part of the 4WREE series, it features LVDT feedback​ that provides internal closed-loop control of the spool position, ensuring high repeatability and accuracy in speed control applications.

  5. Q: What is the critical installation note?

    A:​ Maintain the T-port backpressure below 210 bar. Due to the precision spool and LVDT, ensure high oil cleanliness (recommended NAS 1638 Class 8 or better) to prevent damage to the tight tolerances.
