R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve

R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve
R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve

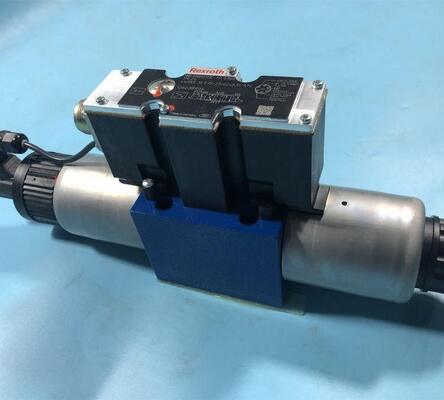

Large Image :  R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 4WREE10W75-2X/G24K31/A1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100
Contact Now

R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve

Description
Nominal Size​: NG10​ (CETOP 5) Max. Operating Pressure​: P, A, B: 315 Bar; T Port: 210 Bar​
Rated Flow​: 75 L/min​ (at Δp = 10 Bar) Max. Flow​: Approx. 180 L/min​
Supply Voltage​: 24V DC​ (19.4...35 VDC)

Parameter

Specification

Model / Order No.​

4WREE10W75-2X/G24K31/A1V (R900927233)

Type​

Direct-operated proportional directional valve with LVDT spool position feedback​

Function​

4/3-way (3 positions, 4 ports), spring-centered

Nominal Size​

NG10​ (CETOP 5)

Max. Operating Pressure​

P, A, B: 315 bar; T port: 210 bar​

Rated Flow​

75 L/min​ (at Δp = 10 bar)

Max. Flow​

Approx. 180 L/min​

Spool Type​

W (Overlap spool)​

Spool Characteristic​

Progressive (non-linear)

Electronics​

Integrated On-Board Electronics (OBE)​

Supply Voltage​

24V DC​ (19.4...35 VDC)

Control Signal​

±10 V DC​ (Analog voltage input, /A1​ suffix)

Feedback​

Yes (LVDT spool position sensor)​

Electrical Connector​

6-pin + PE plug (DIN EN 175201-804, K31)

Mounting Interface​

ISO 4401-05-04-0-05 (CETOP 5 subplate)

Ports (P, A, B, T)​

4x threaded (NG10 standard)

Manual Override​

No​

Seal Material​

FKM (Viton)​

Suitable Media​

Mineral oils (HL, HLP), HETG, HEES, HEPG, HFDU, HFDR

Media Temperature​

-20°C to +80°C​ (optimal 40–50°C)

Viscosity Range​

10 to 400 mm²/s (recommended 20–80 mm²/s)

Weight​

Approx. 6.26 kg​

R900927233 4WREE10W75-2X/G24K31/A1V German original Rexroth proportional valve 0

R900954107 4WRE10W75-2X/G24K4/V
R900954083 4WRAE10E60-2X/G24K31/A1V
R900949807 4WRZE25W8-325-7X/6EG24N9ETK31/F1D3V
R900945912 4WRZ25W8-325-7X/6EG24N9ETK4/D3V
R900941258 4WRAE6W1-30-2X/G24N9K31/F1V
R900912156 4WREE6E08-2X/G24K31/A1V
R900902097 4WRA10E60-2X/G24N9K4/V
R900749737 4WRKE16W6-125P-3X/6EG24K31/F1D3M
R900710530 4WRAE10W60-2X/G24K31/F1V
R900704234 4WRKE10E100L-3X/6EG24EK31/A1D3M
R901382357 4WRPEH6C3B25P-3X/M/24A1
R901382315 4WRPEH6C3B40L-3X/M/24A1
R900954061 4WRA10E60-2X/G24K4/V
R900929318 4WRAE10E60-2X/G24N9K31/F1V
R900902940 4WRA6E30-2X/G24N9K4/V
R900902095 4WRA6W30-2X/G24N9K4/V
R900954065 4WRA10-W60-2X/G24K4/V
R900920557 4WRA6E15-2X/G24N9K4/V
R900904439 4WRA6E30-2X/G24K4/V
R900902940 4WRA6E30-2X/G24N9K4/V
R900762072 4WRAE6W30-2X/G24K31/F1V
R900711868 4WRAE10W30-2X/G24K31/F1V
R900575765 4WRA10W1-60-2X/G24N9K4/V
R901015613 4WRAE6E30-2X/G24K31/F1V
R900954407 4WRA6W30-2X/G24K4/V
R900913443 4WRA6W15-2X/G24N9K4/V
R900954089 4WRAE10W1-60-2X/G24K31/A1V
R900920055 4WRAE10W60-2X/G24N9K31/F1V
R900738355 4WRAE6E1-15-2X/G24K31/F1V
R900954407 4WRA6W30-2X/G24K4/V
0811404803 4WRPEH10C4B100L2X/G24K0/A1M
R900976919 4WRAE6W15-2X/G24K31/F1V
R900974817 4WRAE6W1-30-23/G24K31/F1V
R900965674 4WRAE10E60-2X/G24K31/F1V
R900954065 4WRA10W60-2X/G24K4/V
R900936006 4WRAE10W1-60-2X/G24N9K31/A1V
R901067874 4WRKE25R3-350L-32/6EG24ETK31/A5D3M
R901382357 4WRPEH6C3B25P-3X/M/24A1
R901382315 4WRPEH6C3B40L-3X/M/24A1
4WRPEH10C4B100L-2X/G24K0/F1M
R901382495 4WRPEH6C1B40P-3X/M/24A1
R900947058 4WRAE6E1-30-2X/G24N9K31/F1V
R900954061 4WRA10E60-2X/G24K4/V
R900954659 4WRZE16E150-7X/6EG24ETK31/A1D3M
4WRPEH6C3B12L-2X/G24KO/A1M
4WRPEH6C4B40L2X/G24KO/A1M
4WRPH6C3B12L-2X/G24Z4/M
4WRPH6C4B12L-2X/G24Z4/M
4WRPH6C4B40L-2X/G24Z4/M
4WRPH6C3B25P-2X/G24Z4/M
4WRPH6C3B25P-2X/G24Z4/M
4WRL25V370M-3X/G24Z4/M
4WRPH6C3B40L2X/G24Z4/M
R900703914 4WRKE10W6100L3X/6EG24EK31/A1D3M
R900950051 4WRDE10V1-50L-5X/6L24K9/MR
R900957419 4WRDE16V1-200L-5X/6L24K9/MR
R900927230 4WREE10E752X/G24K31/A1V
R900949806 4WREE10W-50-2X/G24K31/F1V
R900948360 4WREE10W75-23/G24K31/F1V
R901382315 4WRPEH6C3B40L-3X/M/24A1
R901382346 4WRPEH6C4B24L-3X/M/24A1
R901382347 4WRPEH6C3B04L-3X/M/24F1
R901382350 4WRPEH6C3B40L-3X/M/24F1
R901382357 4WRPEH6C3B25P-3X/M/24A1
R900920567 4WREE6E162X/G24K31/A1V
R900751933 4WRZE10W8-50-7X/6EG24N9ETK31/F1D3M
R901051825 4WRZE16W81507X/6EG24N9K31/F1D3M
R901004329 4WRZE25W82207X/6EG24N9K31/F1D3M
R901055378 4WRZE32W8-520-7X/6EG24N9K31/F1D3M
R900711880 4WRAE 6E1-07-23/G24N9K31/F1V
R900731922 4WRKE25E350L-3X/6EG24EK31/A1D3M
R900920567 4WREE6E162X/G24K31/A1V
R900907114 4WREE6E32-2X/G24K31/A1V
R902650795 4WRE6V32-2X/G24K4V-822
R900726605 4WRE10E1-25-2X/G24K4/V

Key Differences & Selection Guide

  1. Q: What is the core difference between 4WREE and 4WRAE series?

    A:​ The 4WREE series features LVDT feedback​ (closed-loop control), offering high precision and better contamination resistance. The 4WRAE series​ (e.g., R900954083) has no LVDT (open-loop), making it more cost-effective but with lower accuracy and repeatability.

  2. Q: What is the control signal interface?

    A:​ The suffix /A1​ indicates a ±10 V DC​ analog voltage command input. For a 4–20 mA​ current signal, select the version with the /F1​ suffix.

  3. Q: Is an external amplifier required?

    A:​ No.​ The "E" in the model and the /G24K31​ suffix indicate the valve has Integrated On-Board Electronics (OBE). It only requires a 24V DC power supply and the command signal to operate.

  4. Q: What are the characteristics of the "W" spool?

    A:​ The W-type (overlap) spool​ has a small dead zone at the center, providing smooth acceleration/deceleration and preventing actuator creep, making it ideal for applications requiring smooth starts and stops.

  5. Q: What are the critical installation considerations?

    A:​ Ensure the tank (T) port return line pressure does not exceed 210 bar. Due to its closed-loop design and precision spool, this valve requires clean hydraulic fluid (typically NAS 1638 Class 8 or ISO 4406 18/16/13 is recommended).
