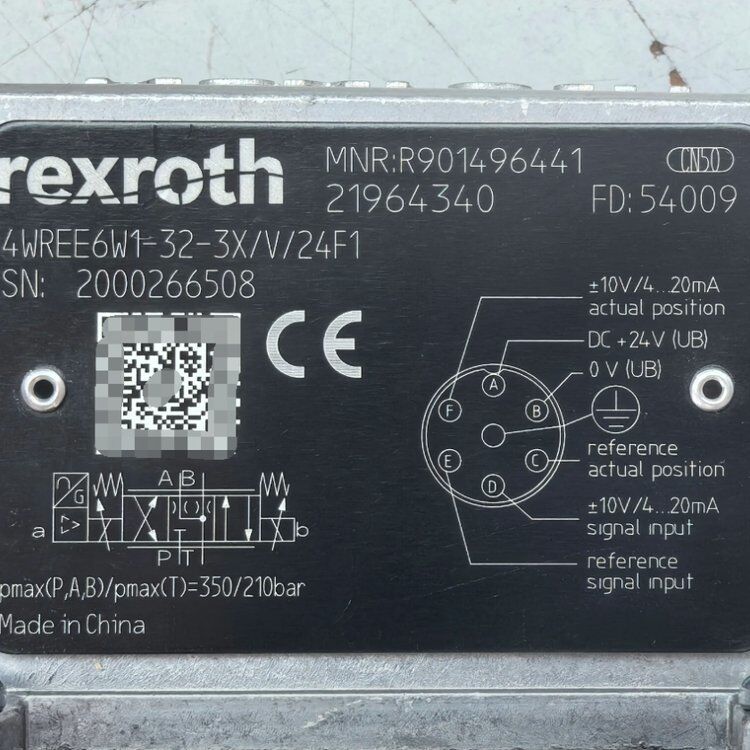

R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve

R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve
R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve

Large Image :  R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 4WREE6W1-32-3X/V/24F1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve

Description
Supply Voltage​: 24V DC (19...36 VDC) Control Signal​: 4–20 MA (Current Input)​
Mounting Interface​: ISO 4401-03-02-0-05 Media Temperature​: -20°C To +70°C
Viscosity Range​: 20 To 380 Mm²/s

Parameter

Specification

Model​

4WREE 6 W1-32-3X/V/24F1

Order No.​

R901496441

Type​

Direct-operated proportional directional valve with integrated electronics (OBE)

Function​

4/3-way (3 positions, 4 ports), spring-centered

Nominal Size​

NG6 (CETOP 3)

Max. Operating Pressure​

P, A, B: 350 bar; T port: 210 bar

Rated Flow​

32 L/min​ (at Δp = 10 bar)

Max. Flow​

Approx. 80 L/min

Spool Type​

W1 (Overlap spool, specific characteristic)​

Spool Characteristic​

Progressive (non-linear)

Electronics​

Integrated On-Board Electronics (OBE)​

Supply Voltage​

24V DC (19...36 VDC)

Control Signal​

4–20 mA (Current Input)​

Feedback​

Integrated LVDT (spool position sensor)

Electrical Connector​

7-pin device plug (6+PE, per EN 175201-804)

Mounting Interface​

ISO 4401-03-02-0-05 (CETOP 3 subplate)

Ports (P, A, B, T)​

4x threaded (M5x0.8 typical for NG6)

Drain Port (Y)​

M14x1.5 (must be connected to tank)

Seal Material​

FKM (Viton)

Suitable Media​

Mineral oils (HL, HLP), HETG, HEES, HEPG, HFDU, HFDR

Media Temperature​

-20°C to +70°C

Viscosity Range​

20 to 380 mm²/s

Weight​

Approx. 2.6 kg

R901496441 4WREE6W1-32-3X/V/24F1 German Rexroth solenoid valve 0

R902650795 4WRE6V32-2X/G24K4V-822
R900726605 4WRE10E1-25-2X/G24K4/V
R900954103 4WRE10E1-50-2X/G24K4/V
R900954104 4WRE10E1-75-2X/G24K4/V
R902435414 4WRE10E25-2X/24Z4/V-93
R900954100 4WRE10E25-2X/G24K4/V
R902650773 4WRE10E25-2X/G24K4V-93
R901048036 4WRE10E3-75-2X/G24K4/V
R900954101 4WRE10E50-2X/G24K4/V
R900954102 4WRE10E75-2X/G24K4/V
R901039213 4WRE10EA25-2X/G24K4/V
R900752971 4WRE10EA50-2X/G24K4/V
R900969351 4WRE10EA75-2X/G24K4/V
R900703186 4WRE10EB50-2X/G24K4/V
R901151585 4WRE10V1-25-2X/G24K4/V
R901415922 4WRE10V1-50-2X/G24K4/M
R901017446 4WRE10V1-50-2X/G24K4/V
R901414444 4WRE10V1-75-2X/G24K4/V
R900954115 4WRE10V25-2X/G24K4/V
R900954116 4WRE10V50-2X/G24K4/V
R901236220 4WRE10V50-2X=G24K4/V
R900954117 4WRE10V75-2X/G24K4/V
R900974152 4WRE10W1-25-2X/G24K4/V
R900954113 4WRE10W1-50-2X/G24K4/V
R900954114 4WRE10W1-75-2X/G24K4/V
R900954105 4WRE10W25-2X/G24K4/V
R900608420 4WRE10W3-75-2X/G24K4/V
R900954106 4WRE10W50-2X/G24K4/V
R900954107 4WRE10W75-2X/G24K4/V
R901436393 4WRE10WA25-2X/G24K4/V
R901086329 4WRE10WA50-2X/G24K4/V
R901030897 4WRE10WA75-2X/G24K4/V
R901339372 4WRE10WB75-2X/G24K4/V
R901031274 4WRE6E04-2X/G24K4/V
R900933478 4WRE6E08-2X/G24K4/V
R900968149 4WRE6E1-08-2X/G24K4/V
R900954093 4WRE6E1-16-2X/G24K4/V
R900954094 4WRE6E1-32-2X/G24K4/V
R900954092 4WRE6E16-2X/G24K4/V
R900926366 4WRE6E32-2X/G24K4/V
R900783105 4WRE6EA08-2X/G24K4/V
R900720198 4WRE6EA16-2X/G24K4/V
R900752799 4WRE6EA32-2X/G24K4/V
R901364823 4WRE6Q2-08-2X/G24K4/V
R900246943 4WRE6V04-2X/G24K4/V
R900954097 4WRE6V08-2X/G24K4/V
R902650793 4WRE6V08-2X/G24K4V-822
R900966805 4WRE6V1-16-2X/G24K4/V
R901403868 4WRE6V16-2X/G24K4/M
R900954098 4WRE6V16-2X/G24K4/V
R902651062 4WRE6V16-2X/G24K4/V-916
R902650794 4WRE6V16-2X/G24K4V-822
R900954099 4WRE6V32-2X/G24K4/V
R901246418 4WRE6W04-2X/G24K4/V
R900941264 4WRE6W08-2X/G24K4/V
R900953729 4WRE6W1-08-2X/G24K4/V
R900954095 4WRE6W1-16-2X/G24K4/V
R901236264 4WRE6W1-16-2X=G24K4/V
R900954096 4WRE6W1-32-2X/G24K4/V
R900775379 4WRE6W1-32-2X/G24K4/V=LB
R900944121 4WRE6W16-2X/G24K4/V
R900773304 4WRE6W16-2X/G24K4/V=LB
R900933480 4WRE6W32-2X/G24K4/V
R901433171 4WRE6W9-32-2X/G24K4/V
R901022178 4WRE6WA08-2X/G24K4/V
R900965434 4WRE6WA16-2X/G24K4/V
R901300969 4WRE6WA16-2X/G24K4/V-303
R901011624 4WRE6WA32-2X/G24K4/V
R902437398 4WRE6V08-2X/G24Z4/V-822
R902437418 4WRE6V16-2X/G24Z4/V-822
R902461723 4WRE6V16-2X/G24Z4/V-916
R902437419 4WRE6V32-2X/G24Z4/V-822

R900958157 4WREE10E1-25-2X/G24K31/A1V
R901268119 4WREE10E1-25-2X/G24K31/A1V-280
R901066667 4WREE10E1-25-2X/G24K31/F1V
R900933076 4WREE10E1-50-2X/G24K31/A1V
R901162016 4WREE10E1-50-2X/G24K31/A1V-280
R901354776 4WREE10E1-50-2X/G24K31/F1M
R900703908 4WREE10E1-50-2X/G24K31/F1V

Key Differences & FAQs

  1. Q: What is the difference between R901496441 (/24F1) and R901496432 (/24A1)?

    A:​ The control signal. R901496441 (/24F1) requires a 4–20 mA current signal, while R901496432 (/24A1) requires a ±10 V voltage signal. Mechanically, they are identical and share the same NG6 mounting interface.

  2. Q: Can I use this valve with a ±10V PLC output?

    A:​ No.​ The /24F1​ suffix mandates a 4–20 mA current input. If your controller outputs ±10V, you must use the /24A1​ version or add a signal converter.

  3. Q: What does "W1" spool mean?

    A:​ W1​ indicates a specific variant of the overlap spool with a particular flow characteristic. Functionally, it behaves similarly to the standard W spool (providing smooth metering at low flows), but it is part of the newer 3X series with updated specifications.

  4. Q: Is an external amplifier required?

    A:​ No.​ This valve features Integrated On-Board Electronics (OBE), which includes the amplifier and closed-loop spool position control. You connect the 24V power and 4–20 mA signal directly to the valve's electrical connector.

  5. Q: What is the critical installation note for the drain port?

    A:​ The Y port (drain)​ must be connected directly to the tank without any pressure. It drains internal leakage and provides a reference for the LVDT sensor. A blocked or pressurized drain line will cause erratic valve behavior and potential failure.

  6. Q: Is the mounting compatible with other NG6 valves?

    A:​ Yes.​ The "3X"​ designation confirms it uses the standard ISO 4401-03-02-0-05​ interface. It is directly interchangeable with other NG6 "3X" series valves without modifying the subplate.
