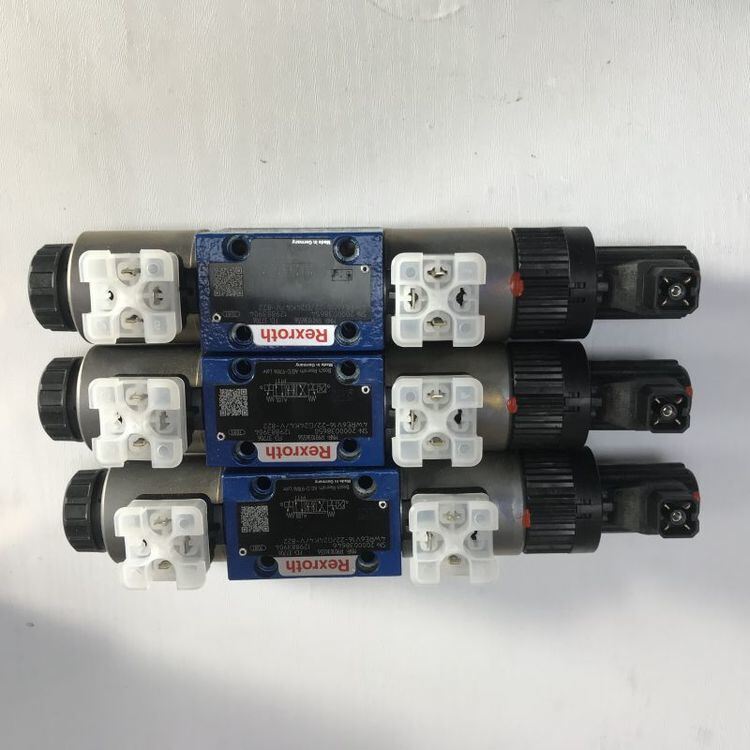

R901523727 4WREE6W16-3X/V/24F1 Hydraulic proportional valve from Rexroth, Germany

FAQs for Rexroth 4WREE6W16-3X/V/24F1

1. Q: What is the key difference between R901523727 (/24F1) and R901496437 (/24A1)?

   A:​ The control signal type. R901523727 (/24F1) accepts 4–20 mA current input, while R901496437 (/24A1) accepts ±10 V voltage input. They are otherwise identical in mechanical construction, flow capacity, and mounting dimensions. Do not mix these versions without a signal converter.

2. Q: Can I use this valve with a PLC that has a ±10V analog output?

   A:​ No, not directly.​ The /24F1​ suffix specifically requires a 4–20 mA current signal. If your controller outputs ±10V, you should use the /24A1​ version (R901496437). Attempting to drive an F1 valve with a voltage signal will not work correctly.

3. Q: What is the advantage of the "W" spool in this valve?

   A:​ The W spool has overlap​ (positive overlap), which creates a small dead zone around the center position. This provides excellent low-flow metering characteristics and is more tolerant of contamination compared to zero-overlap E-spools. It is ideal for velocity control applications where smooth starts are critical.

4. Q: Is an external amplifier card (e.g., VT-VSPA1) required?

   A:​ No.​ The "4WREE" series features Integrated On-Board Electronics (OBE), meaning the amplifier and closed-loop control circuitry are built into the valve. You connect the 24V power and 4–20 mA signal directly to the valve's 7-pin connector.

5. Q: What happens if the drain port (Y) is blocked or pressurized?

   A:​ This will cause valve failure.​ The Y port must be connected directly to the tank (unpressurized). It serves to drain internal leakage oil and provides a reference pressure for the LVDT sensor. A blocked drain line can lead to erratic spool movement, loss of control, and seal damage.

6. Q: Is the mounting interface the same as other NG6 proportional valves?

   A:​ Yes.​ The "3X"​ in the model number confirms it uses the standardized ISO 4401-03-02-0-05​ mounting interface. It is directly interchangeable with other NG6 "3X" series valves (e.g., 4WREE6...-3X) without modifying the subplate.
