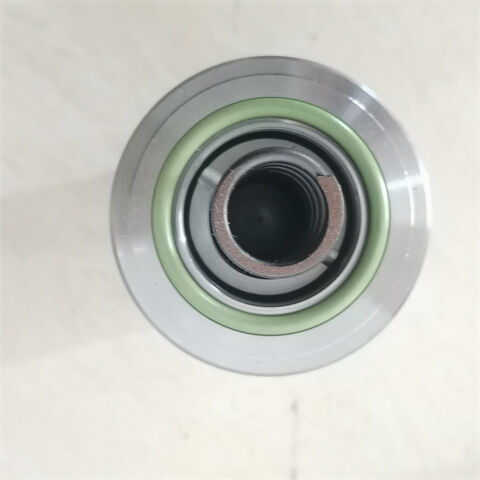

R900938000 LC40A20E7X/ German Rexroth plug-in valve

FAQs for Rexroth LC40A20E7X/ Cartridge Valve

1. Q: This valve is listed as 40mm. What types of systems require a component this large?

   A:​ A 40mm cartridge valve is used in ultra-high-flow hydraulic systems. Typical applications are found in heavy industry and mega-scale machinery, such as: large hydraulic presses (forging, molding), wind turbine pitch control systems, offshore crane and winch systems, test benches for massive engines or components, steel mill equipment​ (rolling mills, continuous casters), and marine hydraulic systems​ (rudder controls, stabilizers). These systems often operate with pump flows exceeding 500-1000 liters per minute.

2. Q: How does the "E7X" pilot configuration work?

   A:​ The "E7X" code indicates a specific external pilot control configuration. The "X" designates the standard external pilot pressure port. To open the valve against its spring and system pressure, a hydraulic pilot signal of sufficient pressure (determined by the pilot ratio) must be applied to this X port. When the pilot signal is removed, the spring returns the valve to its normal (usually closed) position. This configuration allows remote electrical or hydraulic control of a massive flow path.

3. Q: What is the meaning of the "A20" designation in the model?

   A:​ "A20" is a Rexroth internal spool and performance designation. The "A" typically indicates a specific series or family, while the number "20" defines the exact spool type, its metering notches, flow characteristics, and damping features. Different numbers (e.g., A05, A20) result in different performance curves for flow vs. pressure drop and different dynamic responses. The correct "Axx" variant is selected based on the required system performance, such as desired shock suppression or flow capacity.

4. Q: What are the critical steps for installing this large threaded cartridge valve?

   A:​ Proper installation is crucial for reliability and safety:

   1. Cavity Preparation:​ The manifold must have a perfectly clean and undamaged ISO 7789 (CETOP 10) screw-in cavity. Any debris or scoring will cause leakage.

   2. Seal Installation:​ Correctly install the specified O-rings or seals onto the cartridge, using lubrication.

   3. Thread Engagement:​ Carefully start the large threads by hand to avoid cross-threading.

   4. Torque:​ Use a torque wrench​ and the specified tightening torque to secure the cartridge. Do not overtighten.

   5. Retention:​ Install the specified retaining plate or locknut​ to prevent loosening from vibration.

5. Q: Can this valve fail in a safe (closed) position for load-holding applications?

   A:​ Yes, this is a primary design feature for such valves. In a typical load-holding or counterbalance application, the valve is installed to prevent a load from falling. In its spring-applied, normally closed state, it blocks flow, securely holding the load even if all system pressure is lost. The load can only be lowered when a positive, intentional pilot signal​ is applied to the X port to open the valve. This makes it a fail-safe​ component for critical applications.
