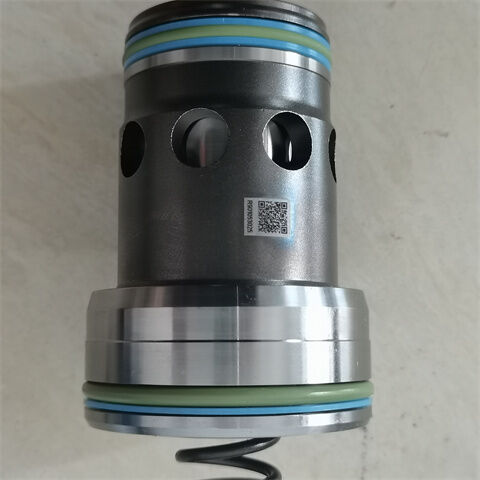

R900912543 LC32DB20E7X/ Rexroth two-way plug-in control valve

FAQs for Rexroth LC32DB20E7X Two-way Cartridge Valve

• Q: What is the primary function of a "two-way plug-in cartridge valve" like the LC32D?

  A:​ The LC32D is a versatile piloted logic cartridge. Its core function is to control the direction and on/off state of a high-flow hydraulic line​ within a manifold. It is commonly used as a piloted check valve​ (allowing free flow in one direction and blocking reverse flow unless a pilot signal is applied), a blocking valve, or a logic element​ (e.g., shuttle, dual pressure) in custom hydraulic circuits. Its "two-way" nature means it connects two main ports (A and B).

• Q: The valve has a 32mm nominal size. What does this mean for flow capacity?

  A:​ The 32mm size refers to the ISO 7789 (CETOP 8) standard cartridge cavity​ it fits into. This is a very large size​ designed for high-power hydraulics. Its flow capacity is extremely high, typically handling flows of 600 liters per minute or more​ with a low pressure drop. It is used in applications like large presses, injection molding machines, steel mills, and marine equipment where massive flows need to be controlled.

• Q: How is the valve controlled? What is the "pilot ratio"?

  A:​ The valve is pilot-operated. A small external hydraulic signal applied to the pilot port (X)​ controls the opening of the large main spool. The pilot ratio​ (e.g., 4:1) is a key specification. It means that a pilot pressure of, for example, 87.5 bar (350 bar / 4) is sufficient to open the valve against a 350 bar system pressure acting to keep it closed. This allows a small valve to control a very large flow.

• Q: The model code includes "B20E7X." What do these alphanumerics mean?

  A:​ This is a Rexroth detailed variant code​ that defines the valve's specific internal configuration. The "B20" typically denotes a particular spool type and its flow characteristics. The "E7X" defines the pilot control configuration—in this case, the "X" indicates the standard external pilot control port. The exact performance (e.g., leakage class, opening characteristics) for this specific code must be taken from the official technical datasheet.

• Q: What is the typical installation method for this cartridge valve?

  A:​ It is a screw-in cartridge​ designed for installation into a custom manifold block. The installation requires: 1) A precision-machined cavity​ in the manifold that conforms to the ISO 7789 (CETOP 8) standard. 2) The cartridge is threaded into this cavity. 3) It is sealed via O-rings on its periphery. 4) It is secured with a large retaining nut or cover plate. The manifold provides the porting (A, B, X, drain) and integrates the valve into the complete hydraulic system.
