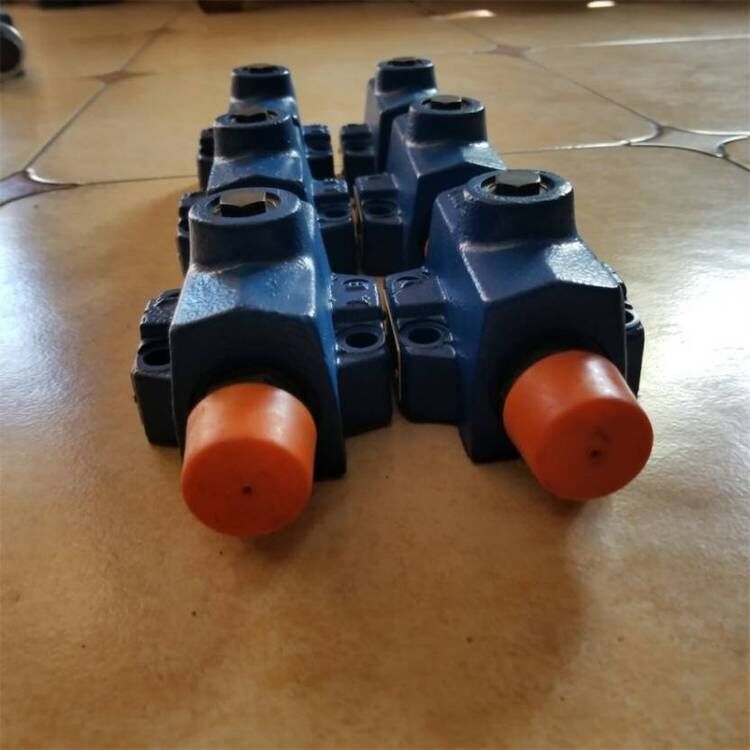

R900479509 DR6DP1-5X/25YM Rexroth direct acting pressure reducing valve made in Germany

FAQs for Rexroth DR6DP1-5X/25YM Pressure Reducing Valve

1. Q: What is the primary function of a pressure reducing valve?

   A:​ A pressure reducing valve's core function is to maintain a constant, pre-set lower pressure in a secondary branch of a hydraulic circuit, regardless of fluctuations in the higher primary system pressure. It takes a high inlet pressure (P) and provides a stable, reduced outlet pressure (A) to components like clamps, pilots, or lubricating systems that require a lower, steady pressure.

2. Q: How is this valve adjusted, and what does the "/25YM" suffix mean?

   A:​ The pressure is adjusted mechanically​ by turning the valve's external adjustment screw. Clockwise rotation typically increases the secondary pressure setting, while counter-clockwise decreases it. The suffix "/25YM"​ indicates that the valve's maximum adjustable secondary pressure is 25 bar. The "YM" part of the code may specify additional details like the adjustment mechanism type or seals.

3. Q: What happens if the pressure at the outlet (A port) tries to exceed the set pressure?

   A:​ This is the valve's key safety function. If pressure at the A port (e.g., from an external force on a cylinder) exceeds the set reducing pressure, the valve acts as a relief valve for the secondary circuit. It opens an internal connection from the A port to the T (tank) port, allowing fluid to escape to tank and preventing the secondary pressure from rising above the set value, thus protecting downstream components.

4. Q: There is a constant, small flow from the T port to the tank. Is this normal?

   A: Yes, this is normal and expected for a standard pressure reducing valve in its regulating function.​ When the secondary circuit is not using flow (e.g., a cylinder is holding), the valve must be slightly open to be ready to supply flow. This results in a small, continuous internal leakage from the inlet (P), over the spool lands, and out the T port to tank. This is not a defect but a characteristic of the design that should be considered for system efficiency.

5. Q: The downstream pressure is unstable or lower than the set point. What could be wrong?

   A:​ Potential causes include: 1) Insufficient flow demand:​ The valve needs a minimum flow to regulate properly; a completely blocked downstream circuit can cause instability. 2) Contamination:​ Dirt can cause the spool to stick. 3) Incorrect adjustment:​ The setting may have drifted; re-adjust under flow conditions. 4) Excessive return line backpressure:​ High pressure at the T port can prevent the valve from opening correctly to supply the A port. Ensure the T line is connected directly to tank with minimal backpressure.
