R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany

R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany
R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany

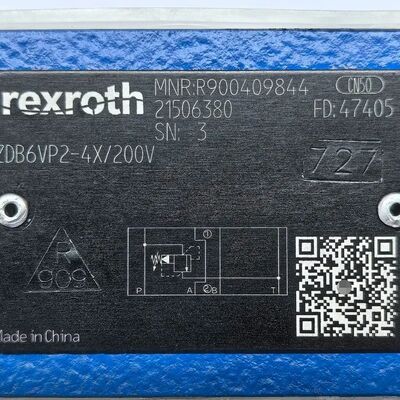

Large Image :  R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: ZDB6VP2-4X/200V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany

Description
Pressure: Set To 200 Bar Flow: 60 L/min.
Voltage: 24V DC Product Code​: R900409844
Model​: ZDB6VP2-4X/200V
Highlight:

Rexroth stacked overflow valve

,

Rexroth hydraulic valve 200V

,

original Rexroth overflow valve

Parameter

Description

Model​

ZDB6VP2-4X/200V

Product Code​

R900409844

Type​

Stacked, pilot-operated pressure relief valve

Origin​

Germany

Mounting​

Sandwich / Stacked

Max. Operating Pressure​

315 bar

Nominal Pressure Setting​

200 bar

Nominal Flow Rate​

60 L/min

Pilot Spool Type​

VP2 (2-stage pilot valve)

Control Type​

4X: Solenoid-controlled, external pilot supply and drain

Solenoid Voltage​

24V DC (standard)

Seals​

FKM (Viton®) for mineral oil

Function​

Solenoid-controlled main system relief / unloading valve

R900409844 ZDB6VP2-4X/200V Rexroth stacked overflow valve, original from Germany 0

R900409936 ZDB6VB2-4X/100V
R900409933 ZDB6VP2-4X/100V
R900409898 ZDB6VP2-4X/315V
R900409896 ZDB6VB2-4X/315V
R900409893 ZDB6VA2-4X/315V
R900409889 ZDB6VA2-4X/100V
R900409886 ZDB6VA2-4X/200V
R900409854 ZDB6VB2-4X/200V
R900409847 ZDB6VP2-4X/50V
R900409844 ZDB6VP2-4X/200V
R900406615 ZDB6VA2-4X/50V
R900403470 ZDB6VA3-4X/200V
R900402018 ZDB10VP1-4X/315V
R900967527 ZDB10VP1-4X/100
R900967507 ZDB6VB1-4X/100
R900906981 ZDB10VA3-4X/100
R900248279 ZDBEE6VP3-1X/50G24NK31M
R900246322 ZDBE6VP2-1X/200G24NK4V
R900244964 ZDBEE6VP2-1X/100G24NK31M
R900596905 ZDB10VP1-4X/100V
R900586621 ZDB6VP1-4X/100V
R900583801 ZDB6VA1-4X/50V
R900564564 ZDBK6VP2-1X/210V
R900564561 ZDBK6VB2-1X/210V
R900564530 ZDBK10VP2-1X/210V
R900561458 ZDB6VP2-4X/350V
R900551788 ZDB6VB1-4X/315V
R900522027 ZDB6VA1-4X/315V
R900509893 ZDB6VA1-4X/315
R900506373 ZDB10VB3-4X/100V
R900501402 ZDBK6VA2-1X/100V
R900501258 ZDB10VA1-4X/200
R900449008 ZDB6VP1-4X/50V
R900440160 ZDB6VB3-4X/50V
R900437441 ZDB6VA2-4X/100
R900433646 ZDB6VA1-4X/200V
R900432106 ZDB10VA2-4X/50
R900431678 ZDB6VA2-4X/50
R900431401 ZDB6VB2-4X/100
R900431071 ZDB6VA2-4X/315
R900430984 ZDB10VA2-4X/315
R900429509 ZDB6VB2-4X/200
R900428468 ZDB10VP2-4X/200
R900428339 ZDB6VP2-4X/200
R900427434 ZDB10VA2-4X/100
R900425927 ZDB10VP2-4X/315
R900425681 ZDB10VB2-4X/315
R900424537 ZDB10VA2-4X/100V
R900423274 ZDB6VP2-4X/100
R900422752 ZDB10VP2-4X/50V
R900422261 ZDB10VB2-4X/200
R900422215 ZDB10VB2-4X/200V
R900422189 ZDB10VA2-4X/200V
R900422089 ZDB6VP3-4X/200
R900422075 ZDB6VP2-4X/315
R900422073 ZDB10VB2-4X/100

FAQ: Rexroth ZDB6VP2-4X/200V

What is it?​

A pilot-operated relief valve in a stacked (sandwich) design, electrically controlled to unload the system.

Key specs?​

  • Type:​ Stacked, solenoid-operated relief valve.

  • Pressure:​ Set to 200 bar.

  • Flow:​ 60 L/min.

  • Voltage:​ 24V DC.

  • Mounting:​ Installed between a directional valve and its subplate.

How does it work?​

Normally maintains system pressure (200 bar). When the solenoid is energized, it vents the pilot pressure, causing the main valve to open and unload the system​ to tank at low pressure (saves energy when idle).

Where is it used?​

As an integrated unloading valve​ on the pressure port of a directional control valve stack, e.g., in mobile or industrial machinery.

How to install?​

Sandwiched between the main directional valve and its mounting subplate. External pilot supply (X)​ and drain (Y)​ must be connected correctly per the circuit diagram.

Common issues?​

  • No unloading:​ Check solenoid power/coil.

  • Pressure too low/erratic:​ Check pilot supply pressure or for contamination.

  • Leakage:​ Check seals between stacked plates.
