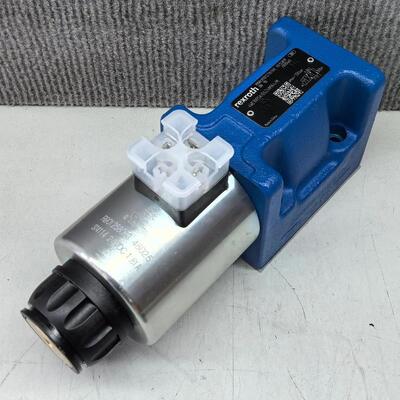

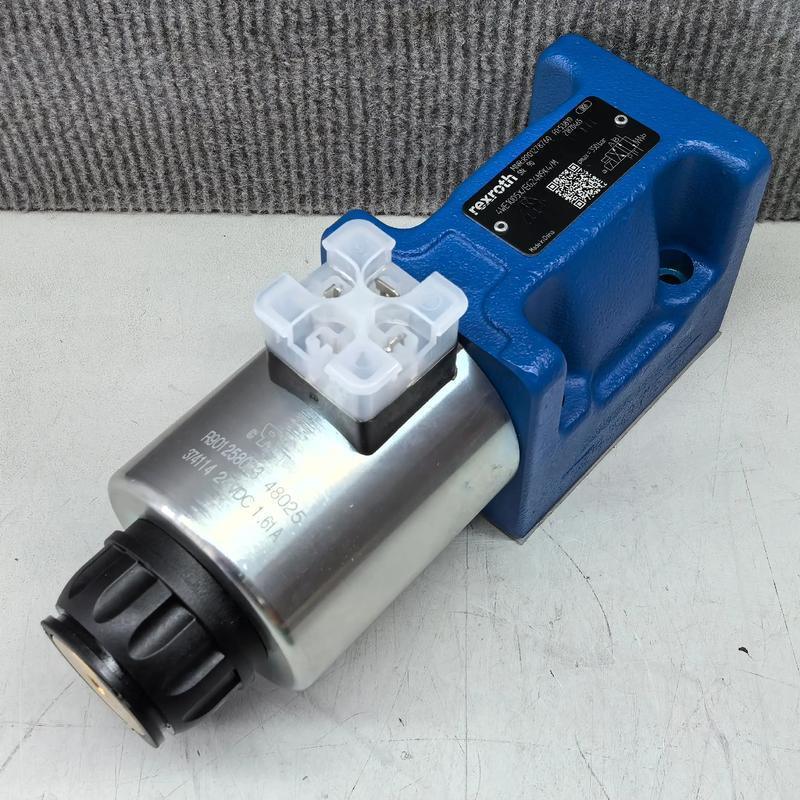

Rexroth 4WE10E5X/HG24N9K4/M Directional Valve - Parameter Table
|
Parameter
|
Value / Description
|
|
Valve Type
|
Solenoid-operated directional control valve
|
|
Model
|
4WE 10 E5X/HG24N9K4/M
|
|
Design
|
Wet-pin solenoid; Subplate mounting
|
|
Connection Size (P/A/B/T)
|
G 1/4"
|
|
Nominal Size
|
10 mm
|
|
Maximum Operating Pressure
|
315 bar
|
|
Maximum Flow Rate
|
60 l/min
|
|
Number of Positions/Ways
|
4-way, 3-position
|
|
Spool Type (E5X)
|
Pressure port P to tank T, work ports A & B connected to pressure P in center position ("Open P to A&B center" or "Regenerative center")
|
|
Control Method
|
Single solenoid, with spring return to center
|
|
Solenoid Specification (HG24N9K4)
|
24V DC; with manual override; plug connector (DIN 43650 Form A)
|
|
Operating Voltage
|
24V DC
|
|
Power Consumption
|
Typically ~22W (Confirm with official datasheet)
|
|
Protection Class (Coil)
|
IP65 standard
|
|
Duty Cycle
|
100%
|
|
Mounting
|
According to ISO 4401-05 (CETOP 5)
|
|
Weight (approx.)
|
~3.0 kg (with coil)
|
|
Housing Material
|
Aluminum alloy
|
|
Sealing Material
|
Nitrile rubber (NBR) standard; FKM optional
|
|
Fluid Temperature Range
|
-20 °C to +80 °C (with NBR seals)
|
|
Recommended Viscosity Range
|
10 to 400 mm²/s
|
|
Fluid Compatibility
|
Mineral oils (HL, HLP per ISO 6743-4)
|
|
Filtration Requirement
|
Cleanliness class 20/18/15 per ISO 4406 (recommended)
|
| R901344560 4WE10D5X/EG220N9K4/V |
| R901424561 4WE10D5X/EG220N9K4/VSO924 |
| R901372424 4WE10D5X/EG24K4/B10M |
| R901429729 4WE10D5X/EG24K4/B20M |
| R901321288 4WE10D5X/EG24K4/M |
| R901347407 4WE10D5X/EG24K4/V |
| R901376294 4WE10D5X/EG24N5K4/M |
| R901376297 4WE10D5X/EG24N6DK6L/M |
| R901385372 4WE10D5X/EG24N6K4/M |
| R901376291 4WE10D5X/EG24N8DK6L/M |
| R901455531 4WE10D5X/EG24N8DL/M |
| R901349805 4WE10D5X/EG24N8K4/M |
| R901384705 4WE10D5X/EG24N8K4K/T12M |
| R901430319 4WE10D5X/EG24N9DK25L/M |
| R901362273 4WE10D5X/EG24N9DK6L/M |
| R901388694 4WE10D5X/EG24N9DK6L/V |
| R901340195 4WE10D5X/EG24N9DL/M |
| R901393179 4WE10D5X/EG24N9DL/M=CSA |
| R901361250 4WE10D5X/EG24N9K4/B08M |
| R901368964 4WE10D5X/EG24N9K4/B10M |
| R901340453 4WE10D5X/EG24N9K4/B12M |
| R901333452 4WE10D5X/EG24N9K4/B12MH |
| R901351945 4WE10D5X/EG24N9K4/B12V |
| R901350503 4WE10D5X/EG24N9K4/B20M |
| R901350031 4WE10D5X/EG24N9K4/B30M |
| R901278760 4WE10D5X/EG24N9K4/M |
| R901388847 4WE10D5X/EG24N9K4/M=AN |
| R901410302 4WE10D5X/EG24N9K4/M=CSA |
| R901317861 4WE10D5X/EG24N9K4/M=TE |
| R901321520 4WE10D5X/EG24N9K4/MH |
| R901349661 4WE10D5X/EG24N9K4/T06M |
| R901278783 4WE10D5X/EG24N9K4/V |
| R901316038 4WE10D5X/EG24N9K4/V=KM |
| R901371306 4WE10D5X/EG24N9K4/X40M |
| R901339384 4WE10D5X/EG24N9K4K/M |
| R901349576 4WE10D5X/EG24N9K72L/M |
| R901350504 4WE10D5X/EG24N9K72L/M=AN |
| R901353846 4WE10D5X/EG26N9C4Z/M |
| R901423918 4WE10D5X/EG26N9K4K/M |
| R901403956 4WE10D5X/EG48N9K4/M |
| R901393598 4WE10D5X/EG96N9DL/B04M |
| R901347114 4WE10D5X/EG96N9K4/B10M |
| R901402680 4WE10D5X/EG96N9K4/B12M |
| R901347132 4WE10D5X/EG96N9K4/B20M |
Rexroth 4WE10E5X/HG24N9K4/M Directional Valve - FAQ
Q1: What is the unique feature of the "E5X" spool?
A: The "E5X" spool has a unique center position function. In the neutral (spring-centered) state, it connects the pressure port (P) to both work ports (A & B) and also to the tank port (T). This creates a specific pressure condition on both sides of an actuator.
Q2: What is this center position used for?
A: This "open center to A, B, and T" configuration is less common. It is typically used in specialized applications, such as holding a double-acting cylinder under equal pressure from both sides in the neutral position, or in certain closed-center circuits that require a specific pre-charge or unloading path. It is not a standard float or closed-center function.
Q3: How is the valve operated?
A: It is controlled by a single 24V DC solenoid ("HG24N9K4" coil). Energizing the solenoid shifts the spool to one working position. De-energizing it allows internal springs to return the spool to the unique center position described above. A manual override is provided.
Q4: What are the pressure and flow ratings?
A: Maximum operating pressure: 315 bar. Maximum recommended flow rate: 60 liters per minute.
Q5: What are the electrical details?
A: The solenoid operates on 24V DC, with a protection class of IP65. Please refer to the official data sheet for exact power and current specifications.
Q6: How is the valve installed?
A: It mounts on a standard ISO 4401-05 (CETOP 5) subplate. The hydraulic ports are G 1/4". Electrical connection is via a standard plug connector.
Q7: What are the fluid requirements?
A: Use standard mineral-based hydraulic oils (HL, HLP). High fluid cleanliness (ISO 4406 20/18/15 recommended) with proper filtration is essential.
Q8: Where can I find the complete technical information?
A: For the complete datasheet, performance curves, and the exact hydraulic symbol for this specific spool type, please consult the official technical documentation for order code R901390857.
