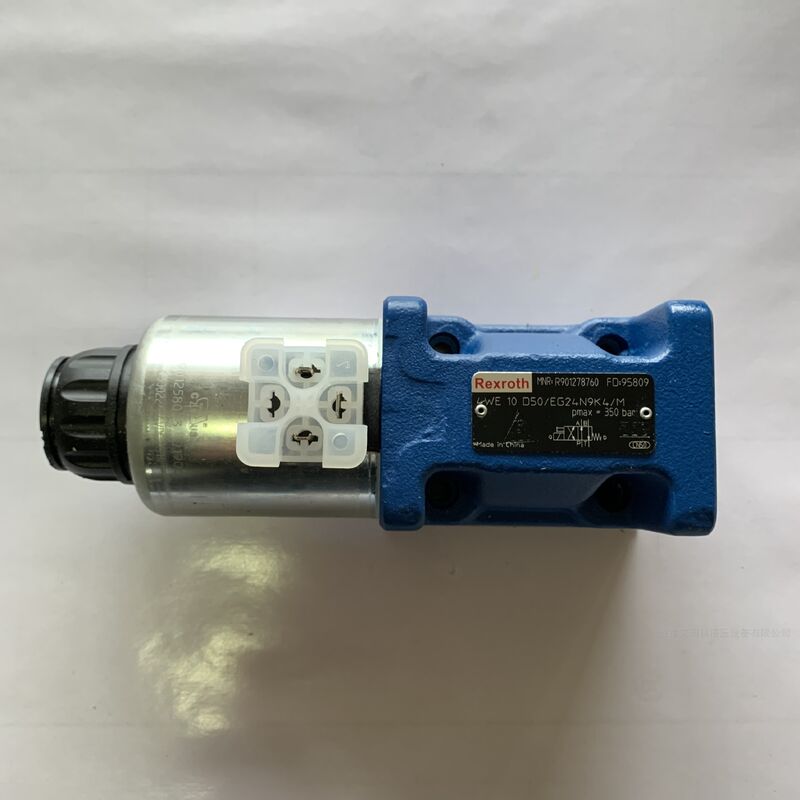

Rexroth 4WE10D5X/OFEG24N9K4/M Directional Valve - Parameter Table
|
Parameter
|
Value / Description
|
|
Valve Type
|
Solenoid-operated directional control valve
|
|
Model
|
4WE 10 D5X/OFEG24N9K4/M
|
|
Design
|
Subplate mounted, wet-armature DC solenoid
|
|
Connection Size (P/A/B/T)
|
G 1/4"
|
|
Nominal Size
|
10 mm
|
|
Maximum Operating Pressure
|
315 bar
|
|
Maximum Flow Rate
|
60 l/min
|
|
Number of Positions
|
4-way, 3-position
|
|
Spool Type (D5X)
|
All ports (P, A, B, T) blocked in center position
|
|
Control Method
|
Single solenoid, spring return to center
|
|
Solenoid Specification (OFEG24N9K4)
|
24V DC, with plug connector (DIN 43650 Form A), manual override
|
|
Note: "OFE" Prefix
|
Often indicates a "Ready-to-Install" version, which may include pre-assembled coil, connector, and/or LEDs.
|
|
Power Consumption
|
Typically ~22W (Confirm with official datasheet)
|
|
Protection Class (Coil)
|
IP65
|
|
Duty Cycle
|
100%
|
|
Mounting
|
ISO 4401-05 (CETOP 5) interface
|
|
Weight (approx.)
|
~3.0 kg (with coil)
|
|
Housing Material
|
Aluminum alloy
|
|
Sealing Material
|
Nitrile rubber (NBR) standard
|
|
Fluid Temperature Range
|
-20 °C to +80 °C (with NBR seals)
|
|
Recommended Viscosity Range
|
10 to 400 mm²/s
|
|
Fluid Compatibility
|
Mineral oils (HL, HLP per ISO 6743-4)
|
|
Filtration Requirement
|
Cleanliness class 20/18/15 per ISO 4406 (recommended)
|
| R901344560 4WE10D5X/EG220N9K4/V |
| R901424561 4WE10D5X/EG220N9K4/VSO924 |
| R901372424 4WE10D5X/EG24K4/B10M |
| R901429729 4WE10D5X/EG24K4/B20M |
| R901321288 4WE10D5X/EG24K4/M |
| R901347407 4WE10D5X/EG24K4/V |
| R901376294 4WE10D5X/EG24N5K4/M |
| R901376297 4WE10D5X/EG24N6DK6L/M |
| R901385372 4WE10D5X/EG24N6K4/M |
| R901376291 4WE10D5X/EG24N8DK6L/M |
| R901455531 4WE10D5X/EG24N8DL/M |
| R901349805 4WE10D5X/EG24N8K4/M |
| R901384705 4WE10D5X/EG24N8K4K/T12M |
| R901430319 4WE10D5X/EG24N9DK25L/M |
| R901362273 4WE10D5X/EG24N9DK6L/M |
| R901388694 4WE10D5X/EG24N9DK6L/V |
| R901340195 4WE10D5X/EG24N9DL/M |
| R901393179 4WE10D5X/EG24N9DL/M=CSA |
| R901361250 4WE10D5X/EG24N9K4/B08M |
| R901368964 4WE10D5X/EG24N9K4/B10M |
| R901340453 4WE10D5X/EG24N9K4/B12M |
| R901333452 4WE10D5X/EG24N9K4/B12MH |
| R901351945 4WE10D5X/EG24N9K4/B12V |
| R901350503 4WE10D5X/EG24N9K4/B20M |
| R901350031 4WE10D5X/EG24N9K4/B30M |
| R901278760 4WE10D5X/EG24N9K4/M |
| R901388847 4WE10D5X/EG24N9K4/M=AN |
| R901410302 4WE10D5X/EG24N9K4/M=CSA |
Rexroth 4WE10D5X/OFEG24N9K4/M Directional Valve - FAQ
Q1: What is the main difference between this model and the standard 4WE10 valve?
A: The key difference is the "OFE" prefix in the part number, which typically indicates a "Ready-to-Install" or "Fully Equipped" version. This model often comes with the solenoid coil, plug connector, and status LED pre-assembled from the factory.
Q2: What does the "D5X" spool do?
A: The "D5X" spool is a closed-center type. In its neutral (centered) position, it blocks all four ports (Pressure P, Actuator ports A & B, and Tank T), locking the connected hydraulic actuator in place.
Q3: How is the valve operated?
A: It is a single-solenoid, spring-return valve. Applying 24V DC to the solenoid shifts the spool. Removing power allows the spring to return the spool to the closed-center neutral position. A manual override is provided for testing.
Q4: What are the key operating limits?
A: Maximum operating pressure: 315 bar. Maximum recommended flow rate: 60 liters per minute.
Q5: What does the "OFEG24N9K4" coil specification mean?
A: This describes the solenoid: "OFE" (ready-to-install version), "G" (plug connector type), "24" (24V DC), "N9" (specific coil design/connection), "K4" (protection class IP65, manual override). The exact electrical specs (e.g., power, current) should be verified in the datasheet.
Q6: How is it mounted and connected?
A: It mounts on a standard ISO 4401-05 (CETOP 5) subplate. The hydraulic ports are G 1/4". The electrical connection is via a pre-assembled plug connector (typically DIN 43650 Form A).
Q7: What fluid and conditions are required?
A: Use standard mineral-based hydraulic oils (HL, HLP). The system fluid must be kept very clean (recommended ISO 4406 20/18/15) for reliable operation and long life.
Q8: Where can I find the complete manual and technical data?
A: For the complete electrical specifications, wiring diagram, performance curves, and installation details, please refer to the official technical documentation for the exact order code R901278763.
