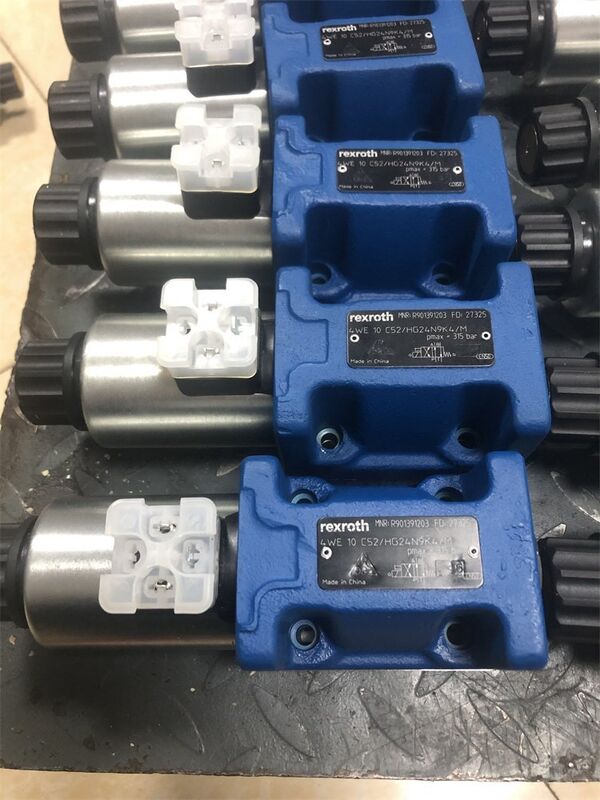

Rexroth 4WE10D5X/EG24N9K4/M Directional Valve - Parameter Table
|
Parameter
|
Value / Description
|
|
Valve Type
|
Solenoid-operated directional control valve
|
|
Model
|
4WE 10 D5X/EG24N9K4/M
|
|
Design
|
Wet-pin AC/DC solenoid; Subplate mounting (sandwich design)
|
|
Connection Size (P/A/B/T)
|
G 1/4"
|
|
Nominal Size
|
10 mm
|
|
Maximum Operating Pressure
|
315 bar
|
|
Maximum Flow Rate
|
60 l/min
|
|
Number of Positions
|
4-way, 3-position
|
|
Spool Type (D5X)
|
All ports closed in center position (P, A, B, T blocked)
|
|
Control Method
|
Single solenoid, with spring return to center
|
|
Solenoid Specification (EG24N9K4)
|
24V DC, with manual override, plug connector (DIN 43650 Form A)
|
|
Power Consumption
|
Typically 22W (please verify with datasheet)
|
|
Protection Class (Coil)
|
IP65 standard
|
|
Duty Cycle
|
100%
|
|
Mounting
|
According to ISO 4401-05 (CETOP 5)
|
|
Weight (approx.)
|
3.0 kg (with coil)
|
|
Housing Material
|
Aluminum alloy
|
|
Sealing Material
|
Nitrile rubber (NBR) standard; FKM optional
|
|
Fluid Temperature Range
|
-20 °C to +80 °C (with NBR seals)
|
|
Recommended Viscosity Range
|
10 to 400 mm²/s
|
|
Fluid Compatibility
|
Mineral oils (HL, HLP per ISO 6743-4)
|
|
Filtration Requirement
|
Cleanliness class 20/18/15 per ISO 4406 (recommended)
|
| R901344560 4WE10D5X/EG220N9K4/V |
| R901424561 4WE10D5X/EG220N9K4/VSO924 |
| R901372424 4WE10D5X/EG24K4/B10M |
| R901429729 4WE10D5X/EG24K4/B20M |
| R901321288 4WE10D5X/EG24K4/M |
| R901347407 4WE10D5X/EG24K4/V |
| R901376294 4WE10D5X/EG24N5K4/M |
| R901376297 4WE10D5X/EG24N6DK6L/M |
| R901385372 4WE10D5X/EG24N6K4/M |
| R901376291 4WE10D5X/EG24N8DK6L/M |
| R901455531 4WE10D5X/EG24N8DL/M |
| R901349805 4WE10D5X/EG24N8K4/M |
| R901384705 4WE10D5X/EG24N8K4K/T12M |
| R901430319 4WE10D5X/EG24N9DK25L/M |
| R901362273 4WE10D5X/EG24N9DK6L/M |
| R901388694 4WE10D5X/EG24N9DK6L/V |
| R901340195 4WE10D5X/EG24N9DL/M |
| R901393179 4WE10D5X/EG24N9DL/M=CSA |
| R901361250 4WE10D5X/EG24N9K4/B08M |
| R901368964 4WE10D5X/EG24N9K4/B10M |
| R901340453 4WE10D5X/EG24N9K4/B12M |
| R901333452 4WE10D5X/EG24N9K4/B12MH |
| R901351945 4WE10D5X/EG24N9K4/B12V |
| R901350503 4WE10D5X/EG24N9K4/B20M |
| R901350031 4WE10D5X/EG24N9K4/B30M |
| R901278760 4WE10D5X/EG24N9K4/M |
| R901388847 4WE10D5X/EG24N9K4/M=AN |
| R901410302 4WE10D5X/EG24N9K4/M=CSA |
| R901317861 4WE10D5X/EG24N9K4/M=TE |
| R901321520 4WE10D5X/EG24N9K4/MH |
| R901349661 4WE10D5X/EG24N9K4/T06M |
| R901278783 4WE10D5X/EG24N9K4/V |
| R901316038 4WE10D5X/EG24N9K4/V=KM |
| R901371306 4WE10D5X/EG24N9K4/X40M |
| R901339384 4WE10D5X/EG24N9K4K/M |
| R901349576 4WE10D5X/EG24N9K72L/M |
| R901350504 4WE10D5X/EG24N9K72L/M=AN |
| R901353846 4WE10D5X/EG26N9C4Z/M |
| R901423918 4WE10D5X/EG26N9K4K/M |
Rexroth 4WE10D5X/EG24N9K4/M Directional Valve - FAQ
Q1: What is this valve used for?
A: It is an electrically controlled directional valve used to start, stop, and change the direction of fluid flow in hydraulic systems. It is typically used to control the movement of cylinders or motors in industrial machinery.
Q2: What does the part number 4WE10D5X/EG24N9K4/M mean?
A: The code specifies the valve's features:
-
4WE10: 4-way, solenoid-operated, nominal size 10.
-
D5X: Spool type with all ports (P, A, B, T) blocked in the center position.
-
EG24N9K4: Solenoid coil details (24V DC, plug connector, manual override, protection class IP65).
-
/M: May indicate a specific variant or production version.
Q3: What is the center position function?
A: The "D5X" spool blocks all four ports (P, A, B, T) in the spring-centered neutral position. This holds the actuator in place and blocks the pump port.
Q4: How is the valve controlled?
A: It is controlled by a 24V DC solenoid. When energized, the solenoid shifts the spool. When de-energized, springs return the spool to the center position. It also has a manual override for testing.
Q5: What is the maximum operating pressure and flow?
A: Maximum pressure: 315 bar. Maximum recommended flow: 60 liters per minute.
Q6: How is it powered?
A: The standard coil operates on 24V DC. Always refer to the coil label and technical data for exact electrical specifications (e.g., power, inrush current).
Q7: How is the valve mounted?
A: It uses a subplate mounted according to the ISO 4401-05 (CETOP 5) standard, allowing for easy integration into a valve stack.
Q8: What hydraulic fluid is compatible?
A: Standard mineral-based hydraulic oils (HL, HLP) are compatible. The standard seals are NBR rubber. High cleanliness (ISO 4406 20/18/15 recommended) is required.
Q9: Where can I get wiring diagrams and complete data?
A: For complete electrical data, wiring diagrams, performance curves, and dimensional drawings, please consult the official product documentation for the exact order code.
