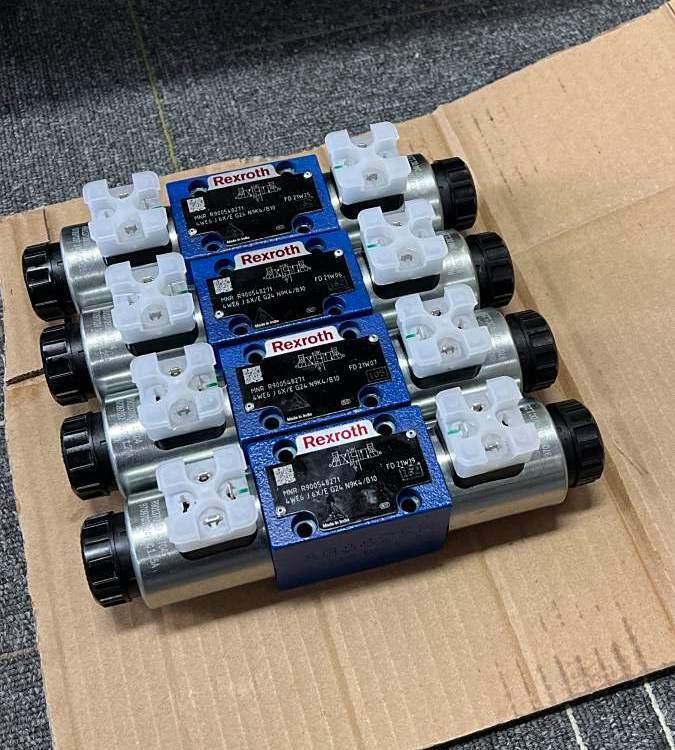

R900909559 4WE6D6X/EW230N9K4 Directional valve, Rexroth electromagnetic hydraulic valve

Rexroth 4WE6D6X/EW230N9K4 Solenoid Directional Valve - Technical Specifications

FAQs for Rexroth 4WE6D6X/EW230N9K4 Solenoid Valve

1. Q: What is the primary function of the "D" center position?

   A:​ The "D" center, also known as a tandem center, connects the pressure port (P) to both actuator ports (A and B) and blocks the tank port (T) in the neutral position. This configuration is primarily used to hold a hydraulic motor or a differential cylinder stationary under pressure, as it equalizes pressure on both sides of the actuator.

2. Q: This valve uses 230V AC. What is the significance of the 50/60 Hz rating?

   A:​ The 50/60 Hz rating means the valve's solenoid coil is designed to operate correctly on both 50 Hertz (common in Europe, Asia, and other regions) and 60 Hertz (common in North America) power systems, as long as the voltage is 230V AC. The internal coil design accounts for the different electrical frequencies.

3. Q: Can I use this valve to directly control the speed of a hydraulic motor?

   A:​ No. This is a directional control valve. It starts, stops, and changes the direction of fluid flow to the motor. To control the motor's speed, an additional flow control device (like a flow control or proportional valve) must be used in the circuit. The D-center is ideal for holding a stopped motor under load.

4. Q: The system uses a pressure-compensated pump. Is the D-center a good match?

   A:​ It can be used, but with an important consideration. In neutral, the D-center blocks the flow to the tank (T). This means a fixed-displacement pump would be dead-headed, which is unacceptable. However, with a pressure-compensated pump, the pump's compensator will simply destroke to maintain a set pressure, making this a workable configuration. The M-center (P to T) is often a more efficient choice for pump unloading.

5. Q: The electrical plug is the same as the 24V DC models. How do I prevent accidentally connecting the wrong voltage?

   A:​ While the DIN 43650 plug housing is standardized, the internal pin assignment or the coil's electrical resistance is different. More importantly, the coil is clearly labeled with its voltage rating (230V AC ~ 50/60 Hz).​ Always check this label on the coil body before connecting power. Using 24V DC on a 230V AC coil will not energize it, and applying 230V AC to a 24V DC coil will destroy it.
