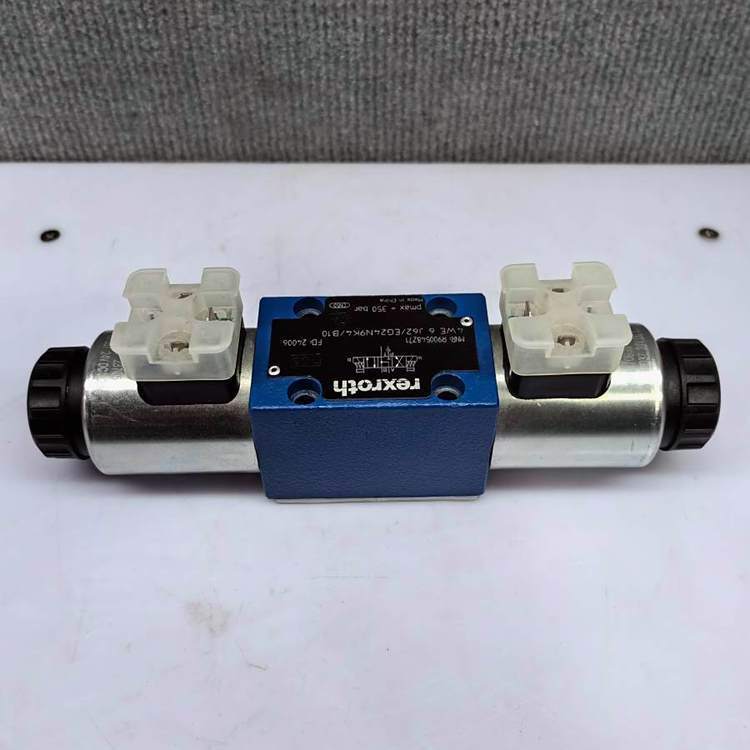

R900577475 4WE6M6X/EG24N9K4 Directional valve solenoid valve Rexroth

Rexroth 4WE6M6X/EG24N9K4 Solenoid Directional Valve - Technical Specifications

FAQs for Rexroth 4WE6M6X/EG24N9K4 Solenoid Valve

1. Q: What is the main purpose of the "M" type center position?

   A:​ The "M" center position blocks the cylinder ports (A and B) and connects the pump's pressure port (P) directly to the tank (T) in neutral. This configuration locks the actuator in place for secure holding and simultaneously unloads the pump to save energy and reduce heat generation.

2. Q: How do I know if the valve is properly energized?

   A:​ The solenoid is equipped with a standard DIN 43650 plug containing an LED indicator. When the coil receives the correct 24V DC power, this LED will illuminate, providing a clear visual confirmation that the valve is receiving the electrical signal.

3. Q: What should I do if the valve is shifting slowly or seems weak?

   A:​ First, verify that the system voltage is a stable 24V DC at the solenoid terminals. Low voltage is a common cause. Next, ensure the drain port (Y) on the solenoid is connected directly to the tank with zero backpressure, as restricted drainage can prevent full spool movement. Finally, check the fluid condition for contamination.

4. Q: Is this valve suitable for use with a pressure-compensated pump?

   A:​ Yes, the "M" center is particularly well-suited for use with fixed-displacement or pressure-compensated pumps. In neutral, the P-to-T connection provides a continuous, low-pressure flow path back to the tank, allowing the pump to unload. This is a standard and efficient circuit configuration.

5. Q: Can I replace just the solenoid coil if it fails, or do I need to replace the entire valve?

   A:​ Yes, the solenoid coil is typically available as a separate spare part. You can replace just the coil assembly without replacing the entire valve body. You will need the correct coil part number, which is often based on the electrical code (e.g., EG24N9K4). Always use the manufacturer's genuine or approved replacement parts.
