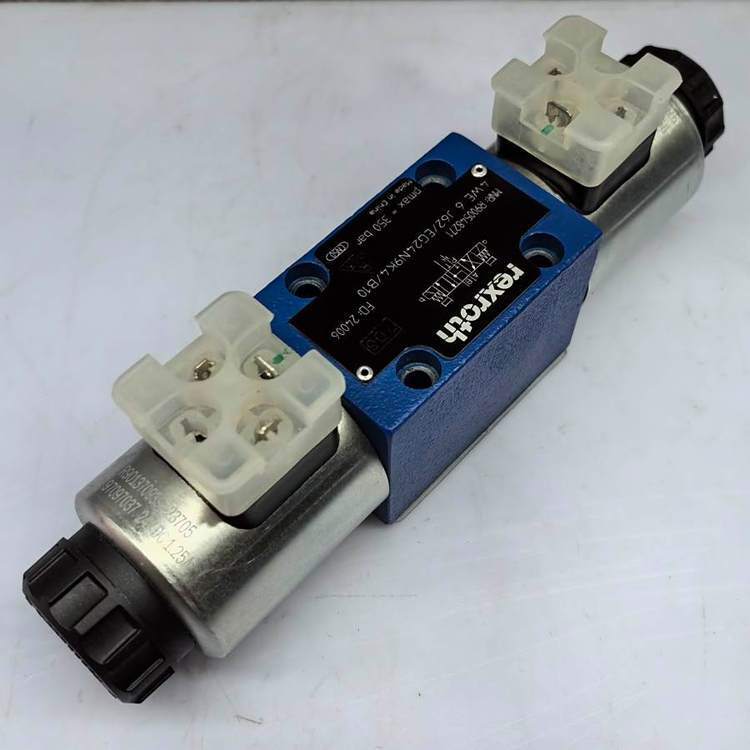

R900553670 4WE6HB6X/EG24N9K4 Hydraulic directional valve solenoid valve Rexroth

Rexroth 4WE6HB6X/EG24N9K4 Solenoid Directional Valve - Technical Specifications

FAQs for Rexroth 4WE6HB6X/EG24N9K4 Solenoid Valve

1. Q: What is the practical application of the "HB" center position?

   A:​ The "HB" center connects pressure (P) to port B and port A to the tank (T) in the neutral position. This configuration is typically used to hold a double-acting cylinder in a retracted (piston rod in) position when the valve is de-energized, as pressure is applied to the rod side.

2. Q: The system pressure is around 200 bar. Is this valve suitable?

   A:​ Yes, this valve is suitable. It is rated for a maximum operating pressure of 315 bar, so 200 bar is well within its design limits. Always ensure the pressure does not exceed the 315 bar maximum.

3. Q: The solenoid gets very hot during continuous operation. Is this normal?

   A:​ Some warmth is normal, but excessive heat is not. Ensure the drain port (Y) on the solenoid is connected directly to the tank with no backpressure. High backpressure on this port can cause the solenoid to overheat. Also, verify that the supply voltage is exactly 24V DC, as overvoltage can cause overheating.

4. Q: What spare parts or maintenance kits are available for this valve?

   A:​ Common spare parts include the complete solenoid coil, repair kits containing seals and gaskets, and in some cases, the valve spool. The specific kit or part number should be obtained from an authorized distributor or the manufacturer's technical documentation based on the full valve order code.

5. Q: Can I install this valve in any orientation?

   A:​ It is recommended to mount the valve with its axis horizontal (solenoid on the side) for optimal performance and reliability. Mounting with the solenoid vertical (facing up or down) is often possible but may affect service life and is not the recommended standard orientation. Always refer to the installation diagram for guidance.
