Product Details:
|

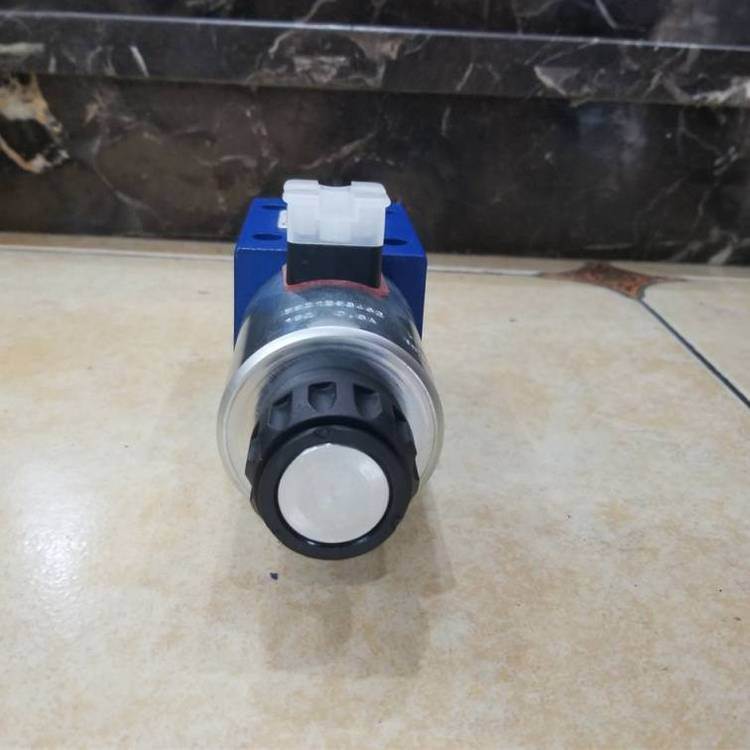

| Model: | 4WE 6 HA 6X/EG24N9K4 | Order No.: | R900549534 |
|---|---|---|---|
| Type: | 4/3-way, 3-position | Center Position: | HA (P Connected To A, B Connected To T In Neutral) |
| Nominal Size: | 6 Mm | ||
| Highlight: | Rexroth electromagnetic directional valve,Rexroth hydraulic valve with warranty,4WE6HA6X directional valve EG24N9K4 |
||
|
Parameter |
Specification |
|---|---|
|
Model |
4WE 6 HA 6X/EG24N9K4 |
|
Order No. |
R900549534 |
|
Type |
4/3-way, 3-position |
|
Center Position |
HA (P connected to A, B connected to T in neutral) |
|
Nominal Size |
6 mm |
|
Max. Operating Pressure |
315 bar |
|
Rated Flow |
Approx. 30 L/min (at Δp = 5 bar) |
|
Solenoid Data |
24V DC, 22W (Standard) |
|
Voltage Code |
EG24N9K4 |
|
Electrical Connection |
DIN 43650 plug (with LED) |
|
Manual Override |
Standard |
|
Coil Protection |
IP65 (with plug) |
|
Mounting Interface |
ISO 4401-03-02-0-05 (CETOP 3) |
|
Ports (P, A, B, T) |
4x M5x0.8 threaded |
|
Drain Port (Y) |
1x M14x1.5 |
|
Standard Seals |
NBR |
|
Suitable Media |
Mineral oils (HL/HLP), HFA, HFB, HFC, HFDR |
|
Media Temperature |
-20°C to +70°C (for oil) |
|
Viscosity Range |
10 to 400 mm²/s |
|
Duty Cycle |
100% (continuous) |
![]()
| R900549534 4WE6HA6X/EG24N9K4 |
| R900553670 4WE6HB6X/EG24N9K4 |
| R900577475 4WE6M6X/EG24N9K4 |
| R900939990 Z4WE6E68-3X/EG24K4 |
| R900904559 4WE6M6X/EW110N9K4 |
| R900918589 4WE6D6X/EW230N9DKL |
| R900909559 4WE6D6X/EW230N9K4 |
| R900912492 4WE6E6X/EW230N9K4 |
| R983030728 4WMM6J6X/ |
| R983030770 4WMM10D3X/F |
| R901278760 4WE10D5X/EG24N9K4/M |
| R901278763 4WE10D5X/OFEG24N9K4/M |
| R901339383 4WE10D5X/EG220N9K4/M |
| R901278744 4WE10J5X/EG24N9K4/M |
| R901391203 4WE10C5X/HG24N9K4/M |
| R901390857 4WE10E5X/HG24N9K4/M |
| R901401552 4WE10J5X/HG24N9K4/M |
| R901391161 4WE10L5X/HG24N9K4/M |
| R901391194 4WE10U5X/HG24N9K4/M |
| R901427832 4WE10G5X/HG24N9K4/M |
| R901427828 4WE10H5X/HG24N9K4/M |
| R901401553 4WE10M5X/HG24N9K4/M |
| R901391202 4WE10Y5X/HG24N9K4/M |
| R900952630 4WEH10E4X/6EG24N9ETK4/B10 |
| R900948924 4WEH10J4X/6EG24N9ETK4/B10 |
| R901531045 4WEH16D1X/6HG24N9EK4/B10 |
| R901108754 4WEH16E7X/6HG24N9ETK4/B10 |
| R901108808 4WEH16J7X/6HG24N9ETK4/B10 |
| R901480132 4WEH16J7X/6HG24N9ETK4/B10-910 |
| R900937356 4WEH22D7X/6EG24N9ETK4/B10 |
| R900943534 4WEH22E7X/6EG24N9ETK4/B10 |
| R901108960 4WEH22J7X/6HG24N9ETK4/B10 |
| R900932049 4WEH22J7X/6EG24N9ETK4/B10 |
| R901119654 H-4WEH25E6X/6HG24N9ETK4/B10D3 |
| R900932940 H-4WEH25J6X/6EG24N9ETK4/B10D3 |
| 0532004204 PRESS RELIEF VALVE 160 BAR |
| R900438939 DBDS6K1X/400V |
| R900769564 DBDS6K1X/190E |
| R900769414 DBDS10K1X/160E |
| R900424149 DBDS10K1X/200 |
| R900424183 DBDH10K1X/315 |
| R900424152 DBDS10K1X/400 |
| R900424269 DBDS20K1X/200 |
| R900424286 DBDS30K1X/200 |
| 0811109135 ZDBY6DA2-1X/80V/60 |
| R900409844 ZDB6VP2-4X/200V |
| R900409898 ZDB6VP2-4X/315V |
| R900426329 ZDB6VA2-4X/200 |
| R900411314 Z2DB6VD2-4X/200V |
| R900409955 ZDB10VA2-4X/315V |
| R900409958 ZDB10VP2-4X/315V |
| R900411358 Z2DB10VD2-4X/200V |
| R900505052 DB10-1-5X/200 |
| R900598998 DB10-1-5X/315 |
| R900590334 DB10-2-5X/315 |
| R900502117 DB20-1-5X/200 |
| R900587346 DB20-1-5X/315 |
| R983037993 DBDH10G1X/315 |
| R900425660 DBDS10P1X/400 |
| R900424277 DBDS20P1X/200 |
| R900424279 DBDS20P1X/400 |
Q: What is the function of the "HA" center position?
A: The "HA" center provides a specific flow path: Port P (pressure) is connected to Port A, and Port B is connected to Port T (tank). This configuration is used for controlled retraction or specific transitions when the valve returns to neutral, often to maintain pressure on one side of a cylinder.
Q: How do I connect the valve electrically? What does the LED indicate?
A: The valve uses a standard DIN 43650 electrical plug. Connect the 24V DC supply to the designated pins. The built-in LED lights up when the solenoid coil is properly energized, providing a visual confirmation of the electrical signal.
Q: The valve is leaking externally from the solenoid area. What could be the cause?
A: External leakage near the solenoid typically indicates a failed shaft seal inside the solenoid housing. This seal separates the hydraulic fluid from the coil chamber. The valve must be taken out of service, and the seal or the entire solenoid assembly should be replaced.
Q: Can I use this valve to control the speed of a hydraulic cylinder?
A: Not directly. This is a directional control valve. To control speed, it must be used in combination with flow control components, such as throttle or flow control valves, installed in the cylinder ports (A and B lines) to regulate the flow to and from the actuator.
Q: What is the purpose of the manual override, and how is it operated?
A: The manual override allows an operator to shift the valve spool mechanically, even without electrical power. It is used for testing, system setup, or emergency operation. It is typically operated by pushing or turning the override pin or knob on the end of the solenoid.
