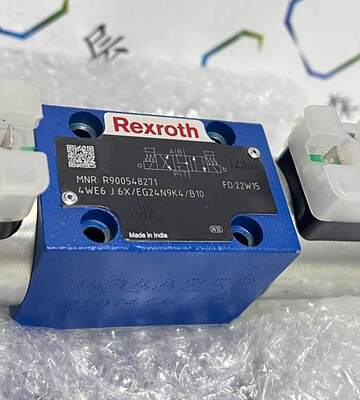

Rexroth 4WE6J6X/EG24N9K4/B10 Electromagnetic Directional Valve with 315 Bar Max Pressure 24V DC Solenoid and 30 L/min Flow Rate

FAQs for Rexroth 4WE6J6X/EG24N9K4/B10 Solenoid Valve

• Q: What do the "J" and "/B10" in the model number mean?

  A:​ "J" denotes the valve's center spool configuration (J-type: P port blocked, A & B ports connected to T in neutral position). "/B10" is an option code, typically indicating specific spool tuning, spring settings, or internal design optimizations. Refer to the official technical drawing for exact details.

• Q: Is this valve compatible with HFC (glycol-water) hydraulic fluid?

  A:​ Yes. With standard NBR seals, this valve is suitable for the media listed in its specification, including mineral oils, HFA/HFB emulsions, HFC fluids, and HFDR phosphate esters. Ensure the fluid viscosity stays within the 10-400 mm²/s operating range.

• Q: The LED on the solenoid plug is not lighting up. What's wrong?

  A:​ Possible causes include: no power or incorrect supply voltage (verify 24V DC), a blown fuse, a damaged coil, or a poor plug connection. First, check the power supply and wiring, then measure the coil resistance with a multimeter to see if it's within the normal range.

• Q: The valve responds slowly or doesn't shift completely. What could be the issue?

  A:​ Common reasons are: ① Low supply voltage, resulting in insufficient solenoid force. ② Excessive system backpressure, especially if the drain port (Y) is not directly connected to the tank without pressure. ③ Fluid contamination causing spool sticking. ④ Oil temperature or viscosity outside the specified range. Check these factors and test fluid cleanliness.

Q: Where can I find the detailed dimensional drawing and flow-pressure characteristic curves for this valve?

A:​ The most accurate source is the official Rexroth datasheet, document number RE 29030. You can find it in the download section of the Rexroth website or request it directly from Rexroth technical support or an authorized distributor.
