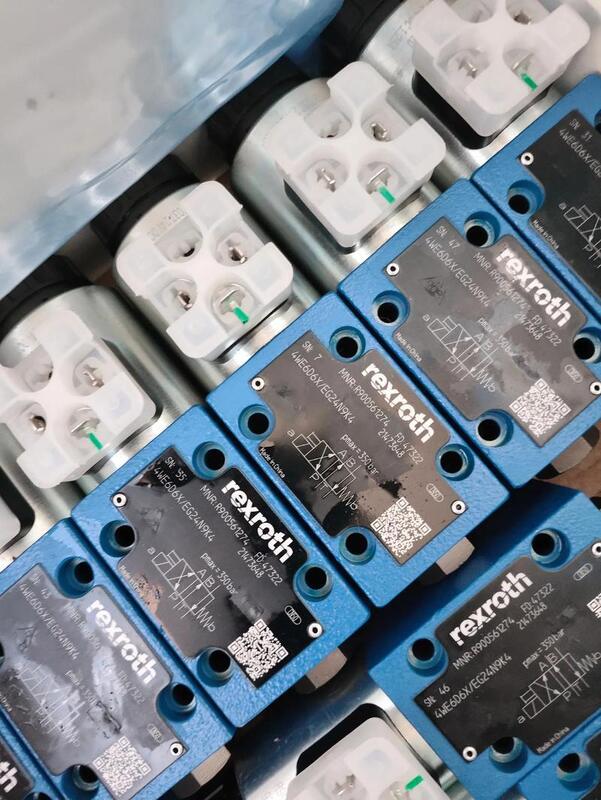

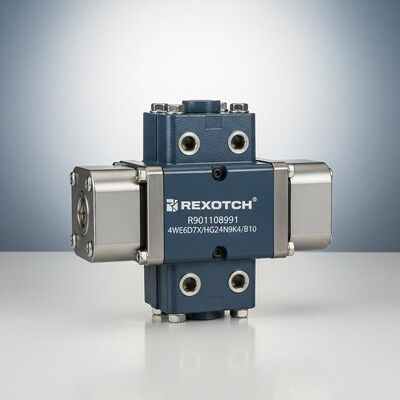

R901108991 4WE6D7X/HG24N9K4/B10 Directional Valve German Rexroth Electromagnetic Directional Valve
Product Overview
The Rexroth 4WE6D7X/HG24N9K4/B10 is a configurable, German-engineered solenoid-operated directional valve designed for precise hydraulic flow control in industrial applications. This valve combines reliable directional switching with a specific factory option, making it suitable for tailored system requirements.
Key Specifications
| Order Number |
R901108991 |
| Full Model |
4WE6D7X/HG24N9K4/B10 |
| Valve Type |
Solenoid-operated directional valve (typically 4/3-way configuration) |
| Actuation |
Direct-acting solenoid |
| Electrical Supply |
24 VDC (as specified by the HG24N9K4 suffix) |
| Spool Type |
The "D" designates a specific spool variant, commonly a 4/3-way configuration with all ports blocked in the center position |
| Option Code |
The "/B10" suffix is a factory configuration option, which may specify features like different connector type, special sealing, manual override, or other customized attributes |
Technical Features
- Standard 24VDC operation compatible with industrial control systems
- Durable construction meeting German industrial quality standards
- The "7X" suffix may indicate particular performance or interface characteristics
- Factory-configured with the specific "/B10" option for application-ready integration
Typical Applications
- Industrial automation and robotics
- Machine tools and CNC systems
- Material handling equipment
- Packaging and processing machinery
- Systems requiring specific configurations denoted by the B10 option
Related Product Models
R988129092 4WE6D1X/HG24N9K4, R901108991 4WE6D7X/HG24N9K4/B10, R988129089 4WE6J1X/HG24N9K4, R901108990 4WE6J7X/HG24N9K4/B10, R988129093 4WE6Y1X/HG24N9K4, R901089243 4WE6Y7X/HG24N9K4, and other compatible models.
Important Note
The exact specifications of the "/B10" option and the performance characteristics defined by "D7X" are critical for application. For complete technical data, including flow rates, pressure ratings, and a detailed description of the B10 configuration, consult the official Rexroth datasheet for model 4WE6D7X/HG24N9K4/B10.
Frequently Asked Questions
Q: What is the main function of the Rexroth 4WE6D7X/HG24N9K4/B10 valve?
A: It is a solenoid-operated directional valve used to control the direction of hydraulic fluid flow, typically for operating actuators like cylinders in industrial machinery. The "D" spool suggests a common 4/3-way function with a blocked center position.
Q: What operating voltage does this valve use?
A: The valve operates on 24 Volts DC (VDC), as indicated by the HG24N9K4 suffix. This is a standard industrial control voltage.
Q: What does the "/B10" at the end of the model number indicate?
A: The "/B10" is a factory option code. It specifies a particular configuration or added feature, such as a specific electrical connector, a manual override device, a particular seal material, or other pre-configured attribute. The exact feature must be confirmed in the product documentation.
Q: What is the typical center position function of a "D" spool?
A: In the Rexroth 4WE series, a "D" spool typically denotes a 4/3-way valve where, in the de-energized center (neutral) position, all ports (P, T, A, B) are blocked. This design is used to securely hold a cylinder or load in position.
Q: Where can I find the complete specifications and details of the B10 option?
A: You must obtain the official Rexroth technical datasheet for the exact model 4WE6D7X/HG24N9K4/B10. This document provides all critical performance data (flow, pressure) and a definitive description of what the "/B10" option includes.
