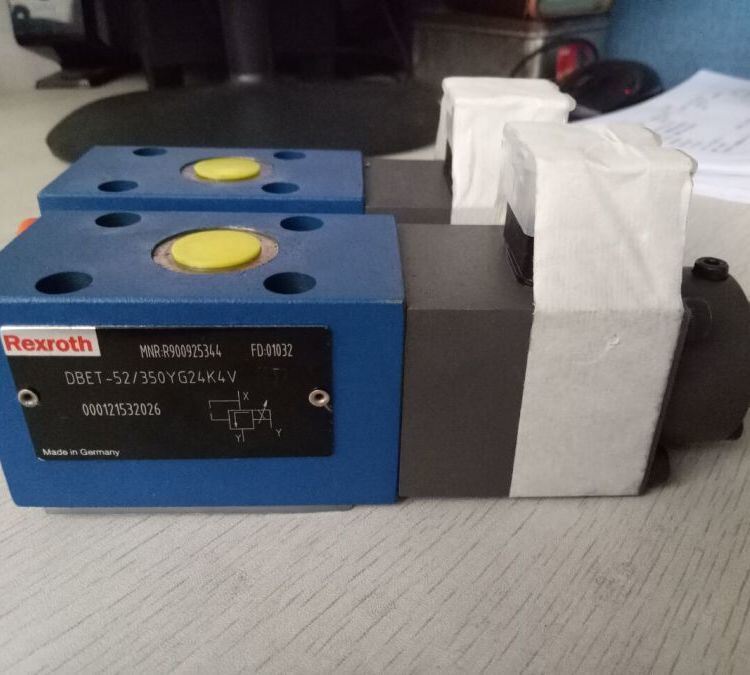

DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth

DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth
DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth

Large Image :  DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: DBET-52/350G24K4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth

Description
Pressure Rating: 280 Bar Efficiency: Up To 95%
Application: Industrial Machinery, Mobile Equipment, Construction Machinery Structure: Piston Pump
Operatingtemperaturerange: -20°C To 80°C Condition: New
Certifisaarion: ISO
Highlight:

Rexroth proportional overflow valve

,

DBET-52 hydraulic valve

,

German imported Rexroth valve

DBET-52/350G24K4M Proportional Overflow Valve
Product Overview

DBET-52/350G24K4M proportional overflow valve imported from Germany by Rexroth. Direct-operated proportional pressure relief valve designed for precision hydraulic control applications.

Technical Specifications
Parameter Specification
Product Series / Type DBET (Proportional Pressure Relief Valve, Direct-Operated)
Nominal Size 52 (Port size or nominal size specification)
Rated Pressure 350 bar
Operating Voltage 24 V DC
Electrical Connection K4 (Specifies electrical connector type)
Control Signal / Option M (4-20mA current input signal)
Maximum Operating Pressure 350 bar
Maximum Flow Rate 2-3 L/min (Typical for size 6 valves)
Hydraulic Fluid Compatibility Mineral-based hydraulic oils (HL, HLP, HVLP types)
Fluid Cleanliness Requirement ISO 4406 Class 18/16/13 or better
Operating Temperature Range -20°C to +80°C (Fluid temperature)
Ambient Temperature Range -20°C to +50°C
Mounting Interface ISO 4401 standard (Subplate mounting)
Product Image

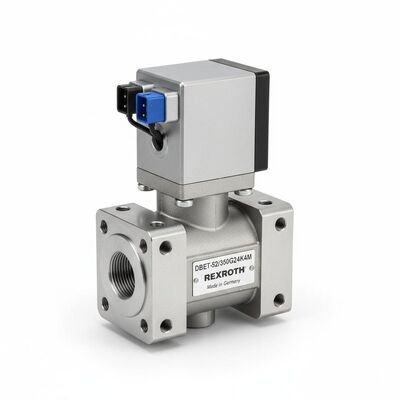

DBET-52/350G24K4M Proportional overflow valve imported from Germany by Rexroth 0
Related Product Models
DBET-5X/200G24K4V
DBET-5X/200G24K4M
DBET-5X/100G24K4V
DBET-5X/100G24K4M
DBET-5X/50G24K4V
DBET-5X/50G24K4M
DBETE-5X/50G24K31A1V
DBETE-5X/315G24K31F1M
DBETE-5X/350G24K31F1V
DBETBEX-1X/310G24K31A1M
DBETFX-1X/80G24-27NZ4M
DBETFX-1X/180G24-27NZ4M
DBETFX-1X/250G24-27NZ4M
DBETFX-1X/315G24-27NZ4M
DBETX-10/50G24-8NZ4M
DBETX-10/80G24-8NZ4M
DBETX-10/180G24-8NZ4M
DBETX-10/50G24-25NZ4M
DBETX-10/80G24-25NZ4M
DBETX-10/180G24-25NZ4M
DBETX-10/250G24-25NZ4M
DBETX-10/315G24-25Z4M
DBET6X/50G24K4V
DBET6X/100G24K4V
DBETB-6X/315G24K31A1V
DBETB-6X/350G24K31A1V
DBE6X-1X/80G24-8NZ4M
DBE6X-1X/180G24-8NZ4M
DBE6X-1X/80G24-25NZ4M
DBE6X-1X/180G24-25NZ4M
DBE6X-1X/315G24-25NZ4M
DBEBE6X-1X/80G24K31F1M
DBE10Z-1X/180XYG24-8NZ4M
DBE10Z-1X/315XYG24-8NZ4M
DBEB10Z-1X/180XYG24-37Z4M
DBEB10Z-1X/315XYG24-37Z4M
DBEBE10Z-1X/180XYG24K31A1M
DBEBE10Z-1X/315XYG24K31A1M
DBEME20DBEME30
DBEME10-5X/50YG24K31M
DBEME10-5X/100YG24K31M
DBEME10-5X/200YG24K31M
DBEME10-5X/315YG24K31M
DBEME10-5X/350YG24K31M
DBEME20-5X/50YG24K31M
DBEME20-5Xyi00YG24K31M
DBEME20-5X/200YG24K31M
DBEME20-5X/315YG24K31M
DBEME20-5X/350YG24K31M
DBEME30-3X/50YG24K31M
DBEME30-3X/100YG24K31M
DBEME30-3X/200YG24K31M
DBEME30-3X/315YG24K31M
DBEME30-3X/350YG24K31M
DBEE6-1X/50YG24K31M
Frequently Asked Questions
Operating Voltage and Current Requirements
What are the electrical specifications for this valve?
The DBET-52/350G24K4M operates on 24V DC (G24) power supply. The typical current consumption is 0.8A to 1.0A. Ensure the power supply is stable and within ±10% tolerance for reliable operation.
Maximum Working Pressure
What pressure rating does this valve have?
This model has a maximum working pressure of 350 bar (as indicated by "/350" in the model number). Do not exceed this pressure limit to prevent valve damage or system failure.
Control Signal Type
How is the pressure setting controlled?
The "K4M" in the model number indicates it accepts a 4-20mA current input signal for proportional pressure control. Ensure the control signal is clean, properly shielded, and free from electrical noise.
Hydraulic Fluid Compatibility
Which hydraulic oils can be used with this valve?
The valve is compatible with standard hydraulic oils including HL, HLP, HVLP types. Maintain fluid cleanliness to ISO 18/16/13 or better. Operating temperature range is typically -20°C to +80°C.
Troubleshooting Non-Responsive Valve
What should I check if the valve doesn't adjust pressure with the input signal?
First verify:
  • 24V DC power supply is present and stable
  • Control signal (4-20mA) is within range and properly connected
  • Hydraulic fluid is clean and at proper level
  • Check electrical connections for corrosion or loose wires
  • If issues persist, the valve may require service or replacement
