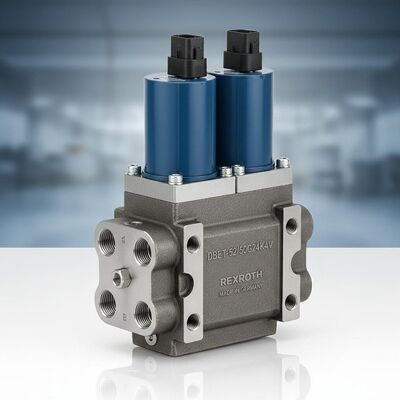

DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany

DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany
DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany

Large Image :  DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: DBET-52/50G24K4V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany

Description
Mountingtype: Flange Or Foot Mount Drive Mode: Mechanically Driven Pump
Rotation: 0.2-cp Can Be Transported In Reverse Manufacturer: Rexroth
Operatingtemperaturerange: -20°C To 80°C Pumptype: Variable Displacement / Fixed Displacement
Factory: Manufacturer
Highlight:

Rexroth proportional pressure relief valve

,

Rexroth hydraulic valve with warranty

,

German imported Rexroth relief valve

DBET-52/50G24K4V Rexroth Proportional Pressure Relief Valve

Rexroth proportional pressure relief valve imported from Germany

Technical Specifications
Parameter Value / Description
Product Model DBET-52/50G24K4V
Nominal Pressure Rating 50 bar (maximum operating pressure at port P)
Supply Voltage 24 V DC (±10%, 21 to 35 V DC permissible range)
Electrical Connection 6-pin plug + PE, compliant with DIN 43563 standard
Protection Class IP65 (dust-tight and protected against water jets)
Seal Material FKM (fluorocarbon rubber, indicated by 'V' suffix)
DBET-52/50G24K4V Rexroth proportional pressure relief valve imported from Germany 0
Related Product Models
  • DBETE-5X/315G24K31F1M
  • DBETE-5X/350G24K31F1V
  • DBETBEX-1X/310G24K31A1M
  • DBETFX-1X/80G24-27NZ4M
  • DBETFX-1X/180G24-27NZ4M
  • DBETFX-1X/250G24-27NZ4M
  • DBETFX-1X/315G24-27NZ4M
  • DBETX-10/50G24-8NZ4M
  • DBETX-10/80G24-8NZ4M
  • DBETX-10/180G24-8NZ4M
  • DBETX-10/50G24-25NZ4M
  • DBETX-10/80G24-25NZ4M
  • DBETX-10/180G24-25NZ4M
  • DBETX-10/250G24-25NZ4M
  • DBETX-10/315G24-25Z4M
  • DBET6X/50G24K4V
  • DBET6X/100G24K4V
  • DBETB-6X/315G24K31A1V
  • DBETB-6X/350G24K31A1V
  • DBE6X-1X/80G24-8NZ4M
  • DBE6X-1X/180G24-8NZ4M
  • DBE6X-1X/80G24-25NZ4M
  • DBE6X-1X/180G24-25NZ4M
  • DBE6X-1X/315G24-25NZ4M
  • DBEBE6X-1X/80G24K31F1M
  • DBE10Z-1X/180XYG24-8NZ4M
  • DBE10Z-1X/315XYG24-8NZ4M
  • DBEB10Z-1X/180XYG24-37Z4M
  • DBEB10Z-1X/315XYG24-37Z4M
  • DBEBE10Z-1X/180XYG24K31A1M
  • DBEBE10Z-1X/315XYG24K31A1M
  • DBEME20DBEME30
  • DBEME10-5X/50YG24K31M
  • DBEME10-5X/100YG24K31M
  • DBEME10-5X/200YG24K31M
  • DBEME10-5X/315YG24K31M
  • DBEME10-5X/350YG24K31M
  • DBEME20-5X/50YG24K31M
  • DBEME20-5Xyi00YG24K31M
  • DBEME20-5X/200YG24K31M
  • DBEME20-5X/315YG24K31M
  • DBEME20-5X/350YG24K31M
  • DBEME30-3X/50YG24K31M
  • DBEME30-3X/100YG24K31M
  • DBEME30-3X/200YG24K31M
  • DBEME30-3X/315YG24K31M
  • DBEME30-3X/350YG24K31M
  • DBEE6-1X/50YG24K31M
  • DBEE6-1X/100YG24K31M
  • DBEE6-1X/200YG24K31M
  • DBEE6-1X/315YG24K31M
Frequently Asked Questions
What is the nominal pressure rating and maximum flow rate?

The nominal pressure rating is 50 bar, and the maximum flow rate is 2 L/min at this pressure. For optimal performance and longevity, it's recommended to operate within these specified limits.

What are the electrical specifications and control signal requirements?

The valve operates on a 24 V DC power supply (permissible range: 21-35 V DC). The control input accepts an analog 0 to 10 V signal. Electrical connection is via a 6-pin plug with PE, compliant with DIN 43563 standard.

What is the protection class and operating temperature range?

The valve has an IP65 protection class, making it dust-tight and protected against water jets. The ambient temperature range for operation is -20 °C to +50°C.

What hydraulic fluids and seal materials are compatible with this valve?

This model is compatible with mineral-based hydraulic oils (HL, HLP per DIN 51524 standards), with a viscosity range of 10-800 mm²/s. The seal material is FKM (fluorocarbon rubber), indicated by the 'V' suffix in the model number.

What is the typical response time and hysteresis performance?

The typical response time for a full signal change is less than 70 ms. The hysteresis is typically ≤ 1%, ensuring precise pressure control with minimal deviation between increasing and decreasing pressure cycles.
