DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth

DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth
DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth

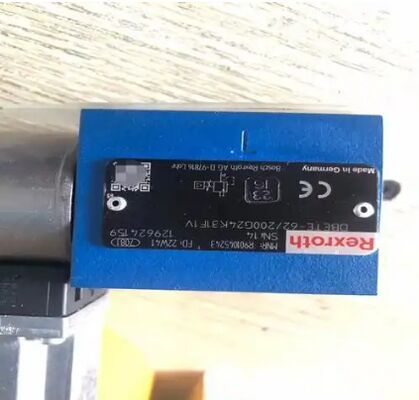

Large Image :  DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: DBETE-52/200G24K31F1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth

Description
Warranty: 1 Year Operating Mode: Pump, Open Circuit
Usage: Oil Maximumpressure: 350 Bar
Efficiency: Up To 95% Certifisaarion: ISO9001
Rotation: Clockwise Or Counterclockwise Transport Package: Wooden Box
Highlight:

Rexroth proportional relief valve

,

German-made hydraulic relief valve

,

Rexroth imported hydraulic valve

DBETE-52/200G24K31F1V Proportional Relief Valve

Proportional relief valve made in Germany, imported from Rexroth

Technical Specifications
Parameter Value / Description
Product Model DBETE-52/200G24K31F1V
Nominal Pressure Rating 200 bar (maximum operating pressure at port P)
Supply Voltage 24 V DC (±10%, 21 to 35 V DC permissible range)
Electrical Connection 6-pin plug + PE, compliant with DIN 43563 standard
Control Signal Input 0 to 10 V analog signal (F1 type)
Protection Class IP65 (dust-tight and protected against water jets)
Ambient Temperature Range -20 °C to +50 °C (operating temperature)
Hydraulic Fluid Compatibility Mineral-based hydraulic oils (HL, HLP per DIN 51524), viscosity range: 10-800 mm²/s
Seal Material FKM (fluorocarbon rubber, indicated by 'V' suffix)
Maximum Flow Rate 2 L/min (at nominal pressure)
Maximum Operating Pressure 420 bar (peak pressure)
Response Time <70 ms (typical for full signal change)

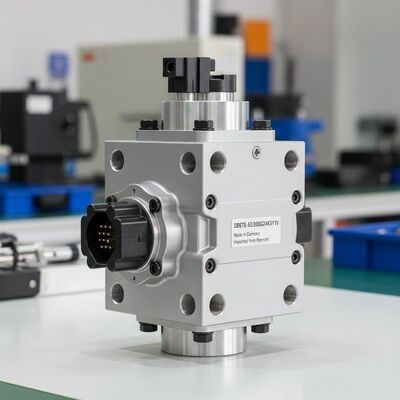

DBETE-52/200G24K31F1V Proportional relief valve made in Germany, imported from Rexroth 0
Related Product Models
DBETBX-10/315G24-16Z4M
DBETBX-10/315G24-25Z4M
DBETBX-10/315G24-37Z4M-38
DBETBX-10/80G24-16Z4M-37
DBETBX-10/80G24-37Z4M-38
DBETX-10/315G24-8NZ4M
DBETX-10/250G24-8NZ4M
DBETBEX-1X/180G24K31A1M
DBETBEX-1X/180G24K31A1V
DBETBEX-1X/180G24K31F1M
DBETBEX-1X/180G24K31F1V
DBETBEX-1X/250G24K31A1M
DBETBEX-1X/250G24K31A1M-42
DBETBEX-1X/250G24K31A1V
DBETBEX-1X/250G24K31F1M
DBETBEX-1X/30G24K31A1M
DBETBEX-1X/315G24K0B5M
DBETBEX-1X/315G24K31A1M
DBETBEX-1X/315G24K31F1M
DBETBEX-1X/315G24K31F1V
DBETBEX-1X/80G24K31A1M
DBETBEX-1X/80G24K31F1M
DBETBEX-1X/80G24K31F1V
DBE6X-1X/315G24-8NZ4M
DBET-6X/100G24-8K4V
DBET-6X/100G24K4M
DBET-6X/100G24K4V
DBET-6X/100YG24-8K4V
DBET-6X/100YG24-8K4V-7
DBET-6X/100YG24K4M
DBET-6X/100YG24K4V
DBET-6X/200G24-8K4V
DBET-6X/200G24K4M
DBET-6X/200G24K4V
DBET-6X/200G24K4V=LB
DBET-6X/200YG24-8K4V
DBET-6X/200YG24-8K4V-7
DBET-6X/200YG24K4M
DBET-6X/200YG24K4V
DBET-6X/250G24K4M
DBET-6X/250YG24K4M
DBET-6X/315G24-8K4M
DBET-6X/315G24-8K4V
DBET-6X/315G24K4M
DBET-6X/315G24K4V
DBET-6X/315G24K4V=DE
DBET-6X/315G24K4V=LB
DBET-6X/315YG24-8K4M
DBET-6X/315YG24-8K4V
DBET-6X/315YG24-8K4V-7
DBET-6X/315YG24K4M
DBET-6X/315YG24K4V
DBET-6X/350G24K4VRD29162
DBET-6X/350G24-8K4M
DBET-6X/350G24-8K4V
DBET-6X/350G24K4M
DBET-6X/350G24K4V
DBET-6X/350YG24-8K4M
DBET-6X/350YG24-8K4V
DBET-6X/350YG24-8K4V-7
DBET-6X/350YG24K4M
DBET-6X/350YG24K4V
DBET-6X/420G24-8K4V
DBET-6X/420G24K4V
DBET-6X/420YG24K4V
DBET-6X/50G24-8K4M-6
DBET-6X/50G24-8K4V
DBET-6X/50G24K4V
DBET-6X/50YG24-8K4M
DBET-6X/50YG24-8K4V-7
DBET-6X/50YG24K4V
DBET-6X=350G24K4V
DBET-6X=420G24K4V-320
DBETE-6X/100G24K31A1V
DBETE-6X/100G24K31F1M
DBETE-6X/100G24K31F1V
DBETE-6X/100YG24K31A1V
DBETE-6X/100YG24K31F1V
DBETE-6X/100YG24K31F1V-1
DBETE-6X/200G24K31A1M
DBETE-6X/200G24K31A1V
DBETE-6X/200G24K31A1V=LB
Frequently Asked Questions
What is the nominal pressure rating and maximum flow rate?

The nominal pressure rating is 200 bar, and the maximum flow rate is 2 L/min at this pressure. For optimal performance, it's recommended to operate within these specified limits.

What are the electrical specifications for this valve?

The valve requires a 24 V DC power supply (permissible range: 21-35 V DC). The control input accepts an analog 0 to 10 V signal. Electrical connection is via a 6-pin plug with PE, compliant with DIN 43563 standard.

What is the protection class and operating temperature range?

The valve has an IP65 protection class, making it dust-tight and protected against water jets. The ambient temperature range for operation is -20 °C to +50°C.

What hydraulic fluids and seal materials are compatible?

This model is compatible with mineral-based hydraulic oils (HL, HLP per DIN 51524 standards), with a viscosity range of 10-800 mm²/s. The seal material is FKM (fluorocarbon rubber), indicated by the 'V' suffix in the model number.

What is the typical response time and hysteresis performance?

The typical response time for a full signal change is less than 70 ms. The hysteresis is typically ≤ 1%, ensuring precise pressure control with minimal deviation.

What is the difference between nominal pressure and maximum operating pressure?

The nominal pressure (200 bar) is the recommended continuous operating pressure, while the maximum operating pressure (420 bar) is the peak pressure the valve can withstand for short durations. For long-term reliability, operation should primarily be at or below the nominal pressure.
