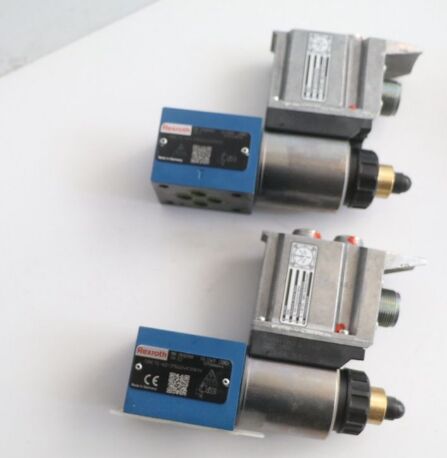

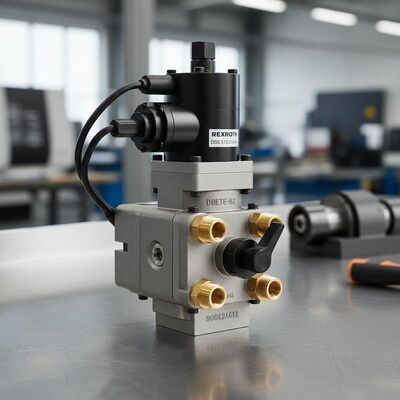

DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve

DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve
DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve

Large Image :  DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: DBETE-52/315G24K31A1M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/A,D/P,L/C
Supply Ability: 100
Contact Now

DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve

Description
Seal Type: Lip Seal Or Mechanical Seal Displacement: 10 To 250 Cc/rev
Color: Deep Gray Or Customized Drive Mode: Mechanically Driven Pump
After Serive: Online Video Transport Package: Wooden Box
Pressure Rating: 280 Bar
Highlight:

Rexroth proportional hydraulic relief valve

,

German made Rexroth pilot valve

,

Rexroth hydraulic valve with warranty

DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve
DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve
Technical Specifications
Product Model DBETE-52/315G24K31A1M
Nominal Pressure Rating 315 bar (maximum operating pressure at port P)
Supply Voltage 24 V DC (±10%, 21 to 35 V DC permissible range)
Electrical Connection 6-pin plug + PE, compliant with DIN 43563 standard
Control Signal Input 0 to 10 V analog signal (A1 type)
Protection Class IP65 (dust-tight and protected against water jets)
Ambient Temperature Range -20 °C to +50 °C (operating temperature)
Hydraulic Fluid Compatibility Mineral-based hydraulic oils (HL, HLP per DIN 51524), viscosity range: 10-800 mm²/s
Seal Material NBR (nitrile rubber, indicated by 'M' suffix)
Maximum Flow Rate 2 L/min (at nominal pressure)
DBETE-52/315G24K31A1M German made Rexroth proportional hydraulic pilot relief valve 0
Related Product Models
DBET-6X/350G24-8K4M
DBET-6X/350G24-8K4V
DBET-6X/350G24K4M
DBET-6X/350G24K4V
DBET-6X/350YG24-8K4M
DBET-6X/350YG24-8K4V
DBET-6X/350YG24-8K4V-7
DBET-6X/350YG24K4M
DBET-6X/350YG24K4V
DBET-6X/420G24-8K4V
DBET-6X/420G24K4V
DBET-6X/420YG24K4V
DBET-6X/50G24-8K4M-6
DBET-6X/50G24-8K4V
DBET-6X/50G24K4V
DBET-6X/50YG24-8K4M
DBET-6X/50YG24-8K4V-7
DBET-6X/50YG24K4V
DBET-6X=350G24K4V
DBET-6X=420G24K4V-320
DBETE-6X/100G24K31A1V
DBETE-6X/100G24K31F1M
DBETE-6X/100G24K31F1V
DBETE-6X/100YG24K31A1V
DBETE-6X/100YG24K31F1V
DBETE-6X/100YG24K31F1V-1
DBETE-6X/200G24K31A1M
DBETE-6X/200G24K31A1V
DBETE-6X/200G24K31A1V=LB
DBETE-6X/200G24K31F1M
DBETE-6X/200G24K31F1V
DBETE-6X/200YG24K31A1V
DBETE-6X/200YG24K31F1V
DBETE-6X/250G24K31A1V
DBETE-6X/250G24K31F1V
DBETE-6X/250YG24K31A1M
DBETE-6X/250YG24K31A1V
DBETE-6X/315G24K31A1M
DBETE-6X/315G24K31A1V
DBETE-6X/315G24K31F1M
DBETE-6X/315G24K31F1V
DBETE-6X/315YG24K31A1M
DBETE-6X/315YG24K31A1V
DBETE-6X/315YG24K31F1V
DBETE-6X/350G24K31A1V
DBETE-6X/350G24K31A1V=LB
DBETE-6X/350G24K31F1V
DBETE-6X/350YG24K31A1M
DBETE-6X/350YG24K31A1V
DBETE-6X/350YG24K31F1V
0811402036 DBETX-1X/50G24-8NZ4M
0811402018 DBETX-1X/80G24-8NZ4M
0811402017 DBETX-1X/180G24-8NZ4M
0811402019 DBETX-1X/250G24-8NZ4M
0811402016 DBETX-1X/315G24-8NZ4M
0811402034 DBETX-1X/50G24-25NZ4M
0811402030 DBETX-1X/80G24 25NZ4M
0811402031 DBETX-1X/180G24-25NZ4M
0811402035 DBETX-1X/250G24-25NZ4M
0811402032 DBETX-1X/315G24-25Z4M
0811402013 DBETBX-1X/28G24-37Z4M
0811402007 DBETBX-1X/80G24-37Z4M2
0811402003 DBETBX-1X/180G24-37Z4M
0811402001 DBETBX-1X/250G24-37Z4M2
0811402004 DBETBX-1X/315G24-37Z4M
DBETX-1X/50G24-8NZ4M
DBETX-1X/80G24-8NZ4M
DBETX-1X/315G24-8NZ4M
DBETX-1X/180G24-8NZ4M
DBETX-1X/250G24-8NZ4M
DBETX-1X/80G24-25NZ4M
Frequently Asked Questions
What is the maximum operating pressure and flow rate of this valve?
The maximum operating pressure is 315 bar (at port P), and the maximum flow rate is 2 L/min. For pressure ratings at or above 315 bar, flow limitations should be observed to ensure proper valve function and longevity.
What are the electrical requirements and control signal specifications?
This valve operates on a 24 V DC power supply (permissible range: 21-35 V DC). The control signal input is an analog 0 to 10 V signal (A1 type). The electrical connection uses a 6-pin plug with PE, compliant with DIN 43563 standard.
What is the protection class and ambient temperature range for operation?
The valve has an IP65 protection class (dust-tight and protected against water jets). The recommended ambient temperature range for operation is -20 °C to +50°C.
What hydraulic fluids and seal materials are compatible?
This model is compatible with mineral-based hydraulic oils (HL, HLP per DIN 51524 standards), with a viscosity range of 10-800 mm²/s. The seal material is NBR (nitrile rubber), indicated by the 'M' suffix in the model number.
What is the typical response time and hysteresis of this proportional valve?
The typical response time for a full signal change is less than 70 ms. The hysteresis is typically ≤ 1%, ensuring precise pressure control with minimal deviation between increasing and decreasing pressure cycles.
