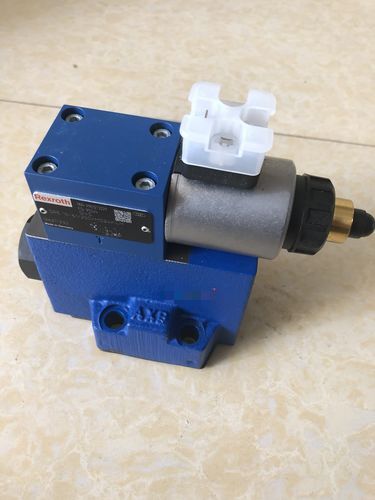

DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany

DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany
DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany

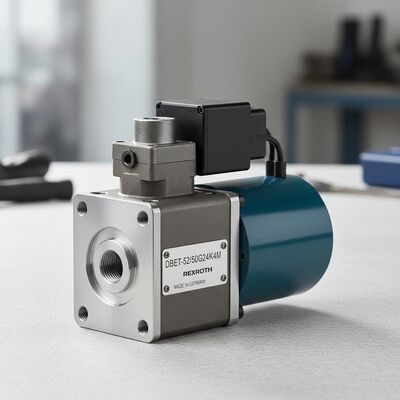

Large Image :  DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: DBET-52/50G24K4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany

Description
Condition: Internal Meshing Principle Seal Type: Lip Seal Or Mechanical Seal
Flowrate: Up To 200 L/min Pump: Rexroth
Drivetype: Shaft Driven Mountingtype: Flange Mount
Service: Free Maintenance
Highlight:

Rexroth DBET proportional relief valve

,

DBET-52/50G24K4M hydraulic valve

,

German-made Rexroth relief valve

DBET-52/50G24K4M Rexroth DBET Series Proportional Relief Valve
Direct-operated proportional pressure relief valve, poppet design, manufactured in Germany
Technical Specifications
Product Type Direct-operated proportional pressure relief valve, poppet design
Nominal Size 6
Component Series 52 (50 to 59 series, unchanged installation dimensions)
Set Pressure Stage 50 bar
Maximum Operating Pressure 350 bar
Maximum Flow Rate 3 L/min (at 50 bar pressure stage)
Power Supply 24 VDC (G24)
Electrical Connection With component plug per DIN EN 175301-803 (K4), for proportional solenoid and position sensor
Seal Material NBR (Nitrile Rubber), suitable for mineral oil (HL, HLP) to DIN 51524
Mounting Interface Subplate mounting according to ISO 4401-03-02-0-94 (CETOP D)
Control Electronics Requires external amplifier (e.g., VT5003, VT-VRPD-1 series)
DBET-52/50G24K4M Rexroth DBET series proportional relief valve made in Germany 0
Related Product Models
DBETR-1X/80G24K4M
DBETR-1X/180G24K4M
DBETR-1X/230G24K4M
DBETR-1X/315G24K4M
DBETR-1X/350G24K4M
DBET-52/50G24K4M
DBETE-52/100G24K31F1M
DBETE-52/350G24K31F1M
DBETE-52/350G24K31A1V
DBETE-52/350G24K31A1M
DBETE-52/315G24K31F1V
DBETE-52/315G24K31F1M
DBETE-52/315G24K31A1V
DBETE-52/315G24K31A1M
DBETE-52/200G24K31F1V
DBETE-52/200G24K31F1M
DBETE-52/200G24K31A1V
DBETE-52/200G24K31A1M
DBETE-52/100G24K31F1V
DBETE-52/100G24K31A1V
DBET-52/50G24K4V
DBETE-52/100G24K31A1M
DBETE-52/50G24K31F1V
DBETE-52/50G24K31F1M
DBETE-52/50G24K31A1V
DBETE-52/50G24K31A1M
DBET-52/350G24K4V
DBET-52/350G24K4M
DBET-52/315G24K4V
DBET-52/315G24K4M
DBET-52/200G24K4V
DBET-52/200G24K4M
DBET-52/100G24K4V
DBET-52/100G24K4M
DBETE-52/350G24K31F1V
DBETE-5X/50G24K31A1M
DBETE-5X/100G24K31A1V
DBETE-5X/350G24K31F1M
DBETE-5X/350G24K31A1V
DBETE-5X/350G24K31A1M
DBETE-5X/315G24K31F1V
DBETE-5X/315G24K31A1V
DBETE-5X/315G24K31A1M
DBETE-5X/200G24K31F1V
DBETE-5X/200G24K31F1M
DBETE-5X/200G24K31A1V
DBETE-5X/200G24K31A1M
DBETE-5X/100G24K31F1V
DBETE-5X/100G24K31F1M
DBETE-5X/100G24K31A1M
DBET-5X/350G24K4V
Frequently Asked Questions
What is the set pressure stage of this valve?
The DBET-52/50G24K4M has a set pressure stage of 50 bar, which is the maximum settable pressure for this model. This lower pressure setting makes it suitable for applications requiring precise low-pressure control.
What is the maximum flow rate at this pressure stage?
The maximum flow rate is 3 L/min when operating at the 50 bar pressure setting. This flow capacity is specified for the rated pressure stage and may vary with different system conditions.
What does the "52" in the model number indicate?
The "52" denotes the component series (50 to 59 series), which has unchanged installation and connection dimensions within this range. This differs from the "1X" series (10-19) models discussed previously.
What electrical connection standard is used?
It uses a component plug per DIN EN 175301-803 (K4) standard for both the proportional solenoid and the integrated position sensor. The plug-in connector is typically ordered separately.
Is an external amplifier required?
Yes, this valve requires an external amplifier (such as VT5003, VT-VRPD-1, or compatible models) to provide the control signal and process position feedback. The amplifier must be compatible with 24 VDC supply.
What hydraulic fluids are compatible?
The NBR (Nitrile Rubber) seals are suitable for standard mineral-based hydraulic oils conforming to HL and HLP classifications according to DIN 51524. Always verify fluid compatibility with your specific application.
What is the mounting interface?
The valve is designed for subplate mounting according to ISO 4401-03-02-0-94 (CETOP D) standard. The appropriate subplate must be ordered separately based on the installation requirements.
