DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth

DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth
DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth

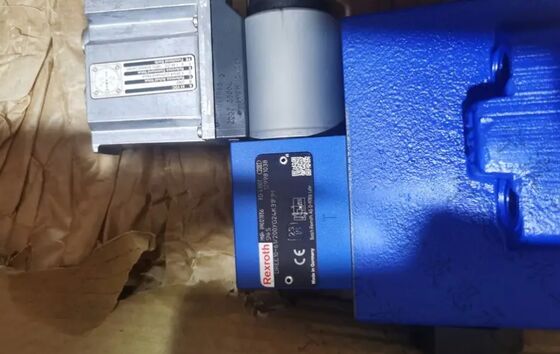

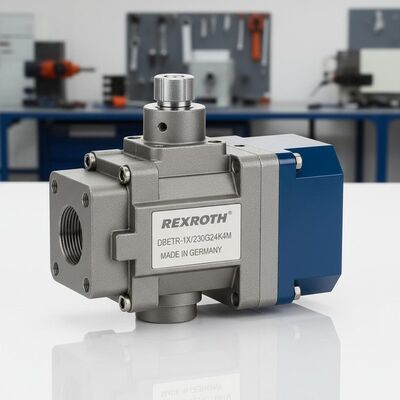

Large Image :  DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: DBETR-1X/230G24K4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth

Description
Material: High-strength Steel And Aluminum After Serive: Online Video
Seal Type: Lip Seal Or Mechanical Seal Drivetype: Shaft Driven
Rotation: Clockwise Or Counterclockwise Origin: Germany
Pressure: Standard, High Pressure
Highlight:

Rexroth proportional relief valve

,

Pilot operated hydraulic valve

,

Germany made Rexroth valve

DBETR-1X/230G24K4M Pilot Operated Proportional Relief Valve
Direct-operated proportional pressure relief valve, poppet design manufactured in Germany by Rexroth
Product Type Direct-operated proportional pressure relief valve, poppet design
Nominal Size 6
Component Series 1X (10 to 19)
Set Pressure Stage 230 bar
Maximum Operating Pressure 350 bar
Maximum Flow Rate 3 L/min (for 230 bar pressure stage)
Power Supply 24 VDC (G24)
Electrical Connection With component plug per DIN EN 175301-803 (K4), for proportional solenoid and position sensor
Seal Material NBR (Nitrile Rubber), suitable for mineral oil (HL, HLP) to DIN 51524
DBETR-1X/230G24K4M Pilot operated proportional relief valve made in Germany by Rexroth 0
Related Product Models
DBEBE6X-1X/180G24K31F1M
DBEBE6X-1X/80G24K31A1M
DBEBE6X-1X/180G24K31A1M
DBEBE6X-1X/315G24K31A1M
DBETR-1X/30G24K4M
DBETR-1X/80G24K4M
DBETR-1X/180G24K4M
DBETR-1X/230G24K4M
DBETR-1X/315G24K4M
DBETR-1X/350G24K4M
DBET-52/50G24K4M
DBETE-52/100G24K31F1M
DBETE-52/350G24K31F1M
DBETE-52/350G24K31A1V
DBETE-52/350G24K31A1M
DBETE-52/315G24K31F1V
DBETE-52/315G24K31F1M
DBETE-52/315G24K31A1V
DBETE-52/315G24K31A1M
DBETE-52/200G24K31F1V
DBETE-52/200G24K31F1M
DBETE-52/200G24K31A1V
DBETE-52/200G24K31A1M
DBETE-52/100G24K31F1V
DBETE-52/100G24K31A1V
DBET-52/50G24K4V
DBETE-52/100G24K31A1M
DBETE-52/50G24K31F1V
DBETE-52/50G24K31F1M
DBETE-52/50G24K31A1V
DBETE-52/50G24K31A1M
DBET-52/350G24K4V
DBET-52/350G24K4M
DBET-52/315G24K4V
DBET-52/315G24K4M
DBET-52/200G24K4V
DBET-52/200G24K4M
DBET-52/100G24K4V
DBET-52/100G24K4M
DBETE-52/350G24K31F1V
DBETE-5X/50G24K31A1M
DBETE-5X/100G24K31A1V
DBETE-5X/350G24K31F1M
DBETE-5X/350G24K31A1V
DBETE-5X/350G24K31A1M
DBETE-5X/315G24K31F1V
DBETE-5X/315G24K31A1V
DBETE-5X/315G24K31A1M
DBETE-5X/200G24K31F1V
DBETE-5X/200G24K31F1M
DBETE-5X/200G24K31A1V
DBETE-5X/200G24K31A1M
DBETE-5X/100G24K31F1V
DBETE-5X/100G24K31F1M
DBETE-5X/100G24K31A1M
DBET-5X/350G24K4V
DBETE-5X/50G24K31F1V
DBETE-5X/50G24K31F1M
DBET-5X/350G24K4M
DBET-5X/315G24K4V
DBET-5X/315G24K4M
DBET-5X/200G24K4V
DBET-5X/200G24K4M
DBET-5X/100G24K4V
DBET-5X/100G24K4M
DBET-5X/50G24K4V
DBET-5X/50G24K4M
DBETE-5X/50G24K31A1V
DBETE-5X/315G24K31F1M
DBETE-5X/350G24K31F1V
DBETBEX-1X/310G24K31A1M
DBETFX-1X/80G24-27NZ4M
DBETFX-1X/180G24-27NZ4M
DBETFX-1X/250G24-27NZ4M
Frequently Asked Questions
What is the main difference between DBETR-1X/230G24K4M and DBETR-1X/180G24K4M?
The primary difference is the set pressure stage: the 230 model has a maximum settable pressure of 230 bar, while the 180 model is set to 180 bar. All other specifications (nominal size, electrical connection, mounting interface, seal material) remain identical between these two models.
What is the maximum flow rate for this valve?
The maximum flow rate is 3 L/min when operating at the 230 bar pressure setting. This flow capacity is specified for the rated pressure stage and may vary with different pressure settings or system conditions.
What type of electrical connection does this valve use?
It uses a component plug per DIN EN 175301-803 (K4) for both the proportional solenoid and the integrated position sensor. Note that the plug-in connector is typically ordered separately from the valve itself.
Is an external amplifier required for operation?
Yes, this valve requires an external amplifier (such as VT5003, VT-VRPD-1, or VT11025 series) to provide the control signal and process the position feedback. The amplifier must be compatible with 24 VDC supply and the valve's electrical characteristics.
What hydraulic fluids are compatible with this valve?
The NBR (Nitrile Rubber) seals are suitable for use with standard mineral-based hydraulic oils conforming to HL and HLP classifications according to DIN 51524. Always verify fluid compatibility with your specific application requirements.
