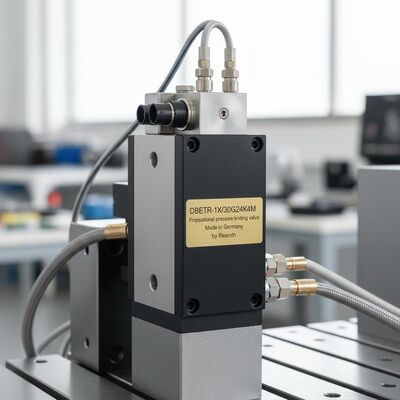

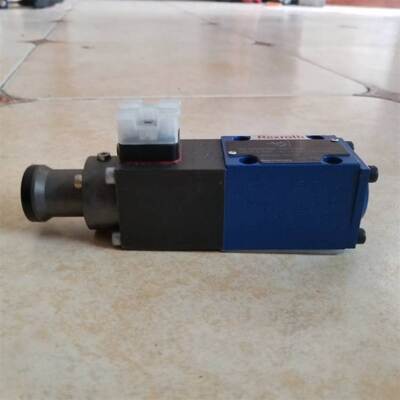

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth
DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

Large Image :  DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: DBETR-1X/30G24K4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

Description
Sealtype: NBR Or Viton Seals Material: High-strength Steel And Aluminum
Outlet Port Size: G3/4 Delivery Date: 5 Days
Condition: New Charging: Micro5p
Mountingtype: Flange Mount
Highlight:

Rexroth DBETR hydraulic valve

,

Proportional pressure limiting valve

,

Rexroth DBETR valve Germany

DBETR-1X/30G24K4M Proportional Pressure Limiting Valve

Direct-operated proportional relief valve manufactured in Germany by Rexroth.

Technical Specifications
Parameter Specification
Product Series & Type DBETR series, Direct-operated proportional relief valve
Nominal Size NG6 (port size corresponding to ISO 4401 standard)
Maximum Operating Pressure 315 bar (system pressure)
Pressure Setting Range 0 to 30 bar (adjustable via electrical signal)
Supply Voltage 24 V DC (±10%)
Nominal Current Typically 0.8-1.0 A (at 20°C)
Coil Resistance Approximately 19-29 Ω (at 20°C)
DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth 0
Related Product Models
DBETE-5X/315G24K31F1M
DBETE-5X/350G24K31F1V
DBETBEX-1X/310G24K31A1M
DBETFX-1X/80G24-27NZ4M
DBETFX-1X/180G24-27NZ4M
DBETFX-1X/250G24-27NZ4M
DBETFX-1X/315G24-27NZ4M
DBETX-10/50G24-8NZ4M
DBETX-10/80G24-8NZ4M
DBETX-10/180G24-8NZ4M
DBETX-10/50G24-25NZ4M
DBETX-10/80G24-25NZ4M
DBETX-10/180G24-25NZ4M
DBETX-10/250G24-25NZ4M
DBETX-10/315G24-25Z4M
DBET6X/50G24K4V
DBET6X/100G24K4V
DBETB-6X/315G24K31A1V
DBETB-6X/350G24K31A1V
DBE6X-1X/80G24-8NZ4M
DBE6X-1X/180G24-8NZ4M
DBE6X-1X/80G24-25NZ4M
DBE6X-1X/180G24-25NZ4M
DBE6X-1X/315G24-25NZ4M
DBEBE6X-1X/80G24K31F1M
DBE10Z-1X/180XYG24-8NZ4M
DBE10Z-1X/315XYG24-8NZ4M
DBEB10Z-1X/180XYG24-37Z4M
DBEB10Z-1X/315XYG24-37Z4M
DBEBE10Z-1X/180XYG24K31A1M
DBEBE10Z-1X/315XYG24K31A1M
DBEME20DBEME30
DBEME10-5X/50YG24K31M
DBEME10-5X/100YG24K31M
DBEME10-5X/200YG24K31M
DBEME10-5X/315YG24K31M
DBEME10-5X/350YG24K31M
DBEME20-5X/50YG24K31M
DBEME20-5Xyi00YG24K31M
DBEME20-5X/200YG24K31M
DBEME20-5X/315YG24K31M
DBEME20-5X/350YG24K31M
DBEME30-3X/50YG24K31M
DBEME30-3X/100YG24K31M
DBEME30-3X/200YG24K31M
DBEME30-3X/315YG24K31M
DBEME30-3X/350YG24K31M
DBEE6-1X/50YG24K31M
DBEE6-1X/100YG24K31M
DBEE6-1X/200YG24K31M
DBEE6-1X/315YG24K31M
ZDBEE6VP2-1X/50G24K31M
ZDBEE6VP2-1X/100G24K31M
ZDBEE6VP2-1X/200G24K31M
ZDBEE6VP2-1X/315G24K31M
Frequently Asked Questions
What is the main function of this valve?
This is a direct-operated proportional relief valve. Its primary function is to continuously and precisely regulate hydraulic system pressure by receiving electrical control signals (typically 0-20mA or 0-10V), while also serving as a safety valve to prevent system overpressure. It's designed for remote electrical control of pressure in hydraulic systems.
What does the "30" in the model code indicate?
The "30" specifies the maximum pressure setting capability of 30 bar. This is a lower pressure range compared to other models in the DBETR series. The valve can be electrically adjusted to regulate pressure from 0 to 30 bar. This makes it suitable for applications requiring precise low-pressure control.
What are the key electrical specifications?
  • Operating voltage: 24V DC (±10%)
  • Nominal current: Typically 0.8-1.0 A (varies by coil type)
  • Coil resistance: Approximately 19-29 Ω (at 20°C)
  • Electrical connection: DIN 43650 standard plug connector (K4 type)
  • Requires compatible proportional amplifier
  • Control signal: 0-10V or 4-20mA
What does the "K4" suffix indicate?
The "K4" indicates the electrical connection type. Specifically, it means the valve comes with a DIN 43650 standard plug connector (without mating connector) for the proportional solenoid. The "K" series typically refers to the connector configuration, with "K4" being a specific variant in this product family.
How does this model differ from the DBEBE series models?
The DBETR series is a different product family from the DBEBE series. Key differences include:
  • Different series designation (DBETR vs DBEBE)
  • Different pressure setting capabilities (DBETR has 30 bar option, DBEBE typically starts at 80 bar)
  • Potentially different internal design and performance characteristics
  • Different model code structure and component series
  • For exact differences, always consult the specific datasheets for each series
What are the installation and maintenance considerations?
  • Port size: NG6 (ISO 4401 standard)
  • Fluid cleanliness: ISO 4406 class 20/18/15 or cleaner recommended
  • Temperature range: -20°C to +80°C (fluid), -20°C to +70°C (ambient)
  • Sealing material: Typically NBR (nitrile rubber)
  • Requires proper bleeding during commissioning
  • Regular inspection of electrical connections and fluid quality
  • Compatible with standard subplates (ISO 4401-03-02-0-94)
