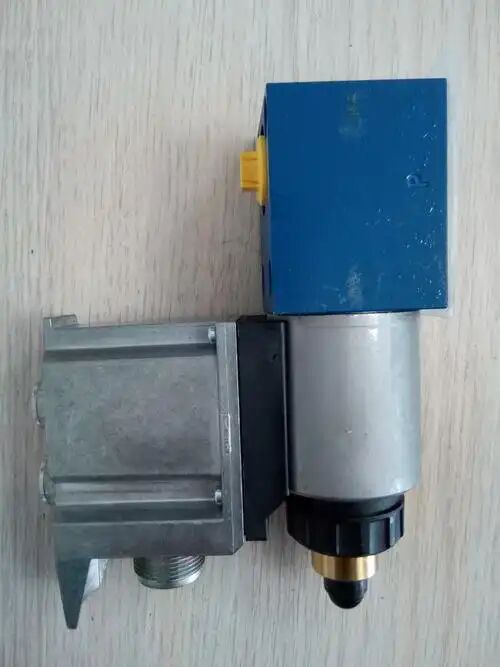

DBEP6B06-1X/45AG24K4M German made DBEP series proportional relief valve Rexroth

DBEP6B06-1X/45AG24K4M German made DBEP series proportional relief valve Rexroth

This is a direct-operated proportional relief valve. Its primary function is to continuously and precisely regulate hydraulic system pressure by receiving electrical control signals (typically 0-20mA or 0-10V), while also serving as a safety valve to prevent system overpressure.

• DBEP6: Product series (DBEP) and nominal size (NG6 port size)
• B06: "B" indicates a specific spool configuration variant, "06" refers to orifice size
• 45: Maximum pressure setting capability (45 bar)
• G24: 24V DC operating voltage
• K4M: Specific coil type and electrical characteristics

• Operating voltage: 24V DC (±10%)
• Nominal current: Typically 0.8 A at 20°C
• Coil resistance: Approximately 19-29 Ω
• Electrical connection: DIN 43650 standard plug connector
• Continuous duty: 100% (suitable for continuous operation)

The valve can be set to regulate pressure from 0 to 45 bar. Pressure is controlled by an external electrical signal (usually 0-10V or 0-20mA) sent to the proportional solenoid. The "B" variant may offer different pressure control characteristics compared to "A" versions.

• Mounting: NG6 port size (ISO 4401 standard)
• Fluid cleanliness: ISO 4406 class 20/18/15 or cleaner recommended
• Temperature range: -20°C to +80°C (fluid), -20°C to +70°C (ambient)
• Requires proper bleeding during commissioning
• Must be used with a compatible proportional amplifier

• Verify electrical signal integrity and connections
• Check fluid cleanliness and filter condition
• Inspect for air in the system (bleed if necessary)
• Check for mechanical damage or contamination in the valve
• Ensure the proportional amplifier is properly configured

• Search the complete model number (DBEP6B06-1X/45AG24K4M) on the manufacturer's official website
• Download the product datasheet and technical manual
• Contact authorized distributors or technical support with the full model number
• Request the specific datasheet that includes "B" variant characteristic
