DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve

DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve
DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve

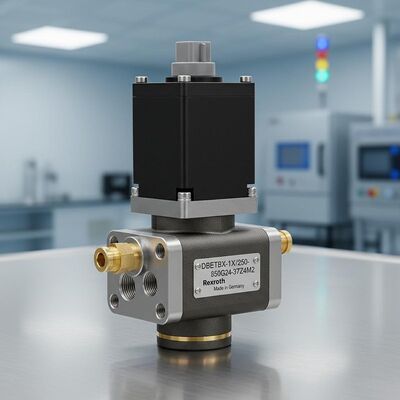

Large Image :  DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO9001
Model Number: DBETBX-1X/250G24-37Z4M2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve

Description
Electrical Connection​: 4-pin M12 Connector (37Z4) Mounting Interface​: ISO 4401-03-02-0-05
Response Time​: < 100 Ms Maximum Operating Pressure​: 350 Bar
Control Signal​: 0-10 V Or 4-20 MA (depending On Version)
Highlight:

Rexroth proportional relief valve German made

,

Rexroth hydraulic valve with warranty

,

proportional relief valve 250G24-37Z4M2

DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve
Technical Specifications
Parameter Specification
Product Type Proportional Pressure Relief Valve
Series DBETBX-1X
Nominal Size NG10 (ISO 4401)
Maximum Operating Pressure 350 bar
Pressure Setting 250 bar
Nominal Flow Rate 4 L/min
Control Voltage 24 V DC
Control Signal 0-10 V or 4-20 mA (depending on version)
Electrical Connection 4-pin M12 connector (37Z4)
Seal Material NBR (standard), FKM optional
Mounting Interface ISO 4401-03-02-0-05
Operating Temperature Range -20°C to +80°C
Fluid Compatibility Mineral-based hydraulic oils (ISO VG 15-68)
Weight Approx. 2.1 kg
Protection Class IP65 (with connector)
Response Time < 100 ms
Linearity < ±3%
Hysteresis < 3%
Model Code Breakdown
  • DBETBX-1X: Series designation (1X size series)
  • 250G: Pressure setting 250 bar (G code)
  • 24: 24 V DC power supply
  • 37Z4: Electrical connection type (M12 connector with specific pin configuration)
  • M2: Additional options/features code
DBETBX-1X/250G24-37Z4M2 German made Rexroth proportional relief valve 0
Related Product Models
DBETR-1X/80G24K4M
DBETR-1X/180G24K4M
DBETR-1X/230G24K4M
DBETR-1X/315G24K4M
DBETR-1X/350G24K4M
DBET-52/50G24K4M
DBETE-52/100G24K31F1M
DBETE-52/350G24K31F1M
DBETE-52/350G24K31A1V
DBETE-52/350G24K31A1M
DBETE-52/315G24K31F1V
DBETE-52/315G24K31F1M
DBETE-52/315G24K31A1V
DBETE-52/315G24K31A1M
DBETE-52/200G24K31F1V
DBETE-52/200G24K31F1M
DBETE-52/200G24K31A1V
DBETE-52/200G24K31A1M
DBETE-52/100G24K31F1V
DBETE-52/100G24K31A1V
DBET-52/50G24K4V
DBETE-52/100G24K31A1M
DBETE-52/50G24K31F1V
DBETE-52/50G24K31F1M
DBETE-52/50G24K31A1V
DBETE-52/50G24K31A1M
DBET-52/350G24K4V
DBET-52/350G24K4M
DBET-52/315G24K4V
DBET-52/315G24K4M
DBET-52/200G24K4V
DBET-52/200G24K4M
DBET-52/100G24K4V
DBET-52/100G24K4M
DBETE-52/350G24K31F1V
DBETE-5X/50G24K31A1M
DBETE-5X/100G24K31A1V
DBETE-5X/350G24K31F1M
DBETE-5X/350G24K31A1V
DBETE-5X/350G24K31A1M
DBETE-5X/315G24K31F1V
DBETE-5X/315G24K31A1V
DBETE-5X/315G24K31A1M
DBETE-5X/200G24K31F1V
DBETE-5X/200G24K31F1M
DBETE-5X/200G24K31A1V
DBETE-5X/200G24K31A1M
DBETE-5X/100G24K31F1V
DBETE-5X/100G24K31F1M
DBETE-5X/100G24K31A1M
DBET-5X/350G24K4V
Frequently Asked Questions
What is the primary function of the DBETBX-1X/250G24-37Z4M2 valve?

The DBETBX-1X/250G24-37Z4M2 is a proportional pressure relief valve. Its main function is to remotely control and limit the maximum pressure in a hydraulic system. It allows for infinitely variable pressure setting via an electrical control signal (0-10 V or 4-20 mA), providing precise pressure regulation to protect system components and optimize performance. Unlike standard relief valves that open fully at a set pressure, it opens gradually for smoother control.
