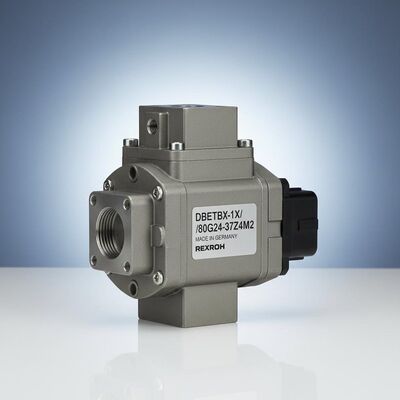

DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth

DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth
DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth

Large Image :  DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: DBETBX-1X/80G24-37Z4M2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,D/P,T/T,D/A,L/C
Supply Ability: 100
Contact Now

DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth

Description
Mineral-based Hydraulic Oils: ISO VG 15-68 Standard Seal Material Is NBR: Suitable For Mineral Oils
Optional FKM (Viton: Seals Available For Wider Fluid Compatibility Viscosity Range: 20-380 Mm²/s
Fluid Cleanliness: Maximum ISO 4406 Class 20/18/15 Recommended
Highlight:

Rexroth proportional relief valve

,

Hydraulic relief valve Germany

,

Rexroth valve 80G24-37Z4M2

DBETBX-1X/80G24-37Z4M2 Proportional Relief Valve
Proportional pressure relief valve manufactured in Germany by Rexroth for precise hydraulic system pressure control.
Technical Specifications
Product Type Proportional Pressure Relief Valve
Series DBETBX-1X
Nominal Size NG10 (ISO 4401)
Maximum Operating Pressure 350 bar
Pressure Setting 80 bar
Nominal Flow Rate 4 L/min
Control Voltage 24 V DC
Control Signal 0-10 V or 4-20 mA (depending on version)
Electrical Connection 4-pin M12 connector (37Z4)
Seal Material NBR (standard), FKM optional
Mounting Interface ISO 4401-03-02-0-05
Operating Temperature Range -20°C to +80°C
Fluid Compatibility Mineral-based hydraulic oils (ISO VG 15-68)
Weight Approx. 2.1 kg
Protection Class IP65 (with connector)
Response Time < 100 ms
Linearity < ±3%
Hysteresis < 3%

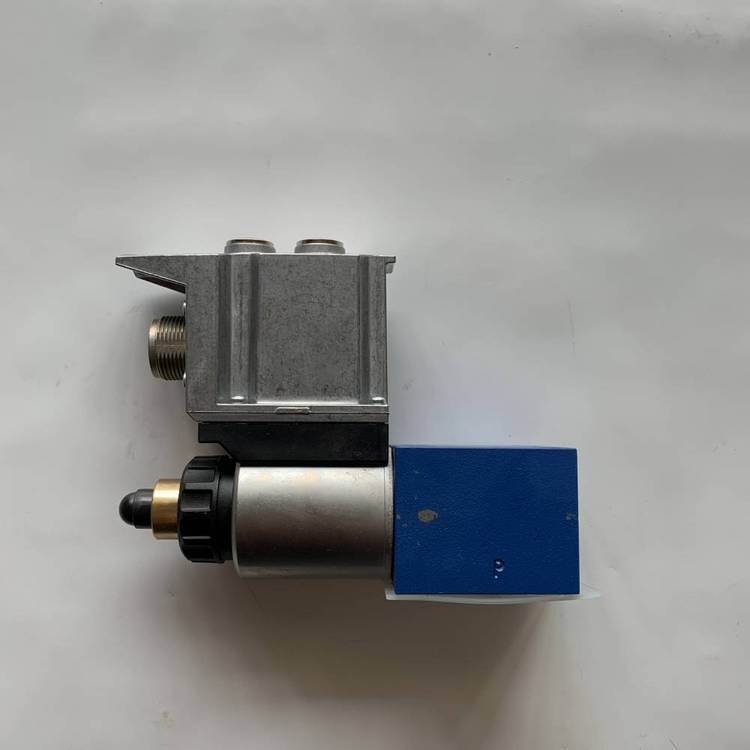

DBETBX-1X/80G24-37Z4M2 Proportional relief valve made in Germany by Rexroth 0
Related Product Models
DBET-6X/50YG24-8K4V-7
DBET-6X/50YG24K4V
DBET-6X=350G24K4V
DBET-6X=420G24K4V-320
DBETE-6X/100G24K31A1V
DBETE-6X/100G24K31F1M
DBETE-6X/100G24K31F1V
DBETE-6X/100YG24K31A1V
DBETE-6X/100YG24K31F1V
DBETE-6X/100YG24K31F1V-1
DBETE-6X/200G24K31A1M
DBETE-6X/200G24K31A1V
DBETE-6X/200G24K31A1V=LB
DBETE-6X/200G24K31F1M
DBETE-6X/200G24K31F1V
DBETE-6X/200YG24K31A1V
DBETE-6X/200YG24K31F1V
DBETE-6X/250G24K31A1V
DBETE-6X/250G24K31F1V
DBETE-6X/250YG24K31A1M
DBETE-6X/250YG24K31A1V
DBETE-6X/315G24K31A1M
DBETE-6X/315G24K31A1V
DBETE-6X/315G24K31F1M
DBETE-6X/315G24K31F1V
DBETE-6X/315YG24K31A1M
DBETE-6X/315YG24K31A1V
DBETE-6X/315YG24K31F1V
DBETE-6X/350G24K31A1V
DBETE-6X/350G24K31A1V=LB
DBETE-6X/350G24K31F1V
DBETE-6X/350YG24K31A1M
DBETE-6X/350YG24K31A1V
DBETE-6X/350YG24K31F1V
0811402036 DBETX-1X/50G24-8NZ4M
0811402018 DBETX-1X/80G24-8NZ4M
0811402017 DBETX-1X/180G24-8NZ4M
0811402019 DBETX-1X/250G24-8NZ4M
0811402016 DBETX-1X/315G24-8NZ4M
0811402034 DBETX-1X/50G24-25NZ4M
0811402030 DBETX-1X/80G24 25NZ4M
0811402031 DBETX-1X/180G24-25NZ4M
0811402035 DBETX-1X/250G24-25NZ4M
0811402032 DBETX-1X/315G24-25Z4M
0811402013 DBETBX-1X/28G24-37Z4M
0811402007 DBETBX-1X/80G24-37Z4M2
0811402003 DBETBX-1X/180G24-37Z4M
0811402001 DBETBX-1X/250G24-37Z4M2
0811402004 DBETBX-1X/315G24-37Z4M
Frequently Asked Questions
What is the primary function of the DBETBX-1X/80G24-37Z4M2 valve?
The DBETBX-1X/80G24-37Z4M2 is a proportional pressure relief valve designed to remotely control and limit system pressure in hydraulic circuits. It allows for infinitely variable pressure setting through an electrical control signal, providing precise pressure regulation to protect system components and optimize performance.
What are the key technical specifications of this model?
Key specifications include:
• Maximum Operating Pressure: 350 bar at port P
• Pressure Setting: 80 bar (as indicated by "80G" in model code)
• Nominal Flow Rate: 4 L/min
• Power Supply: 24 V DC
• Control Signal: Typically 0-10 V or 4-20 mA (depending on version)
• Mounting Interface: ISO 4401-03-02-0-05 (NG10 size)
• Electrical Connection: 4-pin M12 connector (37Z4 code)
• Operating Temperature: -20°C to +80°C
How is the valve controlled and connected electrically?
The valve features integrated electronics and is controlled by:
• Power Supply: 24 V DC (±10% tolerance)
• Command Signal: 0-10 V or 4-20 mA analog input (depending on version)
• Connection: 4-pin M12 connector (37Z4 configuration) for easy plug-and-play installation
• Protection Class: IP65 when connector is properly mated and sealed
What hydraulic fluids are compatible with this valve?
The valve is designed for use with:
• Mineral-based hydraulic oils (ISO VG 15-68)
• Standard seal material is NBR (suitable for mineral oils)
• Optional FKM (Viton) seals available for wider fluid compatibility
• Viscosity Range: 20-380 mm²/s (preferably 30-46 mm²/s at operating temperature)
• Fluid Cleanliness: Maximum ISO 4406 class 20/18/15 recommended
What are the installation and maintenance considerations?
For optimal performance:
• Mounting: Use subplate mounting according to ISO 4401 standard
• Installation Position: Can be mounted in any orientation
• System Cleanliness: Ensure hydraulic system meets recommended cleanliness levels
• Operating Conditions: Maintain fluid temperature within specified range
• Maintenance: Regular monitoring of system pressure and fluid condition
• Response Time: < 100 ms for pressure adjustment
