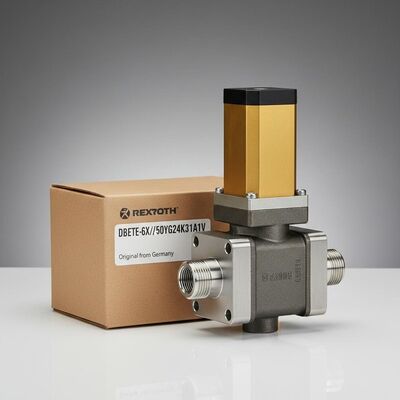

DBETE-6X/50YG24K31A1V Rexroth Proportional Relief Valve
Original from Germany
Product Overview
DBETE-6X/50YG24K31A1V Rexroth proportional relief valve, original from Germany. This direct-operated proportional pressure relief valve with integrated electronics (OBE) provides remote pressure limitation with infinitely variable setting capability.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Proportional Pressure Relief Valve with Integrated Electronics (OBE) |
| Manufacturer / Brand |
Rexroth |
| Model / Type Code |
DBETE-6X/50YG24K31A1V |
| Size |
NG6 (Nominal Size 6) |
| Component Series |
6X |
| Maximum Operating Pressure (Port P) |
420 bar |
| Maximum Flow Rate |
2 L/min |
| Pressure Rating (Max. Set Pressure) |
50 bar |
| Pilot Oil Return |
External (Port Y) |
| Supply Voltage |
24 V DC (Direct Voltage) |
| Supply Voltage Range |
21 - 35 V DC |
| Command Value Input (Interface A1) |
0 ... 10 V |

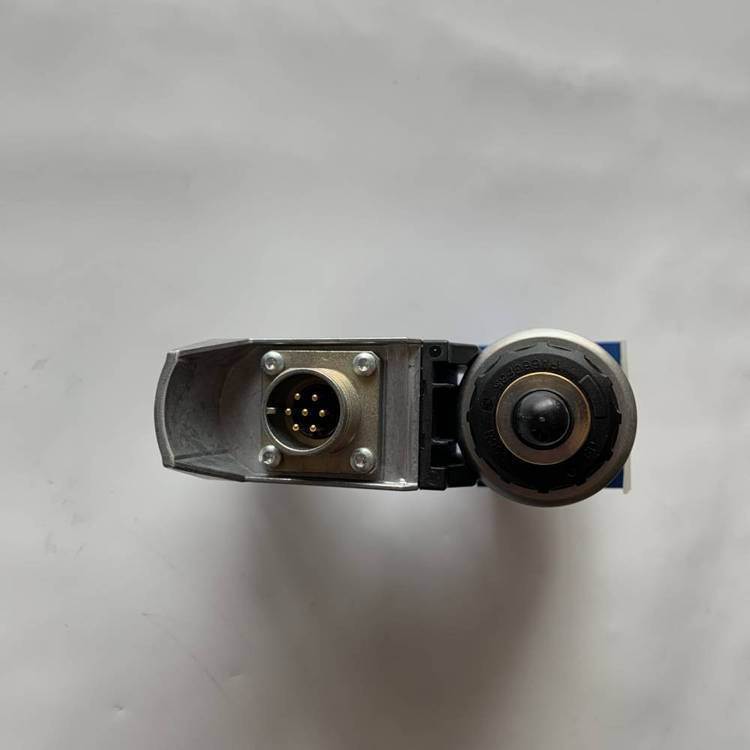

| Electrical Connector |
Without mating connector; connector per DIN EN 175201-804 (K31) |
| Seal Material |
FKM (Viton), suitable for mineral oils |
| Mounting Interface |
Subplate mounting per ISO 4401-03-02-0-05 |
| Weight (Approx.) |
1.6 kg |
| Protection Class |
IP65 (with mating connector mounted and locked) |
| Hydraulic Fluid Temperature Range |
+20 ... +80 °C |
| Ambient Temperature Range |
-20 ... +50 °C |
| Viscosity Range |
20 ... 380 mm²/s (preferably 30 ... 46 mm²/s) |
| Hydraulic Fluid Cleanliness |
Max. ISO 4406 cleanliness class 20/18/15 |
| Step Response (0% -> 100% / 100% -> 0%) |
< 80 ms |
Related Product Models
DBET-6X/350YG24K4M, DBET-6X/350YG24K4V, DBET-6X/420G24-8K4V, DBET-6X/420G24K4V, DBET-6X/420YG24K4V, DBET-6X/50G24-8K4M-6, DBET-6X/50G24-8K4V, DBET-6X/50G24K4V, DBET-6X/50YG24-8K4M, DBET-6X/50YG24-8K4V-7, DBET-6X/50YG24K4V, DBET-6X=350G24K4V, DBET-6X=420G24K4V-320, DBETE-6X/100G24K31A1V, DBETE-6X/100G24K31F1M, DBETE-6X/100G24K31F1V, DBETE-6X/100YG24K31A1V, DBETE-6X/100YG24K31F1V, DBETE-6X/100YG24K31F1V-1, DBETE-6X/200G24K31A1M, DBETE-6X/200G24K31A1V, DBETE-6X/200G24K31A1V=LB, DBETE-6X/200G24K31F1M, DBETE-6X/200G24K31F1V, DBETE-6X/200YG24K31A1V, DBETE-6X/200YG24K31F1V, DBETE-6X/250G24K31A1V, DBETE-6X/250G24K31F1V, DBETE-6X/250YG24K31A1M, DBETE-6X/250YG24K31A1V, DBETE-6X/315G24K31A1M, DBETE-6X/315G24K31A1V, DBETE-6X/315G24K31F1M, DBETE-6X/315G24K31F1V, DBETE-6X/315YG24K31A1M, DBETE-6X/315YG24K31A1V, DBETE-6X/315YG24K31F1V, DBETE-6X/350G24K31A1V, DBETE-6X/350G24K31A1V=LB, DBETE-6X/350G24K31F1V, DBETE-6X/350YG24K31A1M, DBETE-6X/350YG24K31A1V, DBETE-6X/350YG24K31F1V
Frequently Asked Questions
What is the function of the DBETE-6X/50YG24K31A1V valve?
The DBETE-6X/50YG24K31A1V is a direct-operated proportional pressure relief valve with integrated electronics (OBE). Its primary function is to remotely limit system pressure in a hydraulic system. It allows for the infinitely variable setting of the system pressure based on an electrical command value (0-10 V for the A1 version), providing precise control.
