DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany

DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany
DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany

Large Image :  DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: DBET-61/200YG24K4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany

Description
Power: Hydraulic Maximum Pressure: 280 Bar
Pump: Rexroth Usage: Oil
Pumptype: Variable Displacement / Fixed Displacement Shafttype: Splined Or Keyed Shaft
Mountingtype: Flange Mount
Highlight:

Rexroth hydraulic relief valve

,

proportional hydraulic relief valve

,

direct acting hydraulic valve

DBET-61/200YG24K4M Direct Acting Proportional Hydraulic Relief Valve
Direct acting proportional hydraulic relief valve from Rexroth, Germany
Technical Specifications
Parameter Category Specification Details / Notes
Basic Model Info Type Direct-operated proportional relief valve
Model Series DBET
Specification Size 6
Hydraulic Performance Max. Working Pressure Up to 420 bar
Max. Flow Rate Up to 2 l/min
Pressure Rating 200 bar
Operational Medium Hydraulic oil (HL, HLP, HVLP, etc.)
Electrical Characteristics Power Supply 24 VDC
Control Signal Proportional input (0-10V or 4-20mA)
Solenoid Type Proportional solenoid, 1600 mA coil
Electrical Connection 3-pole connector (DIN EN 175301-803)
Design & Mounting Connection Type Subplate mounting
Mounting Standard ISO 4401-03-02-0-05
Port Configuration P, T ports (2 ports)
Seal Material NBR
Performance Features Pressure Adjustment Remote proportional control via electrical signal
Response Time Typically < 100 ms (10-90% pressure change)
Linearity ±2% of full scale
Hysteresis <3%
Environmental Conditions Operating Temperature -20°C to +70°C (hydraulic oil)
Storage Temperature -20°C to +80°C
Protection Class IP65 (with connector)
Physical Properties Weight Approx. 1.4 kg (varies by configuration)
Material Steel housing, hardened spool
Compatibility Hydraulic Fluids Mineral oils (HL, HLP), synthetic fluids (HETG, HEES)
Control Electronics Requires external amplifier (e.g., VT-2000 series)

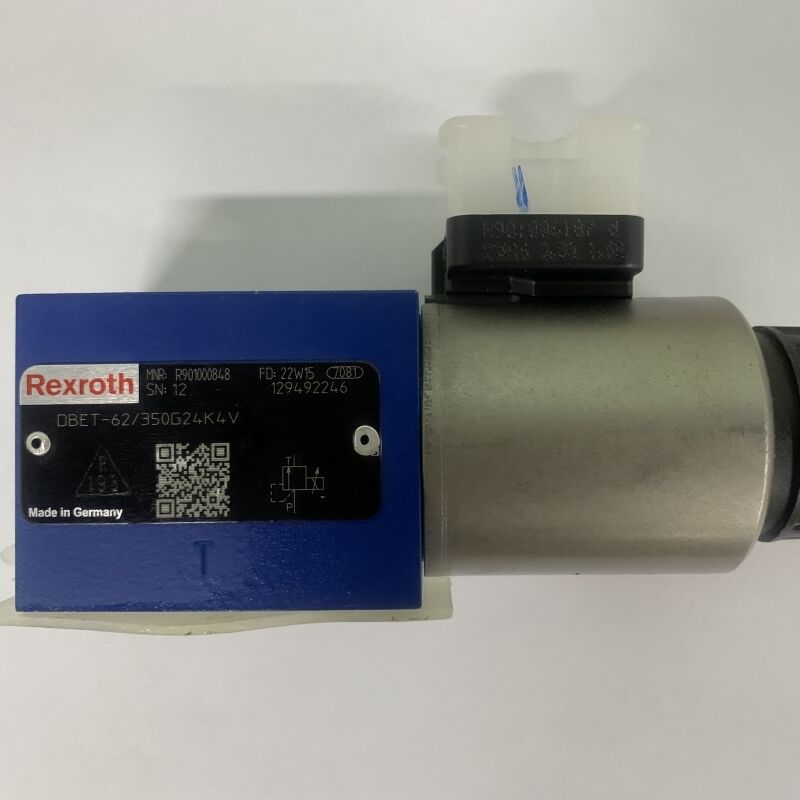

DBET-61/200YG24K4M Direct acting proportional hydraulic relief valve from Rexroth, Germany 0
Frequently Asked Questions
Q: What is the key difference between the 200 bar and 100 bar versions of this valve?
A: The primary difference is the pressure rating. The "200" in the model number indicates a 200 bar pressure setting, while "100" indicates 100 bar. This means the 200 bar version is designed for higher pressure applications. The internal spring and pressure adjustment range are calibrated accordingly. All other mechanical and electrical specifications remain essentially the same.
Q: Can I adjust the pressure setting beyond 200 bar?
A: No. The valve is factory-set and calibrated for a maximum pressure of 200 bar. Attempting to adjust it beyond this range may damage internal components, void the warranty, and create safety hazards. The maximum working pressure of the valve body is 420 bar, but the proportional control range is limited to 200 bar. For higher pressure requirements, select a valve with the appropriate pressure rating.
Q: What should I check if the pressure doesn't reach 200 bar?
A: First, verify that the input control signal is reaching the maximum value (e.g., 10V or 20mA). Check electrical connections and the external amplifier. If the signal is correct but pressure is low, inspect for internal leakage (damaged seals), contamination causing spool sticking, or possible spring fatigue. Also ensure the hydraulic pump can deliver sufficient flow and pressure to the system.
Q: Is this valve suitable for phosphate ester fluids?
A: No. The "M" suffix indicates NBR seals, which are not compatible with phosphate ester fluids. NBR seals are designed for standard mineral-based and synthetic oils. For phosphate ester applications, you would need the "V" version (DBET-61/200YG24K4V) with FKM seals. Using the wrong seal material with phosphate ester can cause seal swelling, degradation, and failure.
Q: What are the installation requirements for the 200 bar version?
A: Ensure all system components (pipes, hoses, fittings, and other valves) are rated for at least 200 bar working pressure. Use proper mounting torque on the subplate connections (refer to manufacturer's specifications). The hydraulic system should be clean (ISO 4406 18/16/13 or better) to prevent contamination damage. Provide a stable 24V power supply and proper grounding for the electrical connections.
