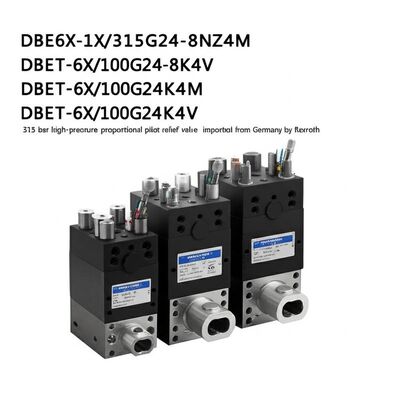

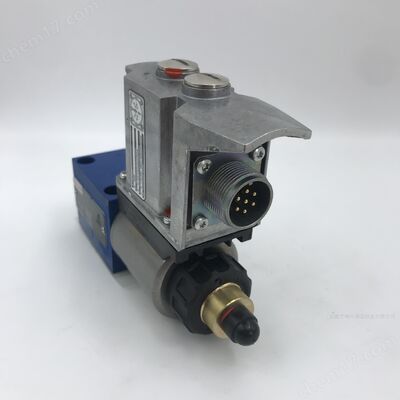

DBE6X/DBET-6X Series Hydraulic Directional Control Valves
The DBE6X and DBET-6X series are high-performance hydraulic directional control valves designed for industrial and mobile hydraulic systems. These valves provide reliable flow control and precise directional switching for various hydraulic applications.
Product Models
DBE6X-1X/315G24-8NZ4M
Solenoid-operated directional control valve with manual override
DBET-6X/100G24-8K4V
Manual-operated directional control valve with detent mechanism
DBET-6X/100G24K4M
Manual-operated directional control valve
DBET-6X/100G24K4V
Manual-operated directional control valve with detent mechanism
Technical Specifications
| Parameter |
DBE6X-1X/315G24-8NZ4M |
DBET-6X/100G24-8K4V |
DBET-6X/100G24K4M |
DBET-6X/100G24K4V |
| Type |
Solenoid operated |
Manual operated |
Manual operated |
Manual operated |
| Maximum Pressure |
315 Bar |
315 Bar |
315 Bar |
315 Bar |
| Flow Rate |
Up to 100 L/min |
100 L/min |
100 L/min |
100 L/min |
| Port Size |
G24 |
G24 |
G24 |
G24 |
| Control Type |
Solenoid with manual override (8NZ4M) |
Manual lever with detent (8K4V) |
Manual lever (K4M) |
Manual lever with detent (K4V) |
| Spool Configuration |
4-way, 3-position |
4-way, 3-position |
4-way, 3-position |
4-way, 3-position |
| Mounting |
Subplate mounting |
Subplate mounting |
Subplate mounting |
Subplate mounting |
| Material |
Carbon steel body, hardened steel spool |
Carbon steel with corrosion-resistant coating |
Carbon steel body, hardened steel components |
Carbon steel with corrosion-resistant coating |
Key Features
- Precise flow control with accurate directional switching and minimal pressure drop
- High pressure rating of 315 Bar maximum operating pressure
- Multiple control options including solenoid, manual lever, and detent configurations
- Robust construction with durable materials for long service life
- Quick response with fast spool movement for rapid system response
- Easy installation with standard G24 porting and subplate mounting
- Low internal leakage through precision machining
Applications
- Industrial machinery and equipment
- Mobile hydraulic systems
- Material handling equipment
- Construction machinery
- Machine tools
- Hydraulic presses
- Test and measurement systems
Technical Documentation
- Installation and operation manual
- Performance curves and flow characteristics
- Electrical connection diagrams (for solenoid models)
- Maintenance and troubleshooting guide
- Spare parts list
- Certifications: ISO 9001, CE compliant
Frequently Asked Questions
What is the difference between solenoid-operated and manual-operated models?
Solenoid-operated models (like DBE6X-1X/315G24-8NZ4M) use electrical solenoids for remote control, allowing for automation and integration with control systems. Manual-operated models (DBET-6X series) use a mechanical lever for direct manual control, suitable for applications where electrical control is not required or for emergency manual override.
What does the "K4M" vs "K4V" designation indicate?
The "K4M" indicates a standard manual lever control without detent, while "K4V" includes a detent mechanism that holds the spool in position when released. The detent feature is useful for applications where the valve needs to remain in a specific position without continuous operator input.
Can these valves be used with water-glycol hydraulic fluids?
The standard seals (NBR) are compatible with mineral-based hydraulic oils. For water-glycol fluids (HFC), special seal materials (such as EPDM or FKM) may be required. Please consult the technical documentation for specific fluid compatibility recommendations or contact technical support for your specific application requirements.
What is the maximum operating temperature for these valves?
The standard operating temperature range is -20°C to +80°C. For higher temperature applications or special operating conditions, please consult technical support for alternative seal materials or special configurations.
Are these valves available with different spool configurations?
Yes, various spool configurations are available, including different center positions (open center, closed center, tandem center, etc.) and flow paths. Please contact our sales department with your specific spool requirements for custom configurations.
Ordering Information
- Minimum Order Quantity: 1 unit
- Packaging: Individual carton with protective packaging
- Shipping: Worldwide shipping available
- Warranty: 12 months from date of shipment
- Customization: Available upon request (special seals, port configurations, spool types)
Note: Specifications are subject to change without notice. Always verify current specifications before ordering.
This product detail page is for informational purposes only. Actual performance may vary based on system conditions and installation. Always follow manufacturer's installation and maintenance instructions.
