DBETBX/DBETX-10 Series Proportional Relief Valves
Product Overview
The DBETBX-10 and DBETX-10 series proportional relief valves are direct-acting, electrically controlled pressure control valves designed for industrial hydraulic systems. These valves provide precise proportional pressure regulation, with DBETBX models featuring integrated position feedback capability for closed-loop control applications.
New Model Release Details

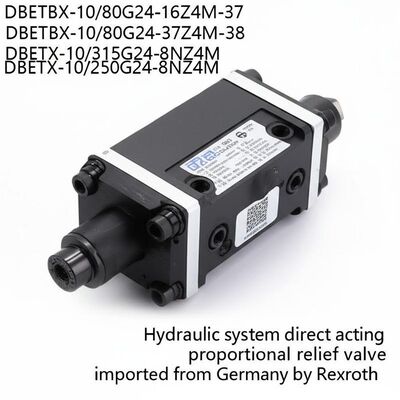

DBETBX-10/80G24-16Z4M-37
| Release Date | 2025-Q2 |
| Maximum Pressure | 80 bar |
| Coil Voltage | DC 24V |
| Coil Current | 1.6A |
| Electrical Connection | DIN 43650-AM2 plug (Z4) |
| Seal Material | NBR (M) |
| Special Feature | -37 suffix (optimized control characteristics) |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Product Code | 10/80 series with -37 option |
| Application Notes | Medium pressure version with standard current coil and optimized control for general applications |
DBETBX-10/80G24-37Z4M-38
| Release Date | 2025-Q2 |
| Maximum Pressure | 80 bar |
| Coil Voltage | DC 24V |
| Coil Current | 3.7A |
| Electrical Connection | DIN 43650-AM2 plug (Z4) |
| Seal Material | NBR (M) |
| Special Feature | -38 suffix (enhanced EMC protection) |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Product Code | 10/80 series with -38 option |
| Application Notes | Medium pressure version with high current coil and enhanced electromagnetic compatibility for demanding environments |
DBETX-10/315G24-8NZ4M
| Release Date | 2025-Q1 |
| Maximum Pressure | 315 bar |
| Coil Voltage | DC 24V |
| Coil Current | 0.8A (8N indicates 0.8A coil) |
| Electrical Connection | DIN 43650-AM2 plug (Z4) |
| Seal Material | NBR (M) |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Product Code | 10/315 series with 8N coil |
| Application Notes | High pressure version with low current coil for applications with limited amplifier output capability |
DBETX series typically without position feedback
DBETX-10/250G24-8NZ4M
| Release Date | 2025-Q1 |
| Maximum Pressure | 250 bar |
| Coil Voltage | DC 24V |
| Coil Current | 0.8A (8N indicates 0.8A coil) |
| Electrical Connection | DIN 43650-AM2 plug (Z4) |
| Seal Material | NBR (M) |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Product Code | 10/250 series with 8N coil |
| Application Notes | Medium-high pressure version with low current coil for standard applications |
DBETX series typically without position feedback
Technical Features
- Direct-Acting Design: Cone valve structure for fast response and precise pressure control
- Proportional Control: 0-10V or 4-20mA input signal for continuous pressure adjustment
- Position Feedback: Integrated LVDT for closed-loop control capability (DBETBX series only)
- Standard Mounting: ISO 4401-03-02-0-05 interface
- Seal Options: Standard NBR seals (M), other materials available on request
- Environmental Protection: IP65 rating standard
- Pressure Range: Wide range from 80 bar to 315 bar
- Coil Options: Various current ratings (0.8A, 1.6A, 3.7A) to match amplifier capabilities
- Option Codes: Suffix codes (-37, -38) for specific application requirements
Frequently Asked Questions
What is the main difference between DBETBX-10 and DBETX-10 series?
The primary difference is that DBETBX-10 series valves typically include integrated position feedback (LVDT) for closed-loop control applications, while DBETX-10 series are standard proportional relief valves without position feedback. This affects their suitability for closed-loop control systems.
What do the suffix codes -37 and -38 represent?
The -37 suffix typically indicates optimized control characteristics or specific performance parameters for certain applications. The -38 suffix usually denotes enhanced electromagnetic compatibility (EMC) protection, making the valve more resistant to electromagnetic interference in noisy environments.
What is the typical hysteresis for these valves?
DBETBX-10 models with position feedback typically achieve hysteresis below 3% of full scale, and can reach below 1% with proper closed-loop control. DBETX-10 models without feedback may have slightly higher hysteresis. Actual values depend on system conditions and should be verified in the product data sheet.
Can these valves be used with both 0-10V and 4-20mA input signals?
Most models support both signal types, but compatibility depends on the internal electronics and connected amplifier. Some models may require specific amplifier cards or external signal conditioning. Always check the product documentation for signal compatibility requirements.
What is the recommended maintenance interval for these proportional valves?
Under normal operating conditions with clean hydraulic fluid, these valves require minimal maintenance. Periodic inspection of seals, electrical connections, and overall performance is recommended every 12 months or 2000 operating hours. In harsh environments or with contaminated fluid, more frequent inspection may be necessary.
Ordering Information
All models are available through authorized distribution channels. When ordering, please provide the complete model number including all suffixes. Standard delivery time is 4-6 weeks for standard configurations. Custom options may require additional lead time.
Specifications are subject to change without notice. Always consult the latest product documentation for technical details and application guidelines.
