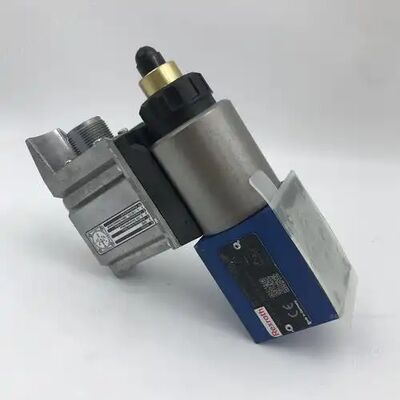

DBETBX/DBETX Series Proportional Relief Valves
The DBETBX and DBETX series proportional relief valves are direct-acting, electrically controlled pressure control valves designed for industrial hydraulic systems. These valves provide precise proportional pressure regulation with integrated position feedback capability (DBETBX series), suitable for applications requiring accurate pressure control in various industrial equipment.
New Model Release Details

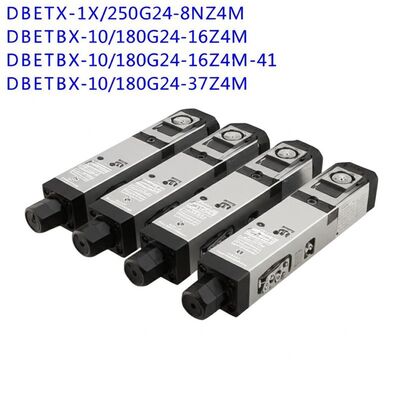

DBETX-1X/250G24-8NZ4M
| Release Date |
2025-Q1 |
| Maximum Pressure |
250 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
0.8A (8N indicates 0.8A coil) |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
| Application Notes |
Medium-high pressure version with low current coil for applications with limited amplifier output capability |
DBETBX-10/180G24-16Z4M
| Release Date |
2024-Q4 |
| Maximum Pressure |
180 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
1.6A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
| Application Notes |
Standard pressure version with standard current coil for general applications |
DBETBX-10/180G24-16Z4M-41
| Release Date |
2025-Q1 |
| Maximum Pressure |
180 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
1.6A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Special Feature |
-41 suffix (enhanced EMC compatibility) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
| Application Notes |
Standard pressure version with enhanced electromagnetic compatibility features |
DBETBX-10/180G24-37Z4M
| Release Date |
2024-Q4 |
| Maximum Pressure |
180 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
3.7A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
| Application Notes |
Standard pressure version with high current coil for fast response applications |
Technical Features
- Direct-Acting Design: Cone valve structure for fast response and precise pressure control
- Proportional Control: 0-10V or 4-20mA input signal for continuous pressure adjustment
- Position Feedback: Integrated LVDT for closed-loop control capability (DBETBX series)
- Standard Mounting: ISO 4401-03-02-0-05 interface
- Seal Options: Standard NBR seals (M), other materials available on request
- Environmental Protection: IP65 rating standard
- Pressure Range: Multiple pressure ratings from 180 bar to 250 bar
- Coil Options: Various current ratings (0.8A, 1.6A, 3.7A) to match amplifier capabilities
- Option Codes: Suffix codes (-41) for specific application requirements
Frequently Asked Questions
What is the difference between "10" and "1X" in the model number prefix?
The "10" and "1X" prefixes typically refer to different component series or size classifications. The "10" series may indicate a specific size or flow capacity category, while "1X" may represent a different series with potentially different performance characteristics. Always refer to the product catalog for detailed specifications of each series.
What does the "-41" suffix indicate in the model number?
The "-41" suffix typically indicates enhanced electromagnetic compatibility (EMC) features. This option provides improved resistance to electromagnetic interference, making the valve suitable for applications in electrically noisy environments or where EMC compliance is required.
Can DBETX series valves be used in closed-loop control systems?
The DBETX series typically does not include integrated position feedback (LVDT), so they are generally used in open-loop control applications. For closed-loop control requiring position feedback, the DBETBX series with LVDT is recommended. Always check the specific model's technical data sheet for feedback capabilities.
What is the typical hysteresis for these proportional valves?
Standard DBETBX models with position feedback typically have hysteresis less than 3% of full scale, and can achieve below 1% with proper closed-loop control. DBETX series without feedback may have slightly higher hysteresis. The exact value depends on the specific model and system conditions.
Are these valves compatible with both 0-10V and 4-20mA input signals?
Most models support both signal types, but the specific compatibility depends on the internal electronics and the connected amplifier. Some models may require external signal conditioning or specific amplifier cards. Always refer to the product documentation for signal compatibility requirements.
Ordering Information
All models are available through authorized distribution channels. When ordering, please provide the complete model number including all suffixes. Standard delivery time is 4-6 weeks for standard configurations. Custom options may require additional lead time.
Note: Specifications are subject to change without notice. Always consult the latest product documentation for technical details and application guidelines.
