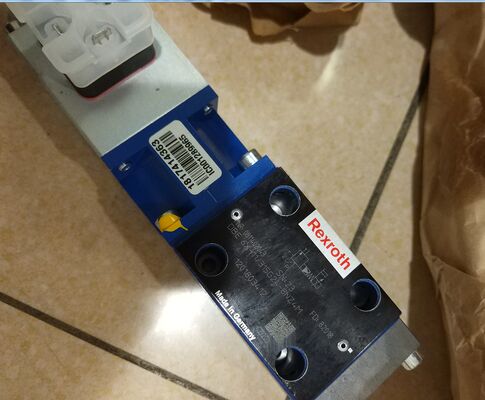

DBETBX Series Proportional Relief Valves
DBETBX-1X/28G24-37Z4M, DBETBX-1X/315G24-16Z4M, DBETBX-1X/315G24-25Z4M, DBETBX-1X/315G24-37Z4M
Product Overview
The DBETBX series proportional relief valves are direct-acting, electrically controlled pressure control valves with integrated position feedback capability. Designed for industrial hydraulic systems, these valves provide precise proportional pressure regulation in applications requiring accurate pressure control, such as injection molding machines, presses, and other hydraulic equipment.
New Model Release Details
DBETBX-1X/28G24-37Z4M
| Release Date |
2025-Q1 |
| Maximum Pressure |
28 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
3.7A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
Product Code: 1X/28 series
Application Notes: Low pressure version with high current coil for fast response applications
DBETBX-1X/315G24-16Z4M
| Release Date |
2024-Q4 |
| Maximum Pressure |
315 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
1.6A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
Product Code: 1X/315 series
Application Notes: High pressure version with standard current coil for general applications
DBETBX-1X/315G24-25Z4M
| Release Date |
2025-Q1 |
| Maximum Pressure |
315 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
2.5A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
Product Code: 1X/315 series with 25 coil
Application Notes: High pressure version with medium current coil for balanced performance
DBETBX-1X/315G24-37Z4M
| Release Date |
2024-Q4 |
| Maximum Pressure |
315 bar |
| Coil Voltage |
DC 24V |
| Coil Current |
3.7A |
| Electrical Connection |
DIN 43650-AM2 plug (Z4) |
| Seal Material |
NBR (M) |
| Mounting Interface |
ISO 4401-03-02-0-05 |
Product Code: 1X/315 series with 37 coil
Application Notes: High pressure version with high current coil for fast response requirements
Technical Features
- Direct-Acting Design: Cone valve structure for fast response and precise pressure control
- Proportional Control: 0-10V or 4-20mA input signal for continuous pressure adjustment
- Position Feedback: Integrated LVDT for closed-loop control capability
- Standard Mounting: ISO 4401-03-02-0-05 interface
- Seal Options: Standard NBR seals (M), other materials available on request
- Environmental Protection: IP65 rating standard
- Pressure Range: Multiple pressure ratings from 28 bar to 315 bar
- Coil Options: Various current ratings (1.6A, 2.5A, 3.7A) to match amplifier capabilities
Frequently Asked Questions
Q1: What is the difference between the 1.6A, 2.5A, and 3.7A coil versions?
A: The coil current rating affects the valve's response speed and the required amplifier output capability. Higher current coils (3.7A) provide faster response times but require amplifiers with higher current output. Lower current coils (1.6A) are suitable for standard applications and are compatible with most standard amplifiers. The 2.5A version offers a balance between performance and amplifier requirements.
Q2: Can these valves be used in closed-loop control systems?
A: Yes, all models feature integrated LVDT position feedback, making them suitable for closed-loop control applications. This allows for precise pressure control with reduced hysteresis and improved accuracy.
Q3: What is the typical pressure setting range for these valves?
A: The proportional control range is typically from 5% to 95% of the maximum rated pressure. For example, a 315 bar valve can be set between approximately 15 bar and 300 bar. The exact minimum and maximum settable pressure may vary depending on the specific model and system conditions.
Q4: Are these valves suitable for use with water-based hydraulic fluids?
A: Standard models with NBR seals are designed for mineral-based hydraulic oils. For water-based fluids (HFA, HFB, HFC), special seal materials may be required. Please consult the product documentation for seal compatibility with specific fluids.
Q5: What is the meaning of the "1X" in the model number?
A: The "1X" designation typically refers to the component series or size classification. In this series, it indicates a specific valve size and flow capacity category. The exact meaning may vary by manufacturer, so refer to the product catalog for detailed specifications.
Ordering Information
All models are available through authorized distributors. When ordering, please provide the complete model number. Standard delivery time is 4-6 weeks for standard configurations. Custom options may require additional lead time.
Note: Specifications are subject to change without notice. Always refer to the latest product documentation for technical details and application guidelines.
