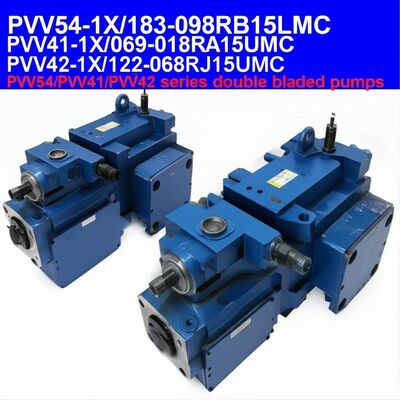

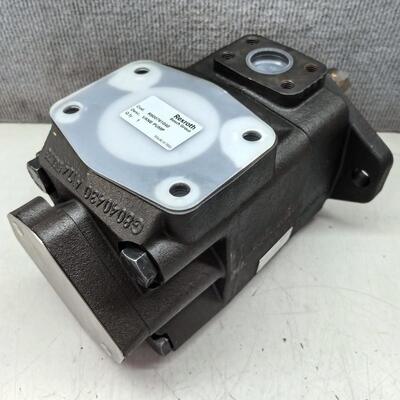

Rexroth PVV Series Hydraulic Vane Pumps
Product Overview
The Rexroth PVV series hydraulic vane pumps are engineered for high-performance industrial applications, combining reliability, efficiency, and durability. This release covers three models: PVV54-1X/183-098RB15LLMC, PVV41-1X/069-018RA15UUMC, and PVV42-1X/122-068RJ15UUMC. Designed for demanding hydraulic systems, these pumps offer optimized flow rates, robust construction, and compliance with international standards. Ideal for construction machinery, industrial automation, and mobile equipment, they ensure seamless operation under high-pressure conditions.
Technical Specifications
PVV54-1X/183-098RB15LLMC
- Displacement: 183 cm³/rev (primary) + 98 cm³/rev (secondary)
- Shaft Type: Heavy-duty (B)
- Port Direction: Left (L)
- Seal Material: NBR rubber (M)
- Mounting Flange: Type C
- Pressure Rating: Up to 210 bar
- Operating Temperature: -20°C to 80°C
PVV41-1X/069-018RA15UUMC
- Displacement: 69 cm³/rev (primary) + 18 cm³/rev (secondary)
- Shaft Type: Standard (A)
- Port Direction: Up (U)
- Seal Material: NBR rubber (M)
- Mounting Flange: Type C
- Pressure Rating: Up to 210 bar
PVV42-1X/122-068RJ15UUMC
- Displacement: 122 cm³/rev (primary) + 68 cm³/rev (secondary)
- Shaft Type: Splined (J)
- Port Direction: Up (U)
- Seal Material: NBR rubber (M)
- Mounting Flange: Type C
- Compliance: Meets EU Directive 2014/53/EU
Key Features & Benefits
High Efficiency
Optimized vane design minimizes internal leakage, ensuring consistent flow rates under varying pressures.
Compact Construction
Space-saving design ideal for machinery with limited installation space.
Low Noise Operation
Advanced hydraulic balancing reduces vibration and noise, suitable for indoor applications.
Durability
Cast iron construction and wear-resistant vanes extend service life in harsh environments.
Global Compliance
Certified for use in the EU, UK, North America, and Asia (e.g., FCC, CE, IC).
Applications
- Industrial Machinery: Hydraulic presses, injection molding machines
- Mobile Equipment: Excavators, cranes, agricultural machinery
- Renewable Energy: Wind turbine pitch control systems
Installation & Maintenance
- Fluid Compatibility: Works with mineral oils, synthetic fluids, and biodegradable hydraulic fluids
- Installation Tips: Ensure shaft alignment within 0.1mm tolerance; use recommended mounting hardware
- Maintenance Schedule: Replace seals every 1,500 hours; check vanes for wear during fluid changes
Frequently Asked Questions
What is the maximum pressure these pumps can handle?
All models support continuous operation up to 210 bar, with peak tolerance up to 250 bar for short durations.
Are these pumps compatible with environmentally friendly fluids?
Yes, they are compatible with biodegradable and synthetic hydraulic fluids. Always verify fluid viscosity matches pump specifications.
What certifications do these pumps hold?
They comply with EU Radio Equipment Directive (2014/53/EU), FCC (U.S.), and IC (Canada). Full declarations are available on the manufacturer's website.
How do I troubleshoot excessive noise?
Check for air ingress, fluid contamination, or misalignment. Ensure fluid viscosity is within the recommended range.
Can these pumps be used in tandem for higher flow?
Yes, the PVV series supports tandem configurations. Consult technical manuals for coupling guidelines.
What is the typical lifespan?
With proper maintenance, these pumps can operate for several thousand hours. Regular fluid filtration is critical.
Are spare parts readily available?
Yes, seals, vanes, and shafts are available through authorized distributors.
Ordering Information
| Model |
Lead Time |
Packaging |
| PVV54-1X/183-098RB15LLMC |
3-5 days |
Wooden crate |
| PVV41-1X/069-018RA15UUMC |
3-5 days |
Carton box |
| PVV42-1X/122-068RJ15UUMC |
3-5 days |
Wooden crate |
Custom branding (OEM/ODM) is available for bulk orders.
Support & Warranty
- Warranty: 12 months from date of purchase
- Technical Support: Contact regional service centers for installation guidance or troubleshooting
- Documentation: Full manuals and compliance certificates available at Rexroth Support Portal
