PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany

PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany
PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany

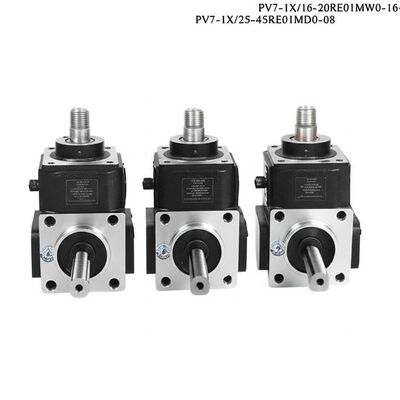

Large Image :  PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/16-20RE01MW0-16 PV7-1X/16-30RE01MD0-08 PV7-1X/25-45RE01MD0-08 Hydraulic pump PV7 series, pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany

Description
Application: Industrial Machinery, Mobile Hydraulics Operating Mode: Pump, Open Circuit
Maximum Pressure: 280 Bar Transport Package: Wooden Box
Certifisaarion: ISO9001 Drivetype: Shaft Driven
Products Name: Rexroth Hydraulic Piston Pump Material: High-strength Steel And Aluminum
Condition: Internal Meshing Principle
Highlight:

Rexroth PV7 hydraulic pump

,

pilot-operated vane pump

,

German imported hydraulic pump

Product Overview
Rexroth PV7 Series Hydraulic Pump

Pilot-operated hydraulic pump, imported from Rexroth, originally manufactured in Germany

Featured Models
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
Technical Specifications
Parameter Min Value Max Value Unit Notes
Max. Peak Pressure 120 200 bar Short-term (≤5s) overload only
Speed Range 600 2800-3600 rpm Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm) 36 270 l/min Calculated at rated displacement
Volumetric Efficiency (Rated Condition) ≥90% ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) Optimal: 16-160 mm²/s
Fluid Temperature Range -20 +80 °C Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation) ≤63 ≤65 dB(A) Pilot-operated models have optimized noise reduction
Mounting Standard ISO 3019-2 flange Optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft Keyed shaft available on request
Seal Material NBR (standard); FKM (optional) NBR for mineral oil; FKM for synthetic oil
Weight 8-12 10-35 kg Depends on displacement and control type
Control Type Direct-acting pressure compensation PV7-A: direct-acting; PV7-C/D/N/W: pilot-operated
Response Time (Pressure Rise) 40-60 20-40 ms Faster response for pilot-operated models
Housing Material GG25 cast iron High strength, vibration-resistant
Rotor/Stator Material 42CrMo4 alloy steel (quenched & tempered) High hardness & wear resistance
Vane Material Wear-resistant powder metallurgy alloy Self-lubricating & anti-seizure
PV7-1X/1 <div class=Available Model Variants
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
PV7-1X/40-45RE37MD0-16-C3.1
PV7-1X/40-45RE37MW0-16WG
PV7-1X/40-45RE37KD0-16
PV7-1X/40-45RE37MC0-16-P80
PV7-1X/16-30RE01MC5-08
PV7-1X/100-150RE07KD0-08
PV7-1X/40-45RE37MW0-16WH
PV7-1X/10-14RE01MD0-16
PV7-1X/100-150RE07MC5-08WG
PV7-1X/16-30RE01MC7-08
PV7-1X/63-71RE07MC0-06-A460
PV7-1X/10-14RE01MC0-16
PV7-1X/16-30RE01MN0-08
PV7-1X/25-45RE01KC0-08
PV7-1X/63-71RE07MD0-16-Q85
PV7-1X/100-150RE07MN0-08
PV7-1X/63-94RE07MC3-08
PV7-1X/16-20RE01MW0-16WG
PV7-1X/25-30RE01MD0-16
PV7-1X/10-14RE01MW0-16WG
PV7-1X/25-30RE01MD5-16WH
PV7-1X/10-14RE01MC0-16-P140Q10
PV7-1X/63-71RE07MD5-16
PV7-1X/40-55RE37MC3-08-A449
PV7-1X/40-45RE37MD3-16
PV7-1X/63-71RE07MC0-16
PV7-1X/40-71RE37MC7-08WG
PV7-1X/40-45RE37KC3-16
PV7-1X/10-20RE01KC0-10
PV7-1X/25-45RE01MC0-08
PV7-1X/25-30RE01KC0-16
PV7-1X/100-150RE07MC5-08
PV7-1X/40-71RE37KC0-08
PV7-1X/25-30RE01MC6-16
PV7-1X/16-20RE01MC0-16-P55
PV7-1X/25-45RE01MC3-08
PV7-1X/40-45RE37MC6-16
Frequently Asked Questions
Q: Can Rexroth PV7 vane pump adapt to sudden load changes?
A: Yes, it can respond quickly to sudden load changes and maintain stable performance.
Q: Is Rexroth PV7 vane pump affected by ambient humidity?
A: Its corrosion-resistant design allows it to work normally in high-humidity environments.
Q: What is the flow rate stability of Rexroth PV7 vane pump like?
A: It delivers consistent flow rate even when the system pressure changes.
Q: Does Rexroth PV7 vane pump require professional maintenance personnel?
A: Its simple structure allows for routine maintenance without professional personnel, but complex repairs are recommended to be done by professionals.
Q: Can Rexroth PV7 vane pump be used in high-altitude environments?
A: Yes, it can work stably in high-altitude environments as long as the working conditions meet the rated requirements.
