PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock

PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock
PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock

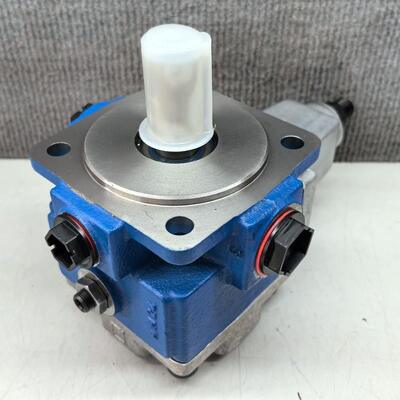

Large Image :  PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/63-94RE07MC0-08-P80Q114 PV7-1X/40-45RE37MC5-16WH PV7-1X/10-14RE01KN0-16 PV7 series pilot vane pump imported from Germany by Rexroth in stock

Description
Pressure Control: Low-Pressure Leakage Alarm Threshold Flow Regulation: Minimum Flow Dry-Run Protection Threshold*
Highlight:

Rexroth PV7 vane pump

,

German imported vane pump

,

PV7 series pilot pump

PV7 Series Pilot Vane Pump

PV7-1X/63-94RE07MC0-08-P80Q114, PV7-1X/40-45RE37MC5-16WH, PV7-1X/10-14RE01KN0-16

PV7 series pilot vane pump imported from Germany by Rexroth in stock

Technical Specifications
Parameter/Property Category Direct-Acting (PV7-A) Series Pilot-Operated (PV7-C/D/N/W) Series Unit Remarks
Model Range PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10 PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16 #VALUE! 1X/2X=component series; 06/14/20=frame size
Displacement per Revolution 10-25 14-150 cm³/rev Displacement varies by specific model suffix
Max. Continuous Working Pressure 100 160 bar PV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure 120 200 bar Short-term (≤5s) overload only
Speed Range 600-2800 600-3600 rpm Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm) 36 270 l/min Calculated at rated displacement
Volumetric Efficiency (Rated Condition) ≥90% ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) Mineral oil (HLP), synthetic oil (HETG/HEES) - Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) 10-1000 (operation); 2-1500 (start-up) mm²/s Optimal: 16-160 mm²/s
Fluid Temperature Range -20 to +80 -20 to +80 °C Storage: -40 to +90 °C
PV7-1X/63-94RE07M <div class=Available Models
  • PV7-1X/63-71RE07MC6-16
  • PV7-1X/16-20RE01KD0-16
  • PV7-1X/10-14RE01MW0-16
  • PV7-1X/63-71RE07MC0-16-C3.1
  • PV7-1X/16-30RE01MW0-08WH
  • PV7-1X/100-150RE07MC0-08-A446
  • PV7-1X/25-30RE01MC5-16WG
  • PV7-1X/10-20RE01MC0-10-A497
  • PV7-1X/100-150RE07KC0-08
  • PV7-1X/100-150RE07MD5-08
  • PV7-1X/25-45RE01MC0-08-P25Q50
  • PV7-1X/40-71RE37MC5-08
  • PV7-1X/10-14RE01KD0-16
  • PV7-1X/16-20RE01MC0-16-P120
  • PV7-1X/100-150RE07MW0-08WH
  • PV7-1X/16-20RE01MC5-16WG
  • PV7-1X/10-20RE01MW0-10WH
  • PV7-1X/63-94RE07KD0-08
  • PV7-1X/63-71RE07MW0-16WH
  • PV7-1X/63-71RE07MC7-16WH
  • PV7-1X/40-45RE37MC0-16
  • PV7-1X/63-94RE07MC0-08-P80Q114
  • PV7-1X/40-45RE37MC5-16WH
  • PV7-1X/10-14RE01KN0-16
  • PV7-1X/25-30RE01MC5-16WH
  • PV7-1X/63-71RE07KC0-16
  • PV7-1X/10-20RE01MC3-10
  • PV7-1X/16-20RE01MN0-16
  • PV7-1X/25-45RE01MW0-08WH
  • PV7-1X/63-71RE07MN0-16
  • PV7-1X/63-71RE07KD0-16
  • PV7-1X/16-20RE01MC8-16
  • PV7-1X/40-71RE37MW0-08WH
  • PV7-1X/40-45RE37MD0-16-P50Q36
  • PV7-1X/40-45RE37MC7-16WG
  • PV7-1X/100-118RE07MN5-16
  • PV7-1X/25-45RE01MC7-08WG
  • PV7-1X/63-71RE07MC7-16
  • PV7-1X/100-150RE07MC3-08
  • PV7-1X/40-45RE37KC0-16
  • PV7-1X/63-94RE07MC5-08
  • PV7-1X/16-20RE01MC0-16-P60Q26
  • PV7-1X/16-20RE01MC5-16
  • PV7-1X/40-71RE37MC5-08WG
  • PV7-1X/25-45RE01MC7-08
  • PV7-1X/25-30RE01MW5-16WH
  • PV7-1X/10-20RE01MD0-10
  • PV7-1X/63-71RE07MD0-16-Q90
  • PV7-1X/16-30RE01MC3-08
  • PV7-1X/100-150RE07MC7-08
  • PV7-1X/100-118RE07MN0-16
  • PV7-1X/10-20RE01MC5-10
  • PV7-1X/25-30RE01MC5-16WH-A234
  • PV7-1X/100-150RE07MC5-08WH
  • PV7-1X/25-30RE01MW0-16WH
  • PV7-1X/10-20RE01MC7-10WH
  • PV7-1X/25-45RE01MC5-08
  • PV7-1X/40-45RE37MC8-16
  • PV7-1X/16-20RE01MW0-16WH
  • PV7-1X/16-20RE01MC3-16-P50Q25
  • PV7-1X/100-118RE07KC0-16
  • PV7-1X/40-71RE37MC5-08WH
  • PV7-1X/100-118RE07MC6-16
  • PV7-1X/40-71RE37MC3-08
  • PV7-1X/40-71RE37MC7-08WH
  • PV7-1X/10-14RE01MW0-16WH
  • PV7-1X/10-20RE01MC3-10-A497
  • PV7-1X/16-20RE01MC3-16
  • PV7-1X/16-20RE01MC5-16WH
  • PV7-1X/63-71RE07MC3-06-A460
  • PV7-1X/16-30RE01MC5-08WH
  • PV7-1X/10-14RE01MC0-16-P100
  • PV7-1X/63-94RE07MC5-08WH
  • PV7-1X/10-14RE01MC3-16
  • PV7-1X/40-45RE37MD0-16
  • PV7-1X/100-118RE07MC7-16WH
  • PV7-1X/25-45RE01MC5-08WH
  • PV7-1X/16-20RE01MC0-16
  • PV7-1X/63-71RE07MC5-16WG
  • PV7-1X/63-71RE07KC3-16
  • PV7-1X/10-20RE01MC5-10WH
  • PV7-1X/16-20RE01MC7-16
  • PV7-1X/10-14RE01MC7-16
  • PV7-1X/63-94RE07MC0-08
  • PV7-1X/16-20RE01MC0-16-P100Q29
  • PV7-1X/25-30RE01MC0-16-P100Q36
  • PV7-1X/40-45RE37MW5-16WH
  • PV7-1X/10-14RE01MC0-16-P45
  • PV7-1X/25-45RE01MN0-08
  • PV7-1X/25-30RE01MC0-16
  • PV7-1X/63-94RE07MC0-08-P75
  • PV7-1X/63-71RE07MW5-16WH
  • PV7-1X/25-30RE01MC5-16
  • PV7-1X/40-71RE37MD0-08
  • PV7-1X/100-150RE07MD0-08
  • PV7-1X/10-20RE01MC7-10
  • PV7-1X/10-14RE01MD3-16
  • PV7-1X/100-118RE07MW0-16WH
  • PV7-1X/100-118RE07KD0-16
  • PV7-1X/10-14RE01MC5-16
  • PV7-1X/63-94RE07MN0-08
  • PV7-1X/10-14RE01KC0-16
  • PV7-1X/40-45RE37MC3-16
  • PV7-1X/40-45RE37MC7-16
  • PV7-1X/16-20RE01MC0-16-C3.1
  • PV7-1X/40-45RE37MC0-16-A446
  • PV7-1X/100-118RE07MW0-16WG
  • PV7-1X/100-150RE07MC0-08
  • PV7-1X/63-94RE07MC5-08WG
  • PV7-1X/16-20RE01KC0-16
  • PV7-1X/40-55RE37MC0-08-A449
  • PV7-1X/63-94RE07MD0-08
  • PV7-1X/16-20RE01MD0-16-Q25
  • PV7-1X/40-45RE37MD0-16-P50Q39
  • PV7-1X/63-71RE07MD0-16-Q65
  • PV7-1X/16-30RE01MC0-08
  • PV7-1X/40-45RE37MW0-16
  • PV7-1X/40-71RE37MC0-08
  • PV7-1X/100-118RE07MW6-16WH
  • PV7-1X/16-30RE01MC5-08WG
  • PV7-1X/10-20RE01MC0-10
  • PV7-1X/63-71RE07MW0-16
  • PV7-1X/63-94RE07KC0-08
  • PV7-1X/40-45RE37MC7-16WH
  • PV7-1X/10-14RE01MC0-16-P60Q15
  • PV7-1X/63-71RE07KW0-16WG
  • PV7-1X/100-118RE07KC5-16
  • PV7-1X/25-30RE01MC7-16
  • PV7-1X/63-71RE07MC5-16
  • PV7-1X/25-30RE01KD0-16
  • PV7-1X/10-14RE01MC5-16WH
Frequently Asked Questions
Q: What is the optimal value range for the Dynamic Flow Compensation Gain Coefficient?
A: Set it between 0.5-2.0; higher values improve response speed for rapid load change scenarios.
Q: How do I calibrate the Nominal Flow Calibration Correction Offset?
A: Calibrate it using a precision flow meter under the pump's rated pressure conditions, adjusting the offset to match measured flow.
Q: What impact does the Flow Stabilization Response Time Constant have?
A: A longer time constant reduces flow fluctuations, making it suitable for unstable load operation environments.
Q: Why is the Minimum Flow Dry-Run Protection Threshold a mandatory setting?
A: It prevents the pump from operating at flow rates too low to maintain adequate lubrication, avoiding dry-run damage.
Q: What is the maximum allowable Flow Step Adjustment Resolution per step?
A: The resolution should not exceed 0.2 L/min per step to ensure gradual, stable flow adjustments.
Operation Protection

Comprehensive protection systems ensure reliable operation and extended service life under demanding industrial conditions.
