Rexroth PV7 Series Vane Pump

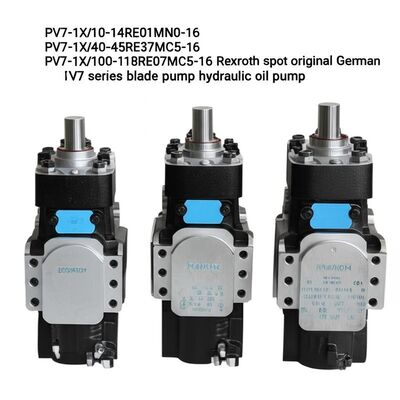

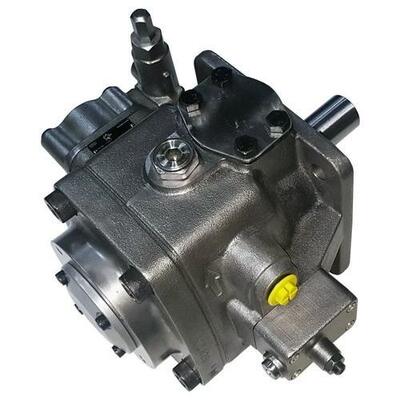

PV7-1X/10-14RE01MN0-16, PV7-1X/40-45RE37MC5-16, PV7-1X/100-118RE07MC5-16 Rexroth spot original German PV7 series blade pump hydraulic oil pump
Technical Specifications
| Parameter |
Specification |
| Model Series |
PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models) |
| Displacement per Revolution |
10-25 cm³/rev (varies by specific model) |
| Maximum Operating Pressure |
210 bar (continuous), 250 bar (peak) |
| Maximum Speed |
1800-3600 rpm (depends on displacement and fluid viscosity) |
| Minimum Speed |
600 rpm (ensures stable operation) |
| Fluid Medium |
Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended) |
| Fluid Temperature Range |
-20 °C to +80 °C (operation); -40 °C to +90 °C (storage) |
| Viscosity Range |
10-1000 mm²/s (operation); 2-1500 mm²/s (start-up) |
| Volumetric Efficiency |
≥90% (at rated pressure and speed) |
| Total Efficiency |
≥80% (at rated working condition) |
| Noise Level |
≤65 dB(A) (at 1 m distance under rated operation) |
| Suction Pressure |
-0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar) |
| Mounting Type |
Flange mounting (ISO 3019-2 standard), foot mounting (optional) |
| Shaft Connection |
Splined shaft (ISO 4162 standard) or keyed shaft (customizable) |
![PV7-1X/1
<div class=]()
Available Models
PV7-1X/10-20RE01MD5-10, PV7-1X/25-30RE01MW0-16WG, PV7-1X/40-45RE37MW5-16WG, PV7-1X/100-118RE07MC5-16WG, PV7-1X/63-94RE07MC7-08WG, PV7-1X/40-45RE37MW6-16WH, PV7-1X/100-118RE07MD6-16, PV7-1X/40-45RE37MC5-16WG, PV7-1X/100-118RE07MC0-16, PV7-1X/63-71RE07MD0-16, PV7-1X/40-45RE37MC0-16-P90, PV7-1X/25-30RE01MC0-16-P100Q38, PV7-1X/100-150RE07MC0-08-A464, PV7-1X/100-118RE07MD0-16, PV7-1X/10-14RE01MN0-16, PV7-1X/40-45RE37MC5-16, PV7-1X/100-118RE07MC5-16, PV7-1X/25-30RE01KC3-16, PV7-1X/10-20RE01MC5-10WG, PV7-1X/25-30RE01MW0-16, PV7-1X/16-20RE01MD3-16, PV7-1X/16-20RE01MC0-16-P110, PV7-1X/40-45RE37KD0-16-C3.1, PV7-1X/63-71RE07MC5-16WH, PV7-1X/16-30RE01KC0-08, PV7-1X/10-14RE01MD5-16, PV7-1X/63-71RE07MC6-16, PV7-1X/16-20RE01KD0-16, PV7-1X/10-14RE01MW0-16, PV7-1X/63-71RE07MC0-16-C3.1, PV7-1X/16-30RE01MW0-08WH, PV7-1X/100-150RE07MC0-08-A446, PV7-1X/25-30RE01MC5-16WG, PV7-1X/10-20RE01MC0-10-A497, PV7-1X/100-150RE07KC0-08, PV7-1X/100-150RE07MD5-08, PV7-1X/25-45RE01MC0-08-P25Q50, PV7-1X/40-71RE37MC5-08, PV7-1X/10-14RE01KD0-16, PV7-1X/16-20RE01MC0-16-P120, PV7-1X/100-150RE07MW0-08WH, PV7-1X/16-20RE01MC5-16WG, PV7-1X/10-20RE01MW0-10WH, PV7-1X/63-94RE07KD0-08, PV7-1X/63-71RE07MW0-16WH, PV7-1X/63-71RE07MC7-16WH, PV7-1X/40-45RE37MC0-16, PV7-1X/63-94RE07MC0-08-P80Q114, PV7-1X/40-45RE37MC5-16WH, PV7-1X/10-14RE01KN0-16, PV7-1X/25-30RE01MC5-16WH, PV7-1X/63-71RE07KC0-16, PV7-1X/10-20RE01MC3-10, PV7-1X/16-20RE01MN0-16, PV7-1X/25-45RE01MW0-08WH, PV7-1X/63-71RE07MN0-16, PV7-1X/63-71RE07KD0-16, PV7-1X/16-20RE01MC8-16, PV7-1X/40-71RE37MW0-08WH, PV7-1X/40-45RE37MD0-16-P50Q36, PV7-1X/40-45RE37MC7-16WG, PV7-1X/100-118RE07MN5-16, PV7-1X/25-45RE01MC7-08WG, PV7-1X/63-71RE07MC7-16, PV7-1X/100-150RE07MC3-08, PV7-1X/40-45RE37KC0-16, PV7-1X/63-94RE07MC5-08, PV7-1X/16-20RE01MC0-16-P60Q26, PV7-1X/16-20RE01MC5-16, PV7-1X/40-71RE37MC5-08WG, PV7-1X/25-45RE01MC7-08, PV7-1X/25-30RE01MW5-16WH, PV7-1X/10-20RE01MD0-10, PV7-1X/63-71RE07MD0-16-Q90, PV7-1X/16-30RE01MC3-08, PV7-1X/100-150RE07MC7-08, PV7-1X/100-118RE07MN0-16, PV7-1X/10-20RE01MC5-10, PV7-1X/25-30RE01MC5-16WH-A234, PV7-1X/100-150RE07MC5-08WH, PV7-1X/25-30RE01MW0-16WH, PV7-1X/10-20RE01MC7-10WH, PV7-1X/25-45RE01MC5-08, PV7-1X/40-45RE37MC8-16, PV7-1X/16-20RE01MW0-16WH, PV7-1X/16-20RE01MC3-16-P50Q25, PV7-1X/100-118RE07KC0-16, PV7-1X/40-71RE37MC5-08WH, PV7-1X/100-118RE07MC6-16, PV7-1X/40-71RE37MC3-08, PV7-1X/40-71RE37MC7-08WH, PV7-1X/10-14RE01MW0-16WH, PV7-1X/10-20RE01MC3-10-A497
Frequently Asked Questions
Can the PV7 series pump be used in high-frequency start-stop systems?
Yes, but it is necessary to ensure that the pump is filled with oil before each start to avoid dry running, and select a motor with good starting performance to reduce the impact of start-stop on the pump.
What is the impact of oil viscosity on the performance of the PV7 series pump?
Excessively high viscosity will increase the suction resistance and power consumption of the pump; excessively low viscosity will increase internal leakage and reduce volumetric efficiency. It is recommended to use hydraulic oil with a viscosity of 20-30 mm²/s under normal operating temperature.
How to replace the vanes of the PV7 series pump?
Disassemble the pump end cover, remove the stator and rotor assembly, take out the worn vanes, install new vanes in the rotor slots (pay attention to the installation direction), apply hydraulic oil to the vanes, and reassemble the pump in reverse order of disassembly.
Does the PV7 series pump have a pressure relief function during startup?
Standard models do not have a built-in startup pressure relief function; it is recommended to set the relief valve to a low pressure during startup, and gradually increase it to the rated pressure after the pump runs stably.
What is the noise level of the PV7 series pump during operation?
Under rated working conditions, the noise level is generally 65-75 dB(A), which is lower than that of many piston pumps, making it suitable for noise-sensitive working environments.
