PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump

PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump
PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump

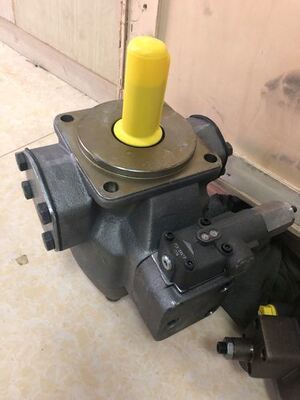

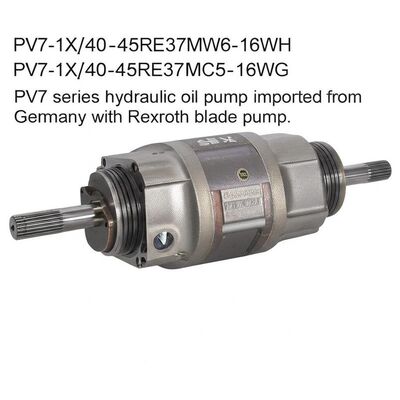

Large Image :  PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump

Description
Parameter: Specification Model Series: PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG (typical Models)
Displacement Per Revolution: 10–25 Cm³/rev (varies By Specific Model) Maximum Operating Pressure: 210 Bar (continuous), 250 Bar (peak)
Maximum Speed: 1800–3600 Rpm (depends On Displacement And Fluid Viscosity) Fluid Medium: Mineral Oil-based Hydraulic Fluid (ISO VG 32/46/68 Recommended)
Highlight:

Rexroth vane hydraulic oil pump

,

PV7 series hydraulic pump

,

German imported vane pump

PV7 Series Hydraulic Vane Pumps
Product Overview
High-performance PV7 series hydraulic vane pumps imported from Germany with Rexroth blade pump technology. Available in direct-acting and pilot-operated configurations for various industrial applications.
Featured Models
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
Technical Specifications
Performance Comparison
ParameterDirect-Acting SeriesPilot-Operated Series
Model RangePV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16
Displacement per Revolution10-25 cm³/rev14-150 cm³/rev
Max Continuous Pressure100 bar160 bar
Max Peak Pressure120 bar (short-term overload ≤5s)200 bar (short-term overload ≤5s)
Speed Range600-2800 rpm600-3600 rpm
Max Flow Rate at 1800 rpm36 l/min270 l/min
Volumetric Efficiency≥90% (at 160 bar, 1800 rpm, ISO VG 46)≥92% (at 160 bar, 1800 rpm, ISO VG 46)
Total Efficiency≥80%≥82%
Noise Level at 1m≤63 dB(A)≤65 dB(A)
Operating Conditions
ParameterSpecification
Suction Pressure Range-0.8 to +1 bar (absolute: 0.2-1.1 bar)
Compatible Hydraulic FluidsMineral oil (HLP) and synthetic oil (HETG/HEES)
Fluid Viscosity Range10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Optimal Viscosity Range16-160 mm²/s
Fluid Temperature Range-20 to +80 °C (operation); -40 to +90 °C (storage)
Mounting StandardISO 3019-2 flange; optional foot mounting available
Note: Use FKM seals when operating with synthetic fluids
Available Models
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
Product Image
PV7-1X/40-4</section><section class=
Frequently Asked Questions
How to troubleshoot unstable flow output in PV7-2X variable-displacement pumps?
Check for contamination in the compensation valve core, inspect control mechanism spring fatigue, verify oil pressure stability, and clean or replace faulty components promptly.
What mounting flanges are available for PV7 series pumps?
Common mounting flanges include ISO 3019/2, SAE A, and SAE B flanges. Customized mounting flanges can be provided according to customer requirements.
Can PV7 series pumps be used in high-frequency start-stop systems?
Yes, but ensure the pump is filled with oil before each start to avoid dry running, and select a motor with good starting performance to reduce start-stop impact.
What is the impact of oil viscosity on PV7 series pump performance?
Excessively high viscosity increases suction resistance and power consumption; excessively low viscosity increases internal leakage and reduces volumetric efficiency. Recommended viscosity is 20-30 mm²/s under normal operating temperature.
How to replace vanes in PV7 series pumps?
Disassemble the pump end cover, remove stator and rotor assembly, extract worn vanes, install new vanes in rotor slots (note installation direction), apply hydraulic oil to vanes, and reassemble pump in reverse order of disassembly.
