PV7 Series Hydraulic Vane Pumps
Product Overview
German Rexroth original stock PV7 series hydraulic vane pumps designed for industrial applications requiring reliable performance and precise fluid power delivery.
Technical Specifications
| Parameter |
Specification |
| Model Series |
PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models) |
| Displacement per Revolution |
10-25 cm³/rev (varies by specific model) |
| Maximum Operating Pressure |
210 bar (continuous), 250 bar (peak) |
| Maximum Speed |
1800-3600 rpm (depends on displacement and fluid viscosity) |
| Minimum Speed |
600 rpm (ensures stable operation) |
| Fluid Medium |
Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended) |
| Fluid Temperature Range |
-20 °C to +80 °C (operation); -40 °C to +90 °C (storage) |
| Viscosity Range |
10-1000 mm²/s (operation); 2-1500 mm²/s (start-up) |

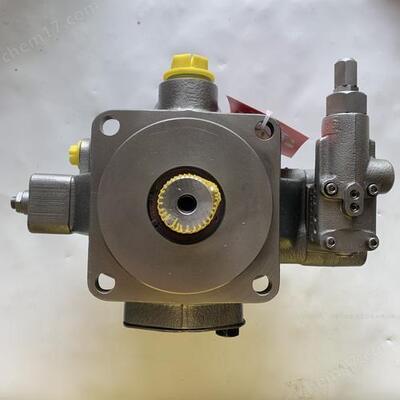

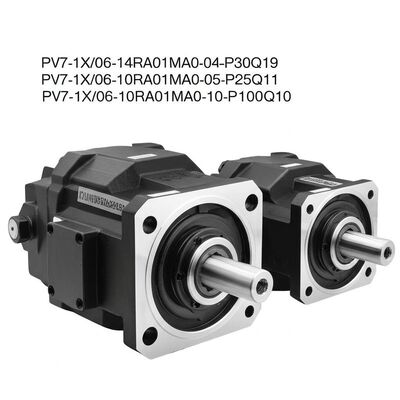

![PV7-1X/06-14RA01
<div class=]()
Available Models
PV7-1X/06-14RA01MA0-04-P30Q19
PV7-1X/06-10RA01MA0-05-P25Q11
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-2X/20-20RA01MA0-10-P100
PV7-2X/20-25RA01MA0-05-P24Q30
PV7-1X/06-10RA01MA0-05-P35Q11
PV7-2X/20-25RA01MA0-05-P30Q25
PV7-1X/06-10RA01MA0-05-P40Q11
PV7-2X/20-25RA01MA0-05-P30Q36
PV7-1X/06-10RA01MA0-05-P50Q15
PV7-2X/20-25RA01MA0-05-P45Q35
PV7-1X/06-10RA01MA0-10-P55Q12
PV7-2X/20-25RA01MA0-05-P45Q36
PV7-1X/06-10RA01MA0-10-P65Q12
PV7-2X/20-25RA01MA0-10-P63Q35
PV7-1X/06-10RA01MA0-10-P70Q12
PV7-1X/06-10RA01MA0-05-P15Q08
PV7-1X/06-14RA01MA0-07-P70Q18
PV7-1X/06-10RA01MA0-05-P25Q09
PV7-1X/06-14RA01MA0-04-P30Q19
PV7-1X/06-10RA01MA0-05-P25Q11
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-1X/06-10RA01MA0-05-P35Q09
Frequently Asked Questions
What is the difference between the PV7-1X and PV7-2X subseries?
The PV7-1X is a fixed-displacement vane pump with a simple structure and stable flow output; the PV7-2X is a variable-displacement vane pump that can adjust displacement automatically according to system pressure or flow demand to achieve energy saving.
How to adjust the output flow of the PV7-2X variable-displacement pump?
The PV7-2X is equipped with a pressure compensation or flow compensation control mechanism; adjust the set value of the compensation valve through the adjusting screw on the pump body to change the output flow of the pump.
What causes the PV7 series pump to fail to build pressure?
Possible reasons include severe internal leakage of the pump, incorrect setting of the relief valve, blocked oil suction path, damaged control valve core of the variable-displacement pump, or insufficient oil in the tank.
Can the PV7 series pumps be used in series or parallel connection?
Yes, multiple PV7 pumps can be connected in series (to increase system pressure) or in parallel (to increase system flow) under the condition of matching the motor power and pipeline diameter; it is necessary to set separate check valves and pressure relief devices for each pump.
What maintenance work should be done regularly for the PV7 series pumps?
Regular maintenance includes checking the oil level and cleanliness of the hydraulic oil, cleaning the suction filter and return filter, inspecting the tightness of the shaft seal and pipeline joints, checking the vibration and noise of the pump, and replacing the hydraulic oil and filter elements according to the maintenance cycle.
