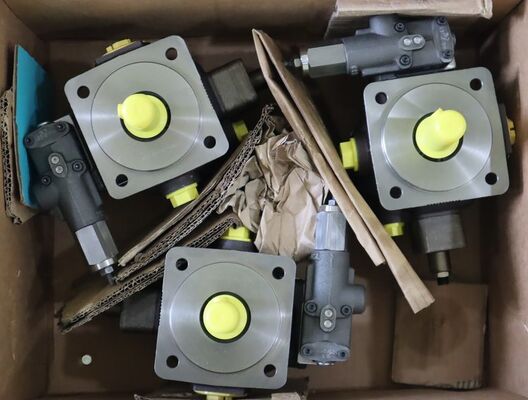

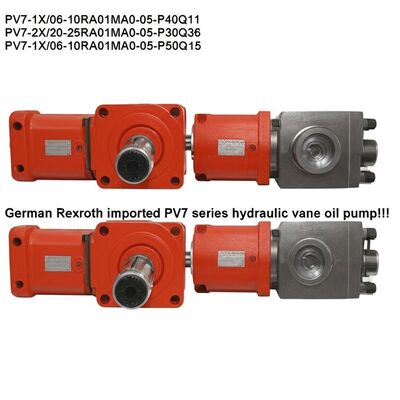

PV7-1X/06-10RA01MA0-05-P40Q11 PV7-2X/20-25RA01MA0-05-P30Q36 PV7-1X/06-10RA01MA0-05-P50Q15 German Rexroth imported PV7 series hydraulic vane oil pump

1. Q: What is the recommended oil temperature range for PV7 series pumps during operation?
A: The optimal operating oil temperature is 40–60 °C; the allowable short-term maximum temperature should not exceed 80 °C, and the minimum temperature should not be lower than 10 °C to avoid viscosity abnormalities affecting performance.

2. Q: What causes abnormal noise during the operation of PV7 series pumps?
A: Common causes include insufficient oil suction (such as clogged suction filters, too-small suction pipe diameters), air mixed in the hydraulic oil, excessive oil viscosity, worn pump internal components, or loose mounting bolts.

3. Q: How to maintain the suction side of PV7 series pumps to ensure normal operation?
A: Install a suction filter with a filtration accuracy of 80–100 μm, ensure the suction pipe has a smooth path with minimal bends, keep the oil level in the tank sufficient, and avoid negative pressure at the suction port exceeding 0.2 bar.

4. Q: Is the PV7 series pump equipped with a built-in relief valve?
A: Standard PV7 models do not have a built-in relief valve; a separate relief valve needs to be configured in the hydraulic system to set the maximum system pressure and protect the pump and other components.

5. Q: What is the service life of the PV7 series vane pump under normal operating conditions?
A: Under proper installation, maintenance, and operating conditions (compliant with oil cleanliness, temperature, and pressure requirements), the mean time between failures (MTBF) can reach more than 8000 operating hours.
