PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock

PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock
PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock

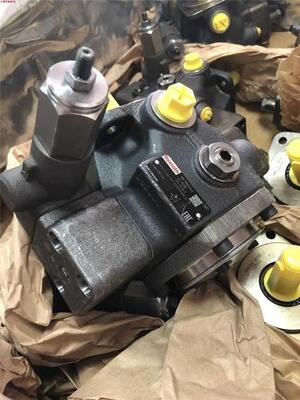

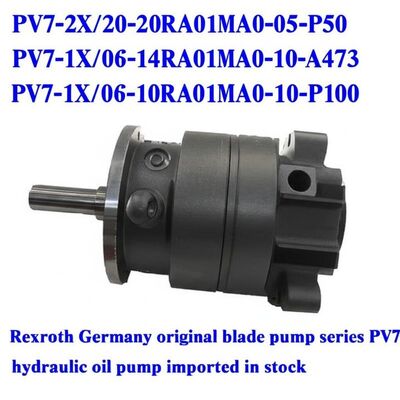

Large Image :  PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 Rexroth Germany original blade pump series PV7 hydraulic oil pump imported in stock

Description
Weight: 8–15 Kg (varies By Model And Configuration) Inlet/Outlet Port: BSPP, BSPT Or SAE Thread (port Size Matches Displacement)
Seal Type: Viton® Or NBR Shaft Seals (resistant To High Temperature And Oil) Shaft Connection: Splined Shaft (ISO 4162 Standard) Or Keyed Shaft (customizable)
Mounting Type: Flange Mounting (ISO 3019-2 Standard), Foot Mounting (optional) Suction Pressure: -0.8 Bar To +1 Bar (absolute Pressure: 0.2–1.1 Bar)
Highlight:

Rexroth PV7 hydraulic vane pump

,

original Rexroth blade pump

,

imported hydraulic oil pump

Rexroth PV7 Series Hydraulic Vane Pumps
Featured Models
PV7-2X/20-20RA01MA0-05-P50
PV7-1X/06-14RA01MA0-10-A473
PV7-1X/06-10RA01MA0-10-P100
Technical Specifications
Parameter Direct-Acting Series Pilot-Operated Series
Model Range PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10 PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16
Displacement per Revolution 10-25 cm³/rev 14-150 cm³/rev
Maximum Continuous Pressure 100 bar 160 bar
Maximum Peak Pressure 120 bar (≤5s overload) 200 bar (≤5s overload)
Speed Range 600-2800 rpm 600-3600 rpm
Maximum Flow Rate at 1800 rpm 36 l/min 270 l/min
Volumetric Efficiency ≥90% ≥92%
Total Efficiency ≥80% ≥82%
Noise Level at 1m ≤63 dB(A) ≤65 dB(A)
Weight Range 8-12 kg 10-35 kg
Operating Conditions
Suction Pressure Range -0.8 to +1 bar (absolute: 0.2-1.1 bar)
Compatible Hydraulic Fluids Mineral oil (HLP) and synthetic oil (HETG/HEES)
Fluid Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Fluid Temperature Range -20 to +80 °C (operation); -40 to +90 °C (storage)
Mounting Standard ISO 3019-2 flange; optional foot mounting
Shaft Connection ISO 4162 splined shaft; keyed shaft available
Seal Materials NBR (standard, mineral oil) and FKM (optional, synthetic oil)
PV7-2X/20-20R <div class=Available Models
PV7-2X/20-25RA01MA0-05-P32
PV7-1X/06-14RA01MA0-07-P50
PV7-2X/20-25RA01MA0-05-P50
PV7-1X/06-14RA01MA0-07-P65
PV7-1X/06-14RA01MA0-07-P70
PV7-2X/20-20RA01MA0-10-P65
PV7-2X/20-20RA01MA0-05-P25
PV7-2X/20-20RA01MA0-05-P50
PV7-1X/06-14RA01MA0-10-A473
PV7-1X/06-10RA01MA0-10-P100
PV7-1X/06-14RA01MA0-10-A492
PV7-2X/20-20RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-05-A480
PV7-2X/20-20RA01MA0-10-A480
PV7-1X/06-10RA01MA0-10-C3.1
PV7-2X/20-20RA01MA0-10-P100
PV7-2X/20-25RA01MA0-05-P24Q30
PV7-1X/06-10RA01MA0-05-P35Q11
PV7-2X/20-25RA01MA0-05-P30Q25
PV7-1X/06-10RA01MA0-05-P40Q11
PV7-2X/20-25RA01MA0-05-P30Q36
PV7-1X/06-10RA01MA0-05-P50Q15
PV7-2X/20-25RA01MA0-05-P45Q35
PV7-1X/06-10RA01MA0-10-P55Q12
PV7-2X/20-25RA01MA0-05-P45Q36
PV7-1X/06-10RA01MA0-10-P65Q12
PV7-2X/20-25RA01MA0-10-P63Q35
PV7-1X/06-10RA01MA0-10-P70Q12
PV7-1X/06-10RA01MA0-05-P15Q08
PV7-1X/06-14RA01MA0-07-P70Q18
PV7-1X/06-10RA01MA0-05-P25Q09
PV7-1X/06-14RA01MA0-04-P30Q19
PV7-1X/06-10RA01MA0-05-P25Q11
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-1X/06-10RA01MA0-05-P35Q09
Frequently Asked Questions
What filter precision is required for the PV7 pump's suction line?
≤25μm coarse filter; submerge the filter ≥5cm below the liquid level to prevent air inhalation.
Is a pressure filter required for the PV7 pump system?
Recommended: ≤10μm pressure filter to protect the pump and control components.
How often should hydraulic oil be changed for PV7 pumps?
500 hours (break-in period): First oil change; 2000 hours (normal operation): Regular oil change; adjust based on working conditions.
What happens if the hydraulic oil viscosity is too high for the PV7 pump?
Increased suction resistance, poor blade movement, reduced flow rate, and increased energy consumption.
What are the consequences of low hydraulic oil viscosity for PV7 pumps?
Increased internal leakage, reduced volumetric efficiency, and accelerated seal wear.
