PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump

PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump
PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump

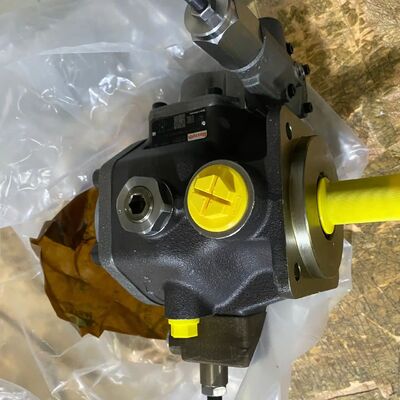

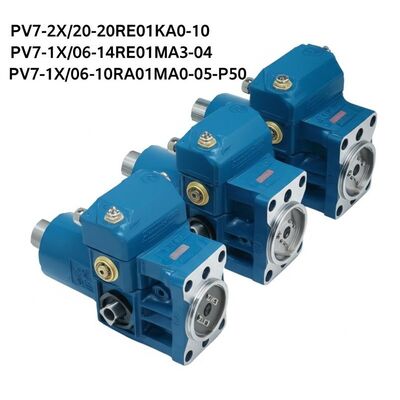

Large Image :  PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 Original hydraulic oil pump imported from Germany by Rexroth PV7 series vane pump

Description
Application: Industrial Hydraulic Systems, Construction Machinery, Agricultural Equipment, Machine Tools Efficiency: Volumetric Efficiency ≥ 95%, Total Efficiency ≥ 90%
Noise Level: ≤ 65 DB(A) At Rated Speed And Pressure Seal Type: Viton® Seal (standard), FKM Seal (high-temperature Option)
Shaft Type: Splined Shaft (SAE Spline Standard), Cylindrical Shaft Mounting Type: Flange Mounting (SAE A, SAE B), Foot Mounting
Shaft Rotation Direction: Clockwise (CW) / Counterclockwise (CCW), Reversible
Highlight:

Rexroth PV7 vane pump

,

hydraulic oil vane pump

,

German imported vane pump

Product Information
Rexroth PV7 Series Vane Pump
Original hydraulic oil pump imported from Germany. High-performance vane pump designed for industrial hydraulic applications.
Technical Specifications
Parameter Specification
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10-25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800-3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
Seal Type Viton® or NBR shaft seals (resistant to high temperature and oil)
Inlet/Outlet Port BSPP, BSPT or SAE thread (port size matches displacement)
Weight 8-15 kg (varies by model and configuration)
PV7-2X/20 <div class=Available Models
PV7-2X/20-20RA01MA0-10 PV7-1X/06-14RA01MA3-07 PV7-2X/20-20RA01MA3-05 PV7-1X/06-14RE01MA0-04 PV7-2X/20-20RA01MA3-10 PV7-1X/06-14RE01MA0-07 PV7-2X/20-20RE01KA0-10 PV7-1X/06-14RE01MA3-04 PV7-1X/06-10RA01MA0-05-P50 PV7-2X/20-20RA01MA0-10-P85 PV7-1X/06-10RA01MA0-10-P50 PV7-2X/20-25RA01MA0-05-P32 PV7-1X/06-14RA01MA0-07-P50 PV7-2X/20-25RA01MA0-05-P50 PV7-1X/06-14RA01MA0-07-P65 PV7-1X/06-14RA01MA0-07-P70 PV7-2X/20-20RA01MA0-10-P65 PV7-2X/20-20RA01MA0-05-P25 PV7-2X/20-20RA01MA0-05-P50 PV7-1X/06-14RA01MA0-10-A473 PV7-1X/06-10RA01MA0-10-P100 PV7-1X/06-14RA01MA0-10-A492 PV7-2X/20-20RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-05-A480 PV7-2X/20-20RA01MA0-10-A480 PV7-1X/06-10RA01MA0-10-C3.1 PV7-2X/20-20RA01MA0-10-P100 PV7-2X/20-25RA01MA0-05-P24Q30 PV7-1X/06-10RA01MA0-05-P35Q11 PV7-2X/20-25RA01MA0-05-P30Q25 PV7-1X/06-10RA01MA0-05-P40Q11 PV7-2X/20-25RA01MA0-05-P30Q36 PV7-1X/06-10RA01MA0-05-P50Q15 PV7-2X/20-25RA01MA0-05-P45Q35 PV7-1X/06-10RA01MA0-10-P55Q12 PV7-2X/20-25RA01MA0-05-P45Q36 PV7-1X/06-10RA01MA0-10-P65Q12 PV7-2X/20-25RA01MA0-10-P63Q35 PV7-1X/06-10RA01MA0-10-P70Q12 PV7-1X/06-10RA01MA0-05-P15Q08 PV7-1X/06-14RA01MA0-07-P70Q18 PV7-1X/06-10RA01MA0-05-P25Q09 PV7-1X/06-14RA01MA0-04-P30Q19 PV7-1X/06-10RA01MA0-05-P25Q11 PV7-1X/06-10RA01MA0-10-P100Q10 PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 PV7-1X/63-71RE07MW0-16WG PV7-1X/10-20RE01MD5-10 PV7-1X/25-30RE01MW0-16WG PV7-1X/40-45RE37MW5-16WG PV7-1X/100-118RE07MC5-16WG PV7-1X/63-94RE07MC7-08WG PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7-1X/100-118RE07MC0-16 PV7-1X/63-71RE07MD0-16 PV7-1X/40-45RE37MC0-16-P90 PV7-1X/25-30RE01MC0-16-P100Q38 PV7-1X/100-150RE07MC0-08-A464 PV7-1X/100-118RE07MD0-16 PV7-1X/10-14RE01MN0-16 PV7-1X/40-45RE37MC5-16 PV7-1X/100-118RE07MC5-16 PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 PV7-1X/16-20RE01MD3-16 PV7-1X/16-20RE01MC0-16-P110 PV7-1X/40-45RE37KD0-16-C3.1 PV7-1X/63-71RE07MC5-16WH PV7-1X/16-30RE01KC0-08 PV7-1X/10-14RE01MD5-16 PV7-1X/63-71RE07MC6-16 PV7-1X/16-20RE01KD0-16
Installation & Operation FAQ
Can the PV7 pump be installed vertically (inverted)?
No, horizontal mounting is recommended (shaft extension horizontal or upward) to avoid poor internal lubrication and bearing overheating.
What is the maximum allowable suction height for the PV7 pump?
≤0.5m (distance from tank liquid level to pump suction port); increase pipe diameter or add an auxiliary suction pump if exceeded.
What type of coupling should be used for PV7 pump installation?
Flexible couplings (e.g., plum-blossom or jaw-type) are mandatory; rigid couplings are prohibited.
What is the required coaxiality between the PV7 pump and motor?
Coaxiality ≤0.05mm; check with a dial indicator to prevent shaft bending and bearing damage.
How to torque the mounting bolts of the PV7 pump?
Use 8.8-grade high-strength bolts and tighten them evenly in a diagonal pattern (e.g., M8 bolts: 12-15N*m; M10 bolts: 25-30N*m).

Tag:

rexroth piston,

axial piston pump,

electric piston pump
