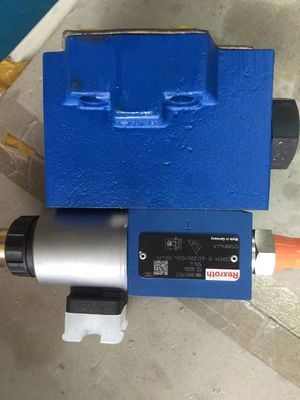

Rexroth Proportional Directional Valve with 315 Bar Maximum Pressure 75 L/min Flow Rate and ISO 4401 Mounting

The REXROTH 4WRA6 is a direct-operated, proportional directional valve without electrical position feedback or integrated electronics (OBE). It controls the direction and volume of hydraulic fluid flow and is designed for subplate mounting per ISO 4401 standards. Its maximum operating pressure is 315 bar, with flow rates up to 75 L/min (depending on model).

• Direct-operated design for precise flow control without external feedback
• Proportional solenoid control with detachable coils and centering thread for easy maintenance
• Spring-centered spool that returns to neutral when de-energized
• Compatibility with external electronics (e.g., Eurocard amplifiers) for signal control
• Compact sizes: NG6 and NG10

When an electrical signal is sent to the proportional solenoid, it generates a force that moves the spool proportionally. This adjusts the opening of flow paths between ports P (pressure), A/B (actuator lines), and T (tank), enabling continuous control of flow direction and volume. The spool returns to center via springs when de-energized.

This valve suits applications requiring precise hydraulic control, such as:

• Industrial machinery (e.g., presses, plastic injection molding)
• Mobile equipment (e.g., cranes, excavators)
• Systems needing directional and flow control without integrated electronics

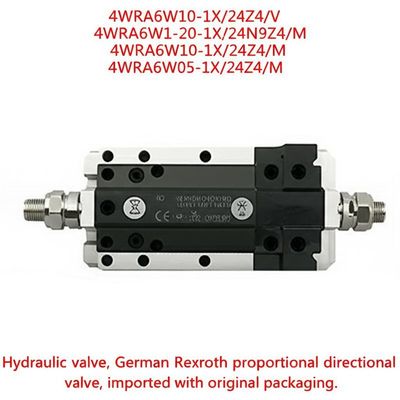

Model codes indicate specifications (e.g., 4WRA6E07-2X/G24N9K4/V):

• 4WRA6: Series and size (NG6)
• E07: Spool type and control configuration
• G24N9K4: 24V DC supply, corrosion-resistant coating

Consult REXROTH datasheets or suppliers for exact requirements like flow rate, spool type, and electrical inputs.
