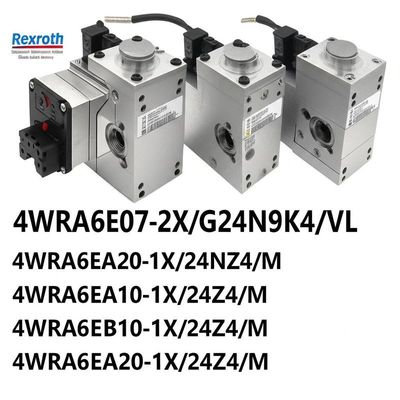

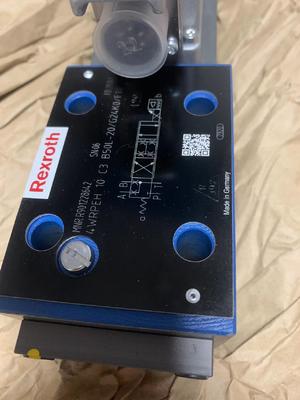

Rexroth Proportional Directional Valve 4WRA Series with 280 bar Nominal Pressure ISO 4401 Mounting Interface and 24V Voltage

The Rexroth 4WRA series is a line of direct-operated, proportional directional control valves designed for precise electronic control of hydraulic flow direction and volume. They convert an electrical input signal into proportional mechanical movement of the valve spool, allowing for infinite control over cylinder speed or motor velocity in hydraulic systems. These valves are widely used in demanding industries like steel mills, aviation, heavy machinery, and automation.

The model number provides key specifications:

• 4: Indicates 4 main hydraulic ports
• WR: Identifies it as a proportional directional valve
• A / AE: The suffix is critical
  • A: Valve without integrated electronics (OBE). Requires an external amplifier
  • AE: Valve with Integrated Electronics (OBE). The amplifier is built into the valve, simplifying wiring
• 6 or 10: The nominal size (e.g., 6 or 10), which relates to flow capacity
• Subsequent codes specify the spool type, flow rate at a given pressure, power supply, electrical connector type, and seal material

Key features include:

• Direct-operated design: Provides fast response times
• Spring-centered spool: Returns the valve to a neutral center position when de-energized
• ISO 4401 mounting interface: Allows for easy installation on standard interface plates
• Detachable coils: Facilitates maintenance and replacement
• Integrated Electronics (OBE) option (4WRAE): Models with built-in electronics simplify the control system and offer features like plug-and-play installation and diagnostic feedback
• Robust construction: Designed for reliable operation in harsh industrial environments

The 4WRA series is versatile and found in applications requiring precise motion control, such as:

• Industrial hydraulic presses and plastic injection molding machines
• Mobile machinery for construction and agriculture
• Automation systems for material handling
• Steel mill equipment and test benches

The primary difference is the location of the control electronics:

• 4WRA: Requires an external amplifier (e.g., Eurocard format) that is ordered separately. The control system sends a signal to this external unit, which then powers the valve's solenoid
• 4WRAE: Has an amplifier integrated directly into the valve coil (OBE). It accepts standard analog control signals (e.g., ±10V or 4-20mA) directly, eliminating the need for a separate amplifier box and simplifying the system design

Proper installation and maintenance are critical for longevity and performance:

• Installation: Follow the manufacturer's guidelines for mounting (including orientation and torque specifications) and ensure hydraulic connections are clean and tight. The valve must be installed according to the flow direction markings
• Oil Cleanliness: This is the most important maintenance factor. Maintain oil cleanliness per NAS 1638 Class 7-9 standards using high-quality filters to prevent valve spool clogging and damage
• Electrical Connections: Ensure all electrical connections are secure and the power supply voltage is within the specified tolerance (typically ±10%)
• Regular Inspection: Periodically check for leaks, physical damage, and unusual noises during operation

Common failures are often related to contamination or electrical issues:

• Valve does not respond / no movement:
  • Cause: No electrical signal, coil failure, or severely stuck spool
  • Action: Check input signal and power supply. Verify coil resistance with a multimeter. Inspect for a spool stuck due to oil contamination
• Erratic or unstable operation (cylinder drift, jerky movement):
  • Cause: Contamination blocking the spool or orifices, worn spool, or issues with the feedback sensor in closed-loop models
  • Action: Check oil cleanliness and filters. Clean the valve internals. For electrical issues, verify signal integrity and check for excessive hysteresis
• Increased leakage or unable to maintain pressure:
  • Cause: Internal wear of the spool and sleeve or damaged seals
  • Action: Check for wear. Replace the valve or seals as necessary
• Slow response:
  • Cause: Air in the system, clogged damping orifices, or a failing solenoid
  • Action: Bleed air from the system. Clean the valve thoroughly

Calibration ensures the valve's output (flow/pressure) accurately corresponds to the input signal. The frequency depends on the application's precision demands and operating conditions:

• General guideline: Annual calibration is a good baseline for valves under normal conditions
• High-precision or harsh applications: Calibration may be needed every six months or even quarterly
• After repair or modification: The valve should always be calibrated before being returned to service

Simple mechanical issues like a contaminated spool can often be resolved by a trained technician through disassembly and cleaning. However, repairing internal electronic components (e.g., a damaged solenoid or integrated amplifier) is complex.
Calibration is a specialized process that typically requires a dedicated test bench to adjust the mechanical zero (spool's neutral position) and the electrical zero (ensuring equal flow output for equal input signals in both directions). This is best performed by qualified personnel using proper equipment.

This information is specific to each model code. You should consult the official Rexroth product datasheet or sample for the exact valve type (e.g., 4WRA 6 E30-2X/G24K4/V). Key specifications to look for include:

• Nominal Flow Rate: (e.g., 30 l/min at a pressure drop of 10 bar)
• Maximum Operating Pressure (e.g., 350 bar)
• Power Supply Voltage (e.g., 24V DC)
• Input Signal Type (e.g., ±10V or 4-20mA for 4WRAE models)

For specific model details and application engineering, always refer to the official Rexroth technical documentation or contact an authorized distributor.
