Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature

Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature
Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature

Large Image :  Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: A2FO80/61L-VQDN55 A2FO80/61R-VQDN55 A2FO90/61R-VUDN55 A2FO90/61R-PBB05 A2FO90/61L-PBB05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,L/C,D/A
Supply Ability: 100
Contact Now

Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature

Description
Whatsapp: +85267220981 Control Type: Pressure Compensator
Charging: Micro5p Displacement: 28cc
Standard Or Nonstandard: Standard Operating Temperature: Up To 80°C
Color: Customised Making Shaft Size: 22mm
Drive Mode: Mechanically Driven Pump Application: Electric Factory
Shaft Type: Splined Pressure: High Pressure
Theory: Rotary Pump
Highlight:

28cc Displacement Piston Pump

,

100% Tested Great Performance Hydraulic Motor

,

Up to 80°C Operating Temperature Plunger Pump

Rexroth A2FO Series Plunger Pump Hydraulic Motor
Product Models

A2FO80/61L-VQDN55
A2FO80/61R-VQDN55
A2FO90/61R-VUDN55
A2FO90/61R-PBB05
A2FO90/61L-PBB05

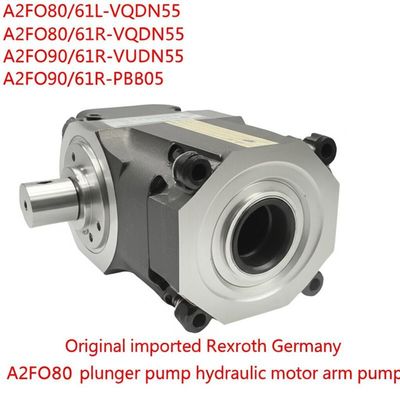

Original imported Rexroth Germany A2FO80 plunger pump hydraulic motor arm pump

Product Specifications
Brand Name Rexroth
Place of Origin Germany
Warranty 12 Months
Video outgoing-inspection Provided
Machinery Test Report Provided
Application Machinery Repair Shops
Material Iron
Condition Original
Quality 100% Tested Great Performance
Certification ISO
Feature Long Life Low Noise
Function Filter Diesel Oil
Power Hydraulic Power
Payment Term T/T 100%

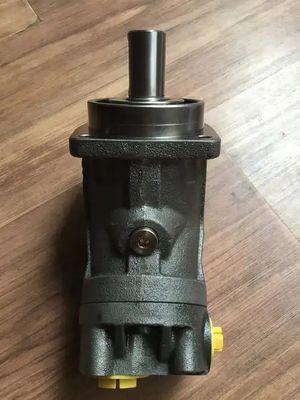

Product Image
Original Imported Rexroth Germany 28cc Displacement High Pressure Piston Pump with 100% Tested Great Performance and Up to 80°C Operating Temperature 0
Additional Models

A2FO80/61R-VPB05-S
A2FO80/61R-VPB05-S
A2FO80/61R-VZB05
AA2FO80/61-NBD55
AA2FO80/61L-PQDN55
AA2FO80/61L-VQDN05-Y
AA2FO80/61L-VQDN55
AA2FO80/61L-VQDN55
AA2FO80/61R-VQDN05-Y
AA2FO80/61R-VQDN05I-S
AA2FO80/61R-VQDN55
AA2FO80/61R-VQDN55-E
A2FO90/61L-VBB05
A2FO90/61R-VBB05
A2FO90/61L-PAB05
A2FO90/61L-PAB05
A2FO90/61L-PAB05
A2FO90/61L-PBB05
A2FO90/61L-PBB05
A2FO90/61L-PBB05
A2FO90/61L-PBB05
A2FO90/61L-VAB05
A2FO90/61L-VBB05
A2FO90/61L-VBB05-S
A2FO90/61L-VBB05-S
A2FO90/61L-VBB05-S
A2FO90/61R-PAB05
A2FO90/61R-PAB05
A2FO90/61R-PAB05
A2FO90/61R-PBB05
A2FO90/61R-PBB05
A2FO90/61R-PBB05
A2FO90/61R-PBB05
A2FO90/61R-PBB05
A2FO90/61R-PBB05-S
A2FO90/61R-VAB05
A2FO90/61R-VAB05-S
A2FO90/61R-VAB05-Y
A2FO90/61R-VBB05
A2FO90/61R-VBB05
A2FO90/61R-VBB05
A2FO90/61R-VBB05
A2FO90/61R-VBB05-S
A2FO90/61R-VBB05-S
A2FO90/61R-VBB05-S
A2FO90/61R-VBB05-S

Frequently Asked Questions
Product Overview & Features
Q: What is the Rexroth A2FO56 series?
A: The A2FO56 is a series of fixed displacement axial piston pumps with a swash plate design (specifically, a "bent-axis" design with a conical piston rotor assembly) intended for use in open circuit hydrostatic drives. They are suitable for both mobile and stationary applications.
Q: What are the key features of the A2FO56 pump?
A: Key features include:
  • High Power Density: Provides substantial power output relative to its size
  • Compact Design and Small Dimensions: Saves space in equipment design
  • High Overall Efficiency: Contributes to energy savings
  • Robust Bearing Design: The drive shaft bearing is designed to meet the service life requirements of demanding applications
  • One-Piece Piston with Piston Ring Seal: Contributes to reliable performance
  • Economic Design: Offers a cost-effective solution
Technical Specifications & Models
Q: What are the key technical parameters for the A2FO56 series?
A: Primary specifications for the A2FO56 include:
  • Geometric Displacement per Revolution: 56.1 cm³/rev
  • Rated Pressure: 35 MPa (350 bar)
  • Peak Pressure: 40 MPa (400 bar)
  • Speed Range: Approximately 500 to 3500 rpm (dependent on specific model and pressure)
  • Flow Rate: Proportional to drive speed and displacement; approximately 112 L/min at nominal speed (e.g., 2000 rpm) and Δp=350 bar
  • Mass: Approximately 18 kg
Q: How is the A2FO56 model number structured? Can you provide examples?
A: The model code contains information about size, shaft design, port configuration, and control options. Examples of specific models within the A2FO56 series include:
  • A2FO56/61L-PPB05
  • A2FO56/61R-PPB05-S
  • A2FO56/61R-NPB05
  • A2FO56/61L-VBB05
(Note: Components like /61L, /61R, -PPB05, -NPB05 indicate specific design variations such as rotation direction, porting, and control features)
Maintenance & Servicing
Q: What routine maintenance does the A2FO56 pump require?
A: Proper maintenance is crucial for longevity and reliable operation. Key practices include:
  • Pre-Startup Check: Verify oil level in the tank before startup. Use the recommended grade of hydraulic fluid
  • Initial Run: After a shutdown of more than 4 hours, allow the pump to run without load for at least 5 minutes before applying pressure
  • Regular Monitoring: Consistently check operating parameters like pressure, speed, and, importantly, oil temperature during work. The optimal operating oil temperature is typically suggested to be between 35°C and 60°C. If a sudden temperature rise occurs, investigate the cause immediately
  • Inspection: Regularly check pipe joints and flange connections for tightness to prevent leaks and air ingress
  • Oil Cleanliness: Maintain the cleanliness of the hydraulic oil. The higher the oil cleanliness, the longer the service life of the pump. External contaminants must be prevented from entering the reservoir and the pump
Q: What should I do if the pump's flow rate is insufficient or performance drops?
A: Potential causes based on common issues include:
  • Low Drive Speed: Ensure the motor meets the pump's required rated speed
  • Leaks in the System: Check the system for and repair any leakage points
  • Aeration/Suction Problems: Inspect the suction line for air leaks. Ensure the oil level in the tank is not too low
  • Loose Pump Casing Bolts: Prolonged operation and vibration can loosen bolts, which may need tightening to specification
Contact: whatsapp | +85267220981 | email | yli97584@gmail.com
