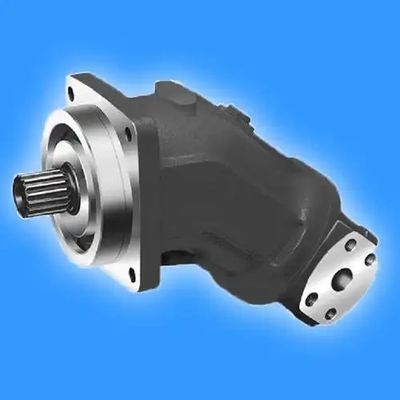

Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery

I'm Online Chat Now

Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery

Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery
Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery

Large Image :  Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO

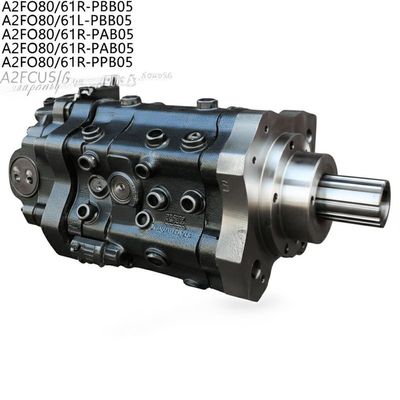

Model Number: A2FO80/61R-PBB05 A2FO80/61L-PBB05 A2FO80/61R-PAB05 A2FO80/61L-PAB05 A2FO80/61R-PPB05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100

Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery

Description
Whatsapp: +85267220981 Cylinder Number: Single Cylinder
Power: Hydraulic Charging: Micro5p
Condition: Internal Meshing Principle Email: Yli97584@gmail.com
Warranty: 1 Year Nominal Pressure: 35Mpa
Delivery Date: 5 Days Pressure Rating: 280 Bar
Pump Shaft Position: Horizontal Transport Package: Wooden Box
Usage: Oil
Highlight:

35Mpa Hydraulic Piston Pump

,

280 bar Hydraulic Piston Pump

,

1 Year Warranty Piston Pump

A2FO80/61R-PBB05
A2FO80/61L-PBB05
A2FO80/61R-PAB05
A2FO80/61L-PAB05
A2FO80/61R-PPB05 Arm pump A2FO56 Rexroth German construction machinery hydraulic motor quantitative piston pump
whatsapp | +85267220981 | email | yli97584@gmail.com
Brand Name Rexroth Place of Origin Germany
Warranty 12 Months Video outgoing-inspection Provided
Machinery Test Report Provided Application Machinery Repair Shops
Material Iron Condition Original
Type A2FO80/61R-PBB05
A2FO80/61L-PBB05
A2FO80/61R-PAB05
A2FO80/61L-PAB05
A2FO80/61R-PPB05
Quality 100% Tested Great Performance Certification ISO
Feature Long Life Low Noise Function Filter Diesel Oil
Power Hydraulic Power Payment Term T/T 100%
Rexroth German 35Mpa 280 bar Hydraulic Piston Pump with 1 Year Warranty for Construction Machinery 0
Product Models
  • A2FO63/61R-PBB05-S
  • A2FO80/61L-PPB050
  • A2FO80/61L-PAB05
  • A2FO80/61L-PAB05
  • A2FO80/61L-PAB05
  • A2FO80/61L-PBB05
  • A2FO80/61L-PBB05
  • A2FO80/61L-PBB05
  • A2FO80/61L-PBB05
  • A2FO80/61L-PPB05
  • A2FO80/61L-PPB05
  • A2FO80/61L-PPB05
  • A2FO80/61L-PPB05
  • A2FO80/61L-PSB05-S
  • A2FO80/61L-PZB05
  • A2FO80/61L-PZB05
  • A2FO80/61L-PZB05
  • A2FO80/61L-PZB05
  • A2FO80/61L-VAB05
  • A2FO80/61L-VAB05
  • A2FO80/61L-VAB05
  • A2FO80/61L-VAB05
  • A2FO80/61L-VAB05-S
  • A2FO80/61L-VBB05
  • A2FO80/61L-VBB05-S
  • A2FO80/61L-VBB05-S
  • A2FO80/61L-VPB05
  • A2FO80/61L-VPB05
  • A2FO80/61L-VPB05
  • A2FO80/61L-VPB05
  • A2FO80/61L-VPB05-S
  • A2FO80/61L-VPB05-S
  • A2FO80/61L-VZB05
  • A2FO80/61R-PAB05
  • A2FO80/61R-PAB05
  • A2FO80/61R-PAB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05
  • A2FO80/61R-PBB05-S
  • A2FO80/61R-PBB05-S
  • A2FO80/61R-PBB05-S
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
  • A2FO80/61R-PPB05
Frequently Asked Questions
Product Overview & Features
Q: What is the Rexroth A2FO56 series?
A: The A2FO56 is a series of fixed displacement axial piston pumps with a swash plate design (specifically, a "bent-axis" design with a conical piston rotor assembly) intended for use in open circuit hydrostatic drives. They are suitable for both mobile and stationary applications.
Q: What are the key features of the A2FO56 pump?
A: Key features include:
  • High Power Density: Provides substantial power output relative to its size.
  • Compact Design and Small Dimensions: Saves space in equipment design.
  • High Overall Efficiency: Contributes to energy savings.
  • Robust Bearing Design: The drive shaft bearing is designed to meet the service life requirements of demanding applications.
  • One-Piece Piston with Piston Ring Seal: Contributes to reliable performance.
  • Economic Design: Offers a cost-effective solution.
Technical Specifications & Models
Q: What are the key technical parameters for the A2FO56 series?
A: Primary specifications for the A2FO56 include:
  • Geometric Displacement per Revolution: 56.1 cm³/rev
  • Rated Pressure: 35 MPa (350 bar)
  • Peak Pressure: 40 MPa (400 bar)
  • Speed Range: Approximately 500 to 3500 rpm (dependent on specific model and pressure)
  • Flow Rate: Proportional to drive speed and displacement; approximately 112 L/min at nominal speed (e.g., 2000 rpm) and Δp=350 bar.
  • Mass: Approximately 18 kg.
Maintenance & Servicing
Q: What routine maintenance does the A2FO56 pump require?
A: Proper maintenance is crucial for longevity and reliable operation. Key practices include:
  • Pre-Startup Check: Verify oil level in the tank before startup. Use the recommended grade of hydraulic fluid.
  • Initial Run: After a shutdown of more than 4 hours, allow the pump to run without load for at least 5 minutes before applying pressure.
  • Regular Monitoring: Consistently check operating parameters like pressure, speed, and, importantly, oil temperature during work. The optimal operating oil temperature is typically suggested to be between 35°C and 60°C. If a sudden temperature rise occurs, investigate the cause immediately.
  • Inspection: Regularly check pipe joints and flange connections for tightness to prevent leaks and air ingress.
  • Oil Cleanliness: Maintain the cleanliness of the hydraulic oil. The higher the oil cleanliness, the longer the service life of the pump. External contaminants must be prevented from entering the reservoir and the pump.
