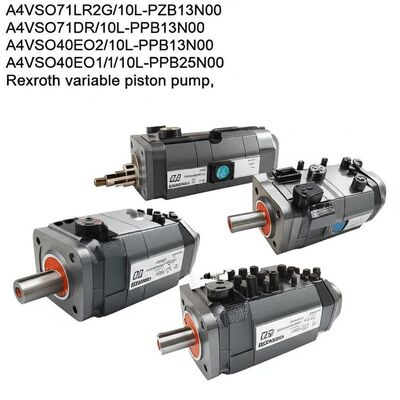

Rexroth A4VSO Variable Piston Pump 315 Bar Max Pressure 290x180mm

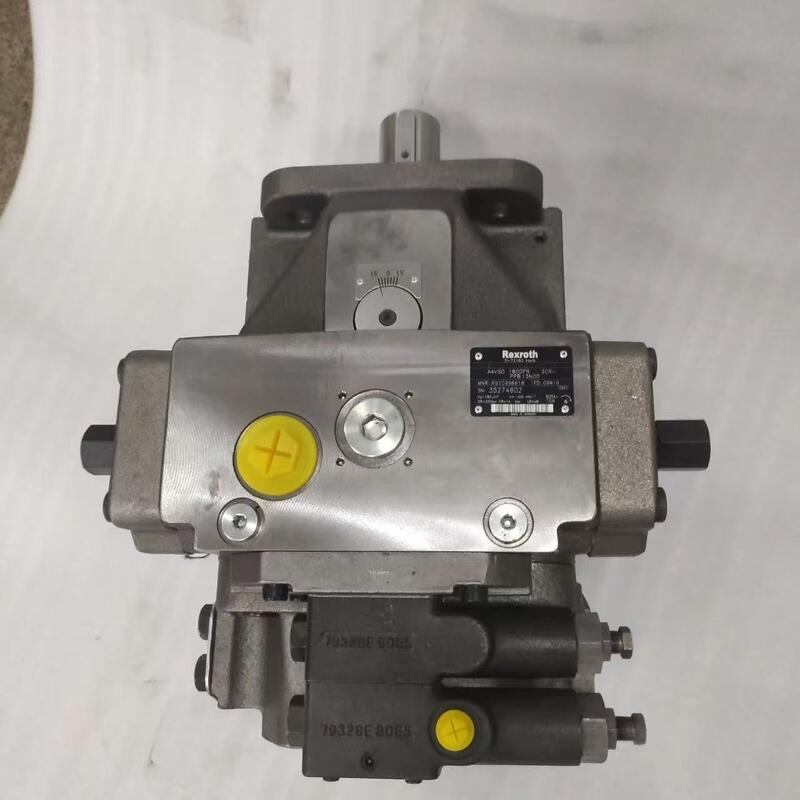

The A4VSO40 and A4VSO71 are models of axial piston variable pumps from the A4VSO series, manufactured by Rexroth. They feature a swashplate design and are specifically engineered for use in open-circuit hydraulic systems. Their flow rate is proportional to both the input drive speed and the displacement volume, allowing for infinite variability of the output flow by adjusting the swashplate angle.

These pumps are recognized for their excellent suction characteristics, which contribute to high operational reliability. They operate at low noise levels and are designed for a long service life. Their modular design offers flexibility for various system integrations. Additional advantages include short response times and the capability for variable speed operation, making them suitable for demanding industrial applications.

• Nominal Pressure: 350 bar
• Peak Pressure: 400 bar
• A4VSO40 Specifics: Displacement of 40, approximate weight of 39 kg, maximum operating speed of 2600 rpm, and a flow rate of 104 L/min.
• A4VSO71 Specifics: Displacement of 71, approximate weight of 53 kg, maximum operating speed of 2200 rpm, and a flow rate of 156 L/min.

A4VSO series pumps, including the A4VSO40 and A4VSO71, are widely used across various industrial sectors. They are commonly found in heavy machinery, industrial hydraulic power units, and other applications requiring robust and efficient variable flow hydraulic power in an open-circuit configuration.

These pumps are compatible with different types of hydraulic fluids. The standard fluid is mineral oil, often indicated by the absence of a specific identifier. They can also use HF (high-performance) fluids, sometimes designated with an 'E'. For high-speed applications, specific fluid types (sometimes indicated by 'H') may be recommended. Always consult the official technical documentation for the most precise and application-specific fluid recommendations.

Yes, the A4VSO pump design can incorporate an auxiliary boost pump or a replenishing pump (a centrifugal pump). A standard pump might not include this feature, but a specific variant, such as version 25, can be supplied with a replenishing pump (denoted as 'L').

For comprehensive technical manuals, detailed performance curves, specific configuration options, and genuine spare parts, it is essential to contact authorized Rexroth distributors or service partners. They can provide precise information tailored to your specific model and application needs.
