Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron

Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron
Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron
Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron

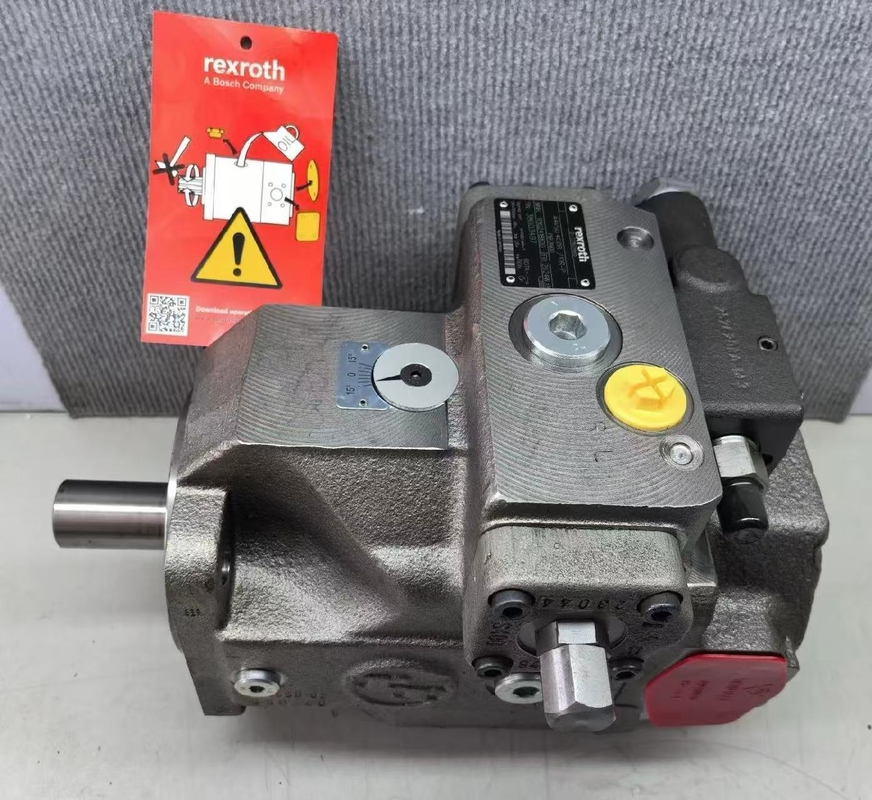

Large Image :  Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: A4VSO250LR2G/22L-PPB25N0 A4VSO250DRG/22L-PPB13N00 A4VSO355LR2/22L-PPB13N00 A4VSO180DRG/22L-PPB13N00 A4VSO125LR2G/22L-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron

Description
Rotation Speed: 1800 - 3000 Rpm Inlet Connection: Threaded Or Flanged
Seal Type: Radial Shaft Seal Material: Cast Iron Or Aluminum
Pressure: High Pressure Pump Shaft Position: Horizontal
Maximum Pressure: 315 Bar Drive Mode: Mechanically Driven Pump
Application: Mobile And Industrial Machinery Structure: Piston Pump
Pressure Rating: 280 Bar
Highlight:

Rexroth A4VSO piston pump

,

high pressure cast iron pump

,

315 bar hydraulic pump

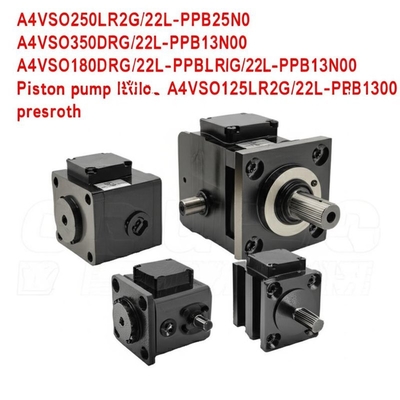

Rexroth A4VSO Series Axial Piston Pumps
A4VSO250LR2G/22L-PPB25N0
A4VSO250DRG/22L-PPB13N00
A4VSO355LR2/22L-PPB13N00
A4VSO180DRG/22L-PPB13N00
A4VSO125LR2G/22L-PPB13N00
High-performance German piston pump for industrial applications with variable displacement and high pressure capabilities.
Contact: WhatsApp | Email
Brand Name Rexroth Place of Origin Fujian, China
Warranty 12 Months Video outgoing-inspection Provided
Machinery Test Report Provided Application Machinery Repair Shops
Material Iron Condition Original
Type A4VSO Series Variable Displacement Pumps
Quality 100% Tested Great Performance Certification ISO
Feature Long Life, Low Noise Function Filter Diesel Oil
Power Hydraulic Power Payment Term T/T 100%
Rexroth A4VSO Piston Pump 315 Bar High Pressure Cast Iron 0
AA4VSO250DR/22R-PPB13K31
AA4VSO125LR2/30L-PZB13N00-SO476
AA4VSO180DR/30R-PPB13N00-SO168
AA4VSO71DRG/10R-VPB25K31
AA4VSO125DP/30R-VZB25U34
AA4VSO71DRG/10X-PPB13K33-SO318
AA4VSO250DP/10X-PPB13N00
AA4VSO250LR2G/22L-PPB13N00
AA4VSO125DRG/30R-PPB13K24-SO318
AA4VSO250DP/30R-VZB25U99
AA4VSO40DR/10R-PPB13K57
AA4VSO125DR/30R-VPB13N00-SO527
AA4VSO71LR2G/10R-PPB13K07
AA4VSO71DR/10R-FPB13N00
AA4VSO250LR2/10R-PZB13N00
AA4VSO71LR2/10R-PPB13K25
AA4VSO40DR/10R-PPB25KB3
AA4VSO71DRG/10X-PPB13K26
AA4VSO180DR/30R-PZB13K31
AA4VSO125LR2G/30R-PPB13K68
AA4VSO180DR/22R-PPB13H00-SO103
AA4VSO40DRG/10R-PZB13K68
AA4VSO125DP/22R-PPB13N00-SO585
AA4VSO180DRG/22R-PPB13K34-SO274
AA4VSO71LR2/10R-PPB13G50
AA4VSO250LR2G/22L-PZB13N00
AA4VSO250LR2D/22R-PPB13N00-SO5
AA4VSO250DR/22L-PPB13K99
AA4VSO250DR/10X-PPB13N00-SO62
AA4VSO250LR2D/30R-KPB13N00
AA4VSO71DRG/10X-PZB13K01
AA4VSO40DRG/10R-PZB13K01
AA4VSO180DR/30R-PPB13N00-SO103
AA4VSO125DRG/22R-PPB13N00-SO580
AA4VSO125LR2G/22R-PZB13K07
AA4VSO125DR/30R-VZB25N00
AA4VSO125LR2/22L-PPB13N00-SO134
AA4VSO250DP/30R-VPB13N00
AA4VSO125DP/10R-PPB13N00-SO534
AA4VSO125DRG/22R-PPB13K07
AA4VSO40DR/10R-PPB13N00-S1306
AA4VSO250DP/30L-VPB13K31
AA4VSO71DR/10R-PPB13N00-SO127
AA4VSO40DRG/10R-PPB13K02-SO580
AA4VSO125DP/10X-PZB13N00
Frequently Asked Questions
1. What is the fundamental working principle of the A4VSO series pump?
The A4VSO series is a swashplate-type axial piston pump designed for open-circuit systems. Its flow output is proportional to the input drive speed and its displacement volume. The displacement is infinitely variable by adjusting the angle of the swashplate. It's known for its excellent suction characteristics, low noise, long service life, and high power-to-weight ratio. Multiple control options are available to meet various system requirements.
2. What are the common control methods for the A4VSO pump?
The A4VSO series offers a wide range of variable control methods. The most commonly used include:
  • DR/DRG: Pressure Control (Constant Pressure)
  • LR: Constant Power Control (Hyperbolic)
  • EO/EO2: Electroproportional Control
Other available controls include FR (Flow Control), MA (Manual Control), EM (Electric Motor Control), HW/HM/HS/HD (Various Hydraulic Controls), and DS (Secondary Control for speed sensing).
3. How does the DR Pressure Control (Pressure Cut-Off) work?
The DR control maintains a constant system pressure by changing the swashplate angle. When the system pressure reaches the spring-set value on the DR valve, the control mechanism acts to reduce the pump's displacement, delivering only the flow required to maintain the set pressure. This functionality is sometimes referred to as "Pressure Cut-Off" in some pump literature. It's important to note that a system safety valve is still essential because the DR control's response is relatively slow compared to sudden pressure shocks; the safety valve handles transient pressure spikes.
4. What is the difference between DRG and DP control types?
Both DRG and DP are forms of constant pressure control, but they are designed for different applications:
  • DRG (Remote Pressure Control): Allows the pressure setpoint for the pump to be adjusted remotely via an external pressure control valve.
  • DP (Multi-Pump Parallel Pressure Control): Specifically designed for systems where multiple pumps work in parallel. It contains an additional element (a variable orifice, valve 5) that mechanically links to the swangle. This design automatically compensates for differences between pumps, ensuring they share the load equally and operate at the same swashplate angle when working together at the set pressure. The DP control has a larger control deviation (~6.5 bar) compared to DRG (~3 bar).
